Series ZYD Double-stage Vacuum Transformer Oil Filtration Machine

Series ZYD Double-stage Vacuum Transformer Oil Filtration Machine thumbnail-1
Series ZYD Double-stage Vacuum Transformer Oil Filtration Machine thumbnail-2
Series ZYD Double-stage Vacuum Transformer Oil Filtration Machine thumbnail-3
Series ZYD Double-stage Vacuum Transformer Oil Filtration Machine photo-1

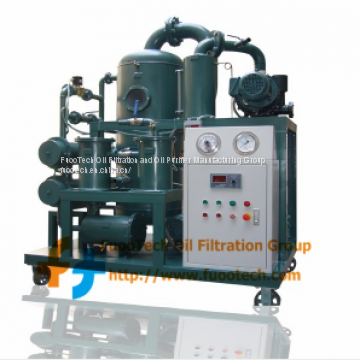

Series ZYD Double-stage Vacuum Transformer Oil Filtration Machine photo-2

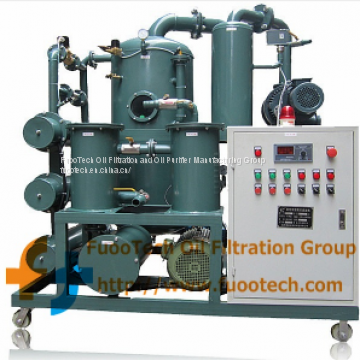

Series ZYD Double-stage Vacuum Transformer Oil Filtration Machine photo-3
US$ 1 - 2 MOQ: 1 Set
Key Specifications
Get Latest Price
Certification:
CE, ISO, WSF
After-sales Service Provided:
Engineers available to service machinery overseas
Weight:
1
Contact Supplier Request Quote Chat Now
FuooTech Oil Filtration And Oil Purifier Manufacturing Group
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai, Guangzhou, any other ports in China
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Certification CE, ISO, WSF
After-sales Service Provided Engineers available to service machinery overseas
Weight 1
As is well known the Transformer plays an important role in the generation, transmission and distribution of electrical energy. Under load the transformer, dissipates heat and the insulating oil acts as a coolant as well as an effective dielectric.
Due to the highly hygroscopic nature of the transformer oil, it absorbs moisture from windings, which leads to gradual deterioration of dielectric strength. Also there are some waste impurities, gas contents in the transformer oil which destroy the oil’s quality.
Series ZYD transformer oil purifier is a double stages vacuum oil purification system, comparing single stage vacuum oil puriifer, besides a rotary vane vacuum pump, ZYD machine installs one more booster roots pump vacuum system which speed up evacuation much faster. Series ZYD oil filtration machine not only provides regular oil purification/ reclamation such as degassing, drying and particulate removal, but also can remove acidity, sludge, carbon deposits, sulfur, and other soluble oil decay products and improve physical & chemical properties comparable to new transformer oil.
The doube stage vacuum transformer oil purifier adopts advanced vacuum chamber which has large area three-dimensional flash evaporation technique and remove water, gas, solids much quickly and completely. After purification by our Series ZYD transformer oil purifier, the oil breakdown voltage can reach up to 75KV.
Series ZYD oil purifier is particularly suitable for treating high-grade transformer oil, super-voltage transformer oil and new transformer oil. It can be used for filtration of more than 110V substation live line work onsite. Meanwhile, Series ZYD oil purifier can be used as independent vacuum source with functions of vacuum drying and vacuum oiling.
 Oil Result after Filtration
Moisture (Water Content)
≤ 5 PPM
Gas Content
≤0.01% (Vol)
Impurities Degree (Filtration precision)
≤ 5 micron (no free carbon)
Breakdown Voltage (Dielectric)
≥70 KV
Flash Point
≥145℃
Cleanliness
≤NAS 1638 Grade 6

features

  1. Duplex 3D stereo-evaporation, efficient oil film sprayer, eliminating the liquid water quickly, increasing separating size and separating time to ensure the dry-level and dielectric strength improving greatly.

  2. Double-stage vacuum system, strong power of vacuum evacuating

  3. Multi-stage precision filtration system, stainless steel materials filtration combined with molecular adsorption technologies

  4. Duplex-Stereo film evaporation technology, combined with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.

  5. Besides the common vacuum oil purifier's function of dewatering, degassing and eliminating particles, this machine can regenerate the seriously deteriorated oil by removing the polarity materials, such as the deep oxides, free carbon in the oil effectively. It can make the seriously deteriorated oil reach to the normal index like anti-oxides, acid-alkali water-solubility.

  6. Efficient carbon fiber infrared electric heating system, heating uniformity, less power consumption, safe, and reliable.

  7. Double-infrared liquid level sensor, pressure protective system to ensure machine operation easy and safely.

  8. Functions of live line work onsite, vacuum drying and vacuum oiling.

  9. Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.

  10. Especially applied to vacuum oiling and drying (Hot Oil Circulation / on-site Drying) for power transmission equipments which are over 110KV.

  11. Advanced dielectric Condenser devices and flow meter measuring the flow rate.

  12. Low maintenance cost and time, simple operation and maintenances.

  13. Based on different working needs, PLC, Fully enclosure, mobile trailer, explosion-proof, and other types can be designed.

Parameters
Model
Unit
ZYD-30
ZYD-50
ZYD-100
ZYD-150
ZYD-200
ZYD-250
ZYD-300
Flow Rate
L/H
1800
3000
6000
9000
12000
15000
18000
Working Vacuum Degree
MPa
-0.08 ～ -0.099
Working
Discharge Pressure
MPa
≤ 0.3
Temperature
Control Range
℃
20 ～ 80
Operation Temperature
℃
40 ~ 70 (65℃ is best)
Power Supply
380V, 50Hz, 3 phases (or as per your requirements)
Working hours
without Trouble
Hour
4000
Continuous Working Hours
Hour
150
Ambient Temperature
-25 ～ 55℃
Working Noise
dB（A）
65 ~ 90
Heating Power
(adjusted available)
KW
30
36
48
60
72
80
120
Total Power
KW
35.5
42
52.5
68
82
93
135
Inlet/Outlet
mm
φ25
φ32
φ42
φ50
φ50
φ60
φ60
Weight
Kg
600
700
1050
1150
1450
1600
1950
Dimension
Length
mm
1380
1610
1750
1850
1950
2050
2200
Width
mm
1020
1250
1350
1400
1500
1600
1750
Height
mm
1760
1950
2150
2200
2300
2400
2550
  Note:     1. The dimension and weight will be changed with changing of technical specs.
               2. All the specs can be customized according to client's requirements.

    For more info, pls don't hesitate to contact us.
