Series ZYD-M Mobile Trailer Mounted Vacuum Insulating Oil Treatment Plant

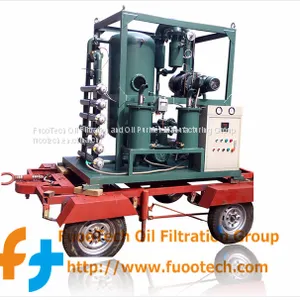

Series ZYD-M Mobile Trailer Mounted Vacuum Insulating Oil Treatment Plant thumbnail-1
Series ZYD-M Mobile Trailer Mounted Vacuum Insulating Oil Treatment Plant photo-1
US$ 1 - 2 MOQ: 1 Set
Key Specifications
Get Latest Price
Certification:
CE, ISO, WSF
After-sales Service Provided:
Engineers available to service machinery overseas
Contact Supplier Request Quote Chat Now
FuooTech Oil Filtration And Oil Purifier Manufacturing Group
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai, Guangzhou, any other ports in China
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Certification CE, ISO, WSF
After-sales Service Provided Engineers available to service machinery overseas
Series ZYD-M Mobile Trailer mounted type insulating oil treatment plant is mainly used for treating the unqualified transformer oil, switch oil, mutual inductor oil in various large power equipments which are above 110 kV at outdoors.

 Series ZYD-M is developed on the basis of Double-stage vacuum transformer oil filtration machine Series ZYD. It has the same function of quickly remove liquid water, trace water, gas, particles as well as acetylene, hydrogen, methane and other harmful ingredients from oil effectively to improve oil’s dielectric strength, effectively making sure electrical equipment working safely and normally.

 Series ZYD-M can also be used as independent vacuum source with functions of vacuum drying, vacuum pumping and vacuum oiling like ZYD Series.
 This oil treatment plant is made in mobile type with Mobile Trailer (single-axle and double-axle are available as per need) which can be mounted on motor vehicle to move to any outside fields by public roads to proceed the treatment works at outdoors.
 Oil Result after Filtration
Moisture (Water Content)
≤ 3 ~ 5 PPM
Gas Content
≤0.01% (Vol)
Impurities Degree (Filtration precision)
≤ 3 ~ 5 micron (no free carbon)
Breakdown Voltage (Dielectric)
≥70 KV
Flash Point
≥145℃
Cleanliness
≤NAS 1638 Grade 6
 Features


  1.  Mobile (trailer) type, single-axle and dual-axle are optional, move to outside fields easily.

  2. Installation of car tyres, Bridge shock absorber, braking system and steel welding of entire trailer guarantee running safely.

  3. Duplex 3D stereo-evaporation, efficient oil film sprayer, eliminating the liquid water quickly, increasing separating size and separating time to ensure the dry-level and dielectric strength improving greatly.

  4. Multi-stage precision filtration system, high quality of stainless steel filters’ filtration combined with molecular adsorption technologies.

  5. Double-stage vacuum system, high vacuum pressure and high flow rate, strong power of vacuum evacuating

  6. Duplex 3D Stereo- evaporation technology combined with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.

  7. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.

  8. Double-infrared liquid level sensor, pressure protective system to ensure machine operation easy and safely.

  9. Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak.

  10. Specially applied to proceed vacuum oiling and drying (Hot Oil Circulation / on-site Drying) for electrical power equipments which are over 110KV.

  11. Low maintenance cost and time and Advanced dielectric Condenser devices.


Parameters
Model
Unit
ZYD-M-30
ZYD-M-50
ZYD-M-100
ZYD-M-150
ZYD-M-200
ZYD-M-250
ZYD-M-300
Flow Rate
L/H
1800
3000
6000
9000
12000
15000
18000
Working Vacuum Degree
MPa
-0.08 ～ -0.099
Working
Discharge Pressure
MPa
≤ 0.3
Temperature
Control Range
℃
20 ～ 80
Operation Temperature
℃
40 ~ 70 (65℃ is best)
Power Supply
380V, 50Hz, 3 phases (or as per your requirements)
Working hours
without Trouble
Hour
4000
Continuous Working Hours
Hour
150
Ambient Temperature
-25 ～ 55℃
Working Noise
dB（A）
65 ~ 90
Heating Power
(adjusted available)
KW
30
36
48
60
72
80
120
Total Power
KW
35.5
42
52.5
68
82
93
135
Inlet/Outlet
mm
φ25
φ32
φ42
φ50
φ50
φ60
φ60
Gross Weight (KGS)
Machine Part
600
830
1190
1350
1490
1600
1950
Trailer Parts
380
430
500
570
640
700
800
Dimension
L×W×H (mm)
Machine Part
1450
×1050
×1860
1710
×1350
×2150
1900
×1420
×2190
1940
×1480
×2220
2120
×1500
×2240
2150
×1700
×2350
2300
×1850
×2460
Trailer Parts
2700
×1760
×1010
2760
×1860
×1050
2900
×1900
×1060
3010
×1920
×1060
3020
×1940
×1070
3050
×1980
×1090
3090
×2000
×1120
 Note:     1. The dimension and weight will be changed with changing of technical specs.
                   2. All the specs can be customized according to client's requirements.

    For more info, pls don't hesitate to contact us.
