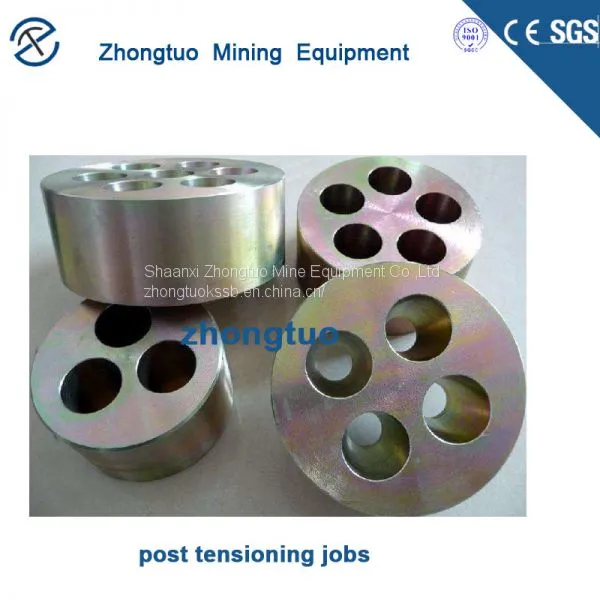

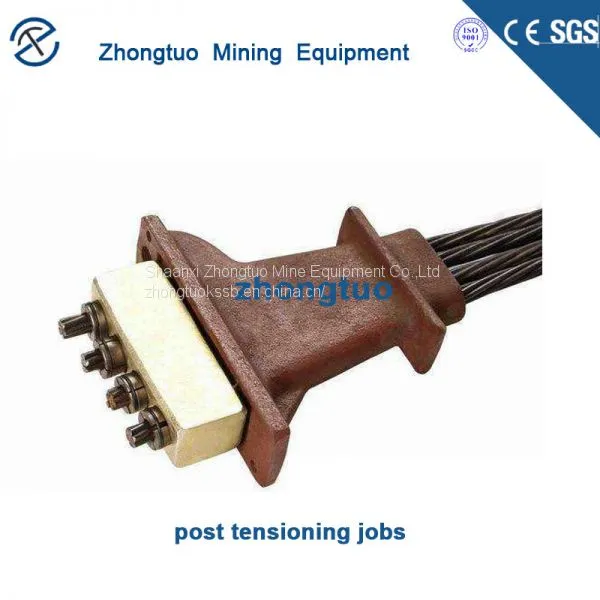

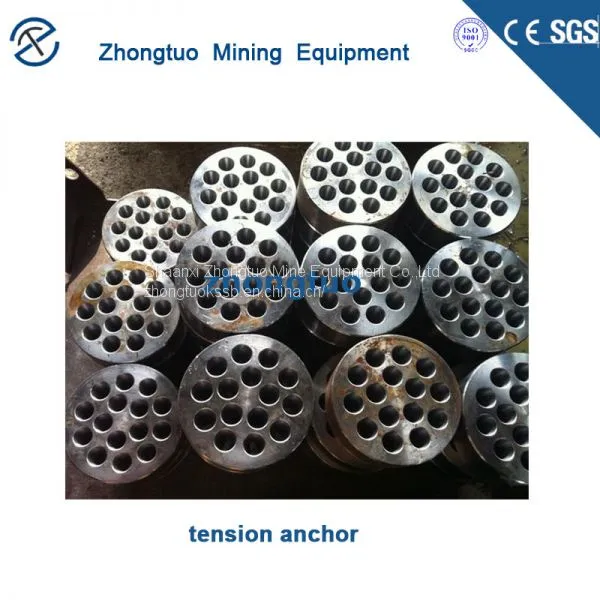

Post Tension Anchor Heads (Wedge Plates) for Bridge Construction
Introduction of post tension anchor:

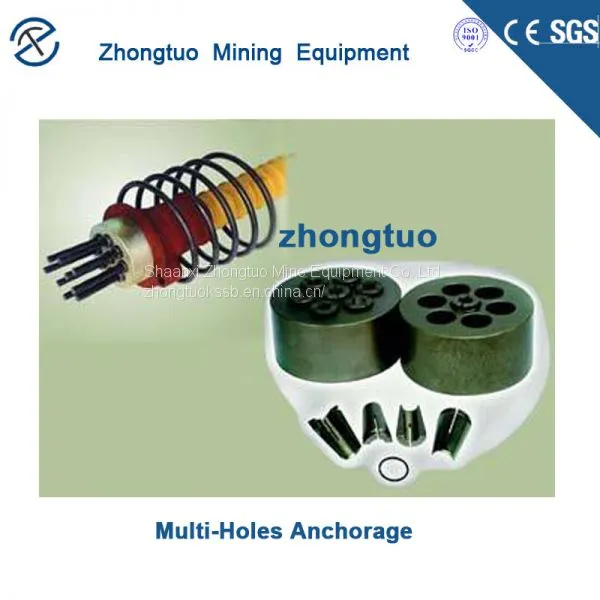

Multi strands anchor system are composed of anchor block(anchor head), wedges, anchor bearing plate, spiral reinforcing rings. It can used to lock the steel strand wires on/under classes of 2000Mpa standard strength,which is usually in diameters of 12.7mm /12.9mm/15.2mm/15.7mm.
It has been verified by pratice that various type of YM anchor also can be used for the different kinds of strand wires produced according to ASTM/BS/JIS/JIG/AS and other international standards respectively only if its technical parameters shall mary the related detail materials.
1). Type: Single-hole, Multi-hole; Circular, Flat.
2). Parts: Anchor Ring/Plate, Wedge, Base Plate etc.
3). Have a high anchor efficiency and very good performance.
4). We can manufacture all kinds of multi-Holes Anchorage and prestressed equipment according to your requirement and drawings.
Product data for flat anchor of post tensioning jobs:
Model |
flat anchor plate |
flat bellows |
flat base plate |
flat spiral spring |
|||||||
A |
B |
C |
D |
E |
F |
L |
G |
H |
n |
t |
|
BM15(13)-2 |
80 |
46 |
52 |
22 |
160 |
70 |
140 |
160 |
100 |
5 |
45 |
BM15(13)-3 |
115 |
46 |
65 |
22 |
180 |
70 |
150 |
180 |
100 |
5 |
45 |
BM15(13)-4 |
150 |
46 |
74 |
22 |
220 |
80 |
210 |
220 |
100 |
5 |
45 |
BM15(13)-5 |
185 |
46 |
90 |
22 |
260 |
80 |
270 |
260 |
100 |
5 |
45 |
Product data for Round anchor of post tensioned anchors:
Spec |
wedge anchor |
Cast trumpet |
Duct |
Stressing jack |
|
φW*W |
φ T*T* |
Fixing hole of cast trumpet |
Inner Dia |
||
YM15-1 |
49*48 |
80*80*δ14 |
/ |
/ |
YDC260Q |
YM15-2 |
86*50 |
131*85*58 |
φ 112 |
φ 50 |
YCW100C |
YM15-3 |
91*50 |
131*85*58 |
φ 112 |
φ 50 |
YCW100C |
YM15-4 |
102*50 |
131*100*63 |
φ 123 |
φ 55 |
YCW100C |
YM15-5 |
112*50 |
152*125*63 |
φ 133 |
φ 55 |
YCW150C |
YM15-6 |
126*53 |
175*140*73 |
φ 145 |
φ 70 |
YCW150C |
YM15-7 |
126*53 |
175*140*73 |
φ 145 |
φ 70 |
YCW150C |
YM15-8 |
136*55 |
185*140*83 |
φ 160 |
φ 80 |
YCW250C |
YM15-9 |
146*55 |
195*196*83 |
φ 170 |
φ 80 |
YCW250C |
YM15-10 |
156*58 |
205*196*93 |
φ 180 |
φ 90 |
YCW250C |
YM15-11 |
166*58 |
215*246*93 |
φ 190 |
φ 90 |
YCW250C |
YM15-12 |
166*60 |
215*246*93 |
φ 190 |
φ 90 |
YCW250C |
YM15-13 |
170*63 |
215*275*93 |
φ 190 |
φ 90 |
YCW400C |
YM15-14 |
176*65 |
225*228*105 |
φ 200 |
φ 90 |
YCW400C |
YM15-15 |
186*68 |
265*267*105 |
φ 210 |
φ 90 |
YCW400C |
YM15-16 |
196*70 |
245*330*105 |
φ 220 |
φ 90 |
YCW400C |
YM15-17 |
196*73 |
245*360*105 |
φ 220 |
φ 90 |
YCW400C |
YM15-18 |
206*75 |
255*288*115 |
φ 230 |
φ 100 |
YCW400C |
YM15-19 |
206*75 |
255*288*115 |
φ 230 |
φ 100 |
YCW400C |
YM15-20 |
226*80 |
255*288*135 |
φ 250 |
φ 120 |
YCW500C |
YM15-21 |
226*80 |
255*288*135 |
φ 250 |
φ 120 |
YCW500C |
Applications of tension anchor:
1). For Buildings: Housing, Commercial Buldings, High Rise Buildings.
2). For Municipal Engineering: Railway, Highway, Over Head Fast Speed Way, Metro Way, High-speed Railway, etc.
3). For Projects: Mining, Piling, Foundation, Slope and Rock Reinforcement, Hydropower Station, Anchoring Engineers, Water Conservancy Project, Oil or Gas Tank, etc.
