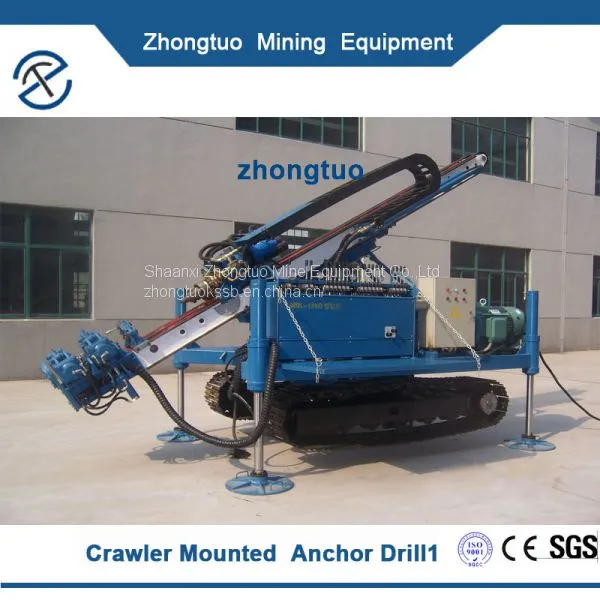

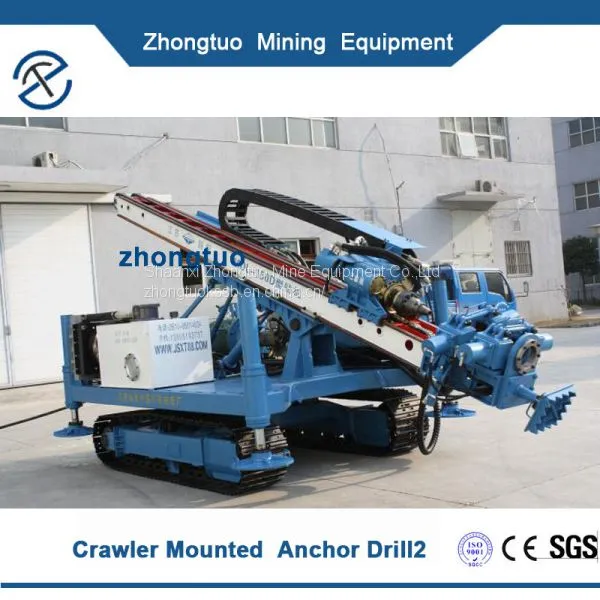

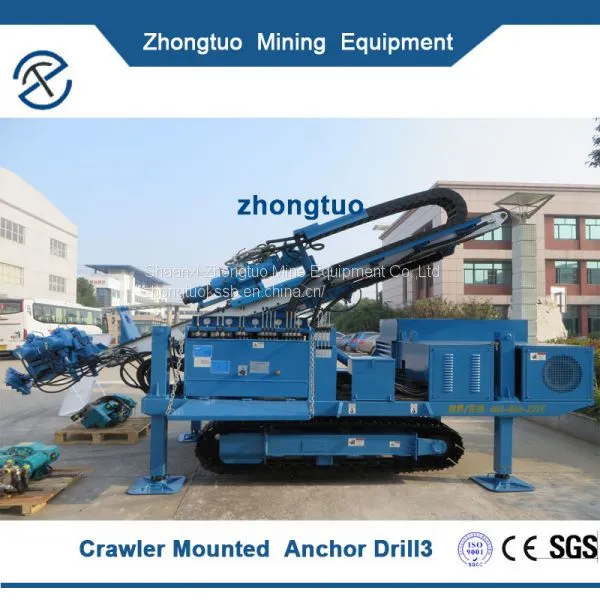

Description of Crawler Mounted Anchor Drilling Rig:
1. This 150D is a kind of full hydraulic power head anchor crawler drilling rig . Its drilling depth is 130-170m, and drilling diameter 150-250mm.
2. The crawler drill rig is mainly applied to urban subway, high-rise buildings, airport, ground source heat pump and other deep foundation pit for anchoring, jet grouting and dewatering.
3. In addition, this 150D anchor crawler drilling rig is stable, efficient , and able to drill complex layers and deal with accidents.
4. The hydraulic clamp & wrench device enormously decreases the assistant time and also reduces the intensity of operating work..
5. The 150D crawler mounted anchor drilling is just applied to the rock and broken layer construction.
Product parameters of Hydraulic anchor drill :
Drilling diameter |
ф150-ф250(mm) |
Drilling depth |
130-170（m） |
Final hole diameter |
75mm |
Drill pipe diameter / casing diameter |
Ф73、ф89、ф102、ф114(mm) |
Drilling angle |
0-90(° ) |
Rotator output speed |
10/20/30/35/40/60/65/70/85/130/170(r/min) |
Rotator Output Torque |
7500(N.m) |
Rotator travel |
3400(mm) |
Rotator lift force |
70(kN) |
Rotator lift speed |
0-5 adjustable /7/23/30(m/min) |
Rotor pressure |
36(kN) |
Rotary press speed 0-10 adjustable |
0-10 adjustable /14/46/59(m/min) |
Walking way |
crawler walking |
Climbing angle |
25(° ) |
Crawler ground pressure |
36(kpa) |
Walking speed |
20(km/h) |
Rotary mode |
the whole machine manual rotation (automatic rotation optional) |
Rotary structure |
slewing bearing |
Positioning |
Positioning Pins |
Input power (motor) |
55+18.5(KW) |
Shipping status (degrees x width x height) |
5400x2100x2000(mm) |
Weight |
6000(kg) |
Applications of Small-sized drilling rig:
1. Urban subway, high-rise buildings, airport, ground source heat pump and other deep foundation pit for anchoring.
2. Jet grouting and dewatering.
3. Crawler Mounted Anchor Drill can be used for drilling geothermal hole and well.
4. The blast hole,the anti-floating anchoring hole .
