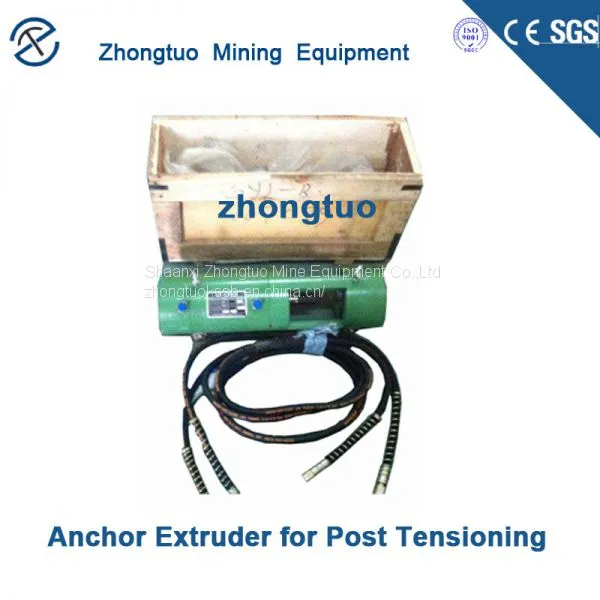

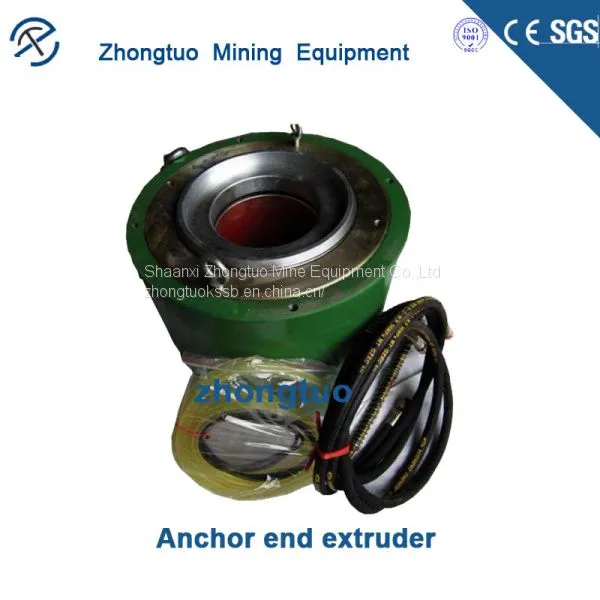

The GYJ-B Anchor end extruder is P in the extruded P type anchorage system
The special equipment for type anchorage has the advantages of simple operation and light weight. The GYJ extruder is a special equipment for extruding the P type anchorage in the P anchorage system. The device has the advantages of simple operation and light weight.

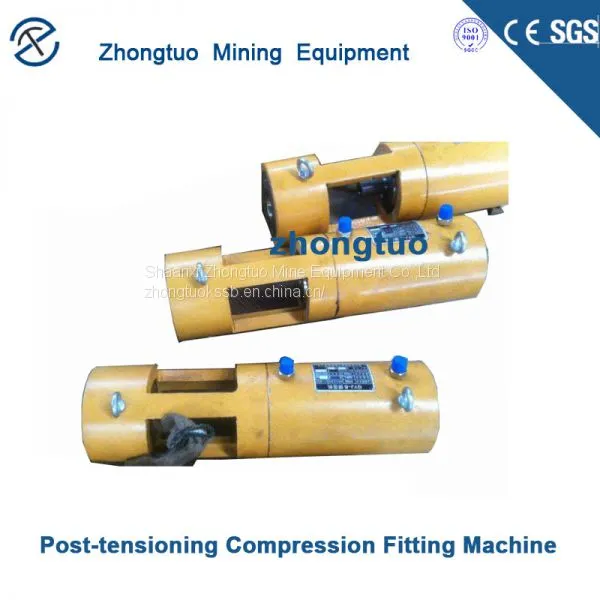

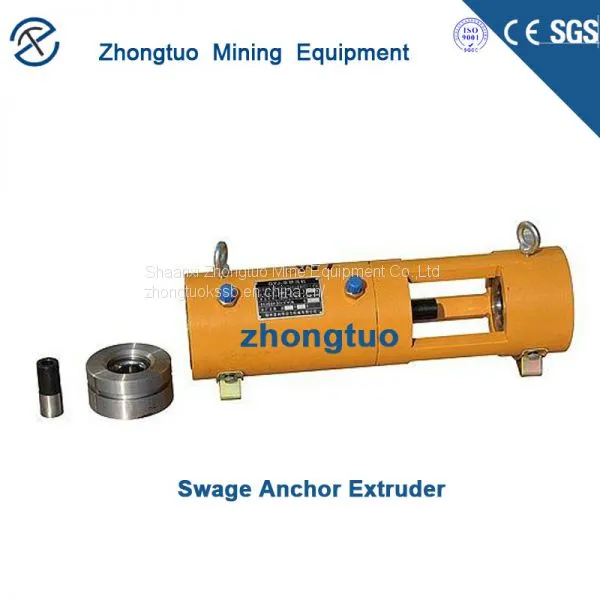

This Swage Anchor Extruder is suitable for the production of anchorage head in prestressing tendons, and is a special tool for extruding anchorage.

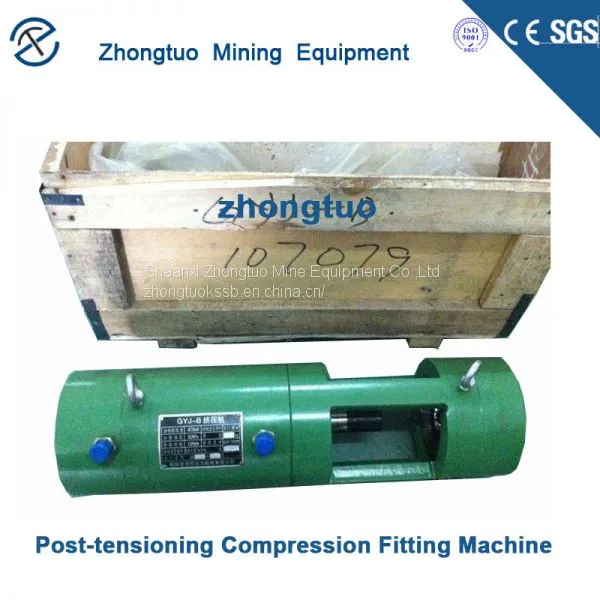

Technical performance parameter of GYJB50-150 Anchor Extruder for Post Tensioning:
|
Nominal extrusion pressure KN
|
519
|
The piston extrusion surface M
|
1.039X10
|
|
Nominal oil pressure Mpa
|
50 |
Return piston area square meters
|
4.948X10
|
|
Extrusion stroke mm
|
150 |
Quality kg
|
43 |
|
Oil pump
|
ZB-500
|
Shape size mm
|
148X545 |
GYJ series of Compression Fitting Machine is divided into GYJB type and GYJ type solid core two.
Processing steps and precautions of P type anchorage tendons
When the prestressing steel strand is installed with the extrusion sleeve, the steel strand is first fixed according to the predetermined length. After the reverse treatment is applied, the extrusion spring and the extrusion sleeve are inserted into the extruder, and then extruded on the extruder.
The process of extrusion processing;
1 connect the extruder to the oil pump and connect the power supply.
2 apply the wetting grease to the extrusion die.
3 the extrusion spring is put into the steel strand and through the extrusion die of the extruder together.
4 extruding sleeve on the extrusion spring coat of the steel stranded wire.
The oil pump supply oil to the Post-tensioning Compression Fitting Machine and squeezes the extruding sleeve through the extrusion die. It is the extruding sleeve which is fined and nested on the steel strand.
Matters needing attention
By extrusion through extrusion mode, the highest oil pressure should be between 25-38Mpa.
After extruding, it is required that the bottom and the steel strand be nested tightly, and the extrusion spring should be embedded in the extruding sleeve and the steel strand.
The length and outer diameter of the extruded sleeve should be in accordance with the manufacturer's given value, and the outside should be smooth and no crack.
