Prestressed Concrete Post tensioning PC Strand Pusher Machine
Prestressing Concrete Strand Pusher Machine for Bridge Post-Tensioning
Description of strand pusher machine:

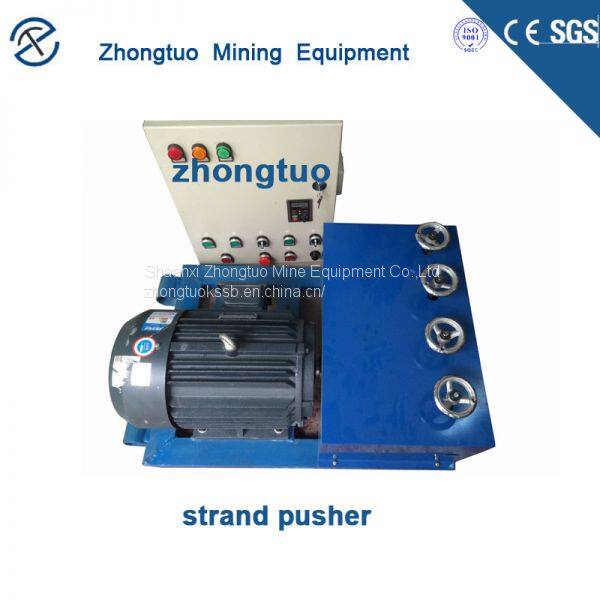

PC strand pusher machine
1. LS strand pusher machine can push oc strand continuously .
2. It has the features of easy operation, reliable performance, efficiency significantly.
3. The machine reduces the labour, and widely used for large-scale bridges, and constitutive objects.
4. High performance with good quality
5. It is the main tool of through strand in building bridges and large building with Prestressing work.

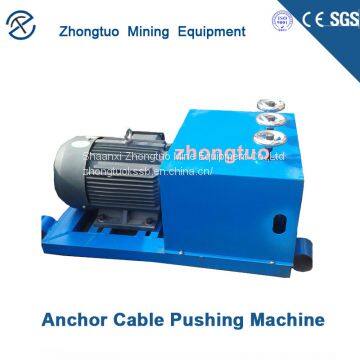

Features of Anchor Cable Pushing Machine:
1. Speed can be adjustable as per work condition needs.
2. The strand can be move towards or back under remote control.
3. Saving labour: it is automatic, do not need much labour .
4. Strong pushing and backing ability.
5. Simple operation with easy maintenance.
6. Good quality with best price.
Technical data of Post-tensioning Strands Pusher Machine:
Model | Diameter of pc strand | Distance of pushing | Voltage | Power | weight | Size |
of motor | ||||||
mm | m | v | kw | kg | cm | |
LS-4 | 12 to 16 | 50 | 380/220 | 4 | 120 | 55×40×24 |
LS-5.5 | 12 to 16 | 150 | 380/220 | 5.5 | 180 | 64×44×24 |
LS-7 | 12 to 16 | 200 | 380/220 | 7 | 230 | 95×44×40 |
Method of use of post tension strand pusher:
1, before starting preparations
(1) check the electrical lines are in good condition, check the location of oil in reducer.
(2) check the motor rotation direction is consistent with the arrow mark, the machine direction.
(3) the power supply is switched on, to determine a good reversible debugging.
2, the normal work
(1) will play good shelf steel hinge line from machine line inserted into the mouth, to move into the line button switch, the steel hinge line slowly penetrates into the machine, along the catheter into the reserved channel to the other end penetrates reach reserved tension size, with a hand-held sand turbine cut off.
(2) when it is not up to the transmission distance, can adjust machine plexus wheel pressure spring screw to work the required date, but can not be adjusted too tight, so as not to run when intensified pressure wheel wear, reduce the using life.
(3) work, pay attention to the operation is normal, when found any fault, should immediately stop, to identify the reasons for troubleshooting after restart.
