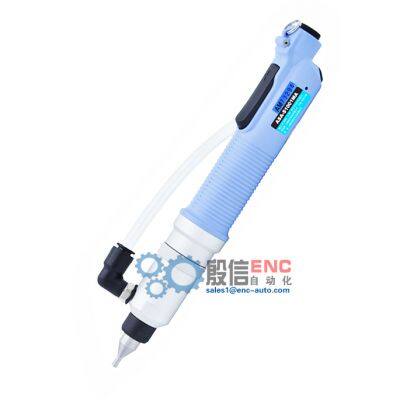

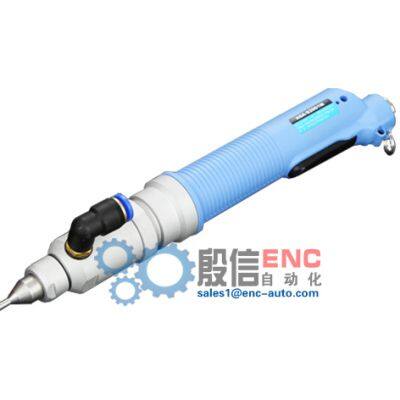

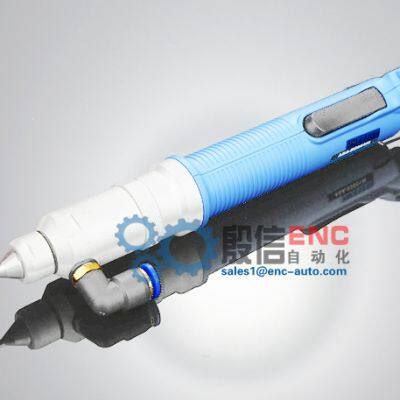

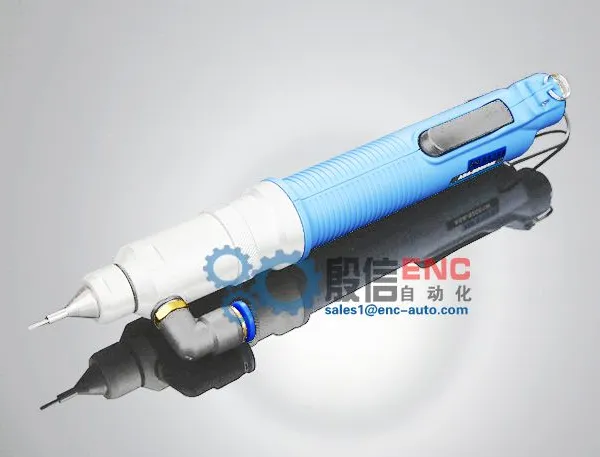

Suction type electric screwdriver： Th electric screwdriver owns the suction components,make it possible that sucking the screw in plastic,copper,silver etc.At the same time,It can also meet some screw with bigger nut or gasket but shorter thread.So it is widely used in the table screw fastening machine.
1) The mini screwdriver is with Swiss brushless motor, So no spark, no carbon dust.
2) Soft start-up and low inertia decrease the looseness rate of screw fastening.
3) Body diameter Ø26mm,overall length 158mm and weight 187g,The most compact electric screwdriver in the world.
4) Large range of torsion adjustment of 0.15~6.0kgf.cm².
5) Permits continue working for 20,000 hours(about 10 years) at least,The service life if the contact point withstands 10 million on and off contacts.
6) Passed SGS clean room class-10 test.Can be used in the 5C workshop.
7) Meet the screw which is smaller than 3mm，Especially suitable for mobile phone, laptop, tablet and so on.
Model & Specification: Suffix “A”(Vacuum pick up type) | |||||||
Model |
Power controller |
Working vol. |
Torque range |
Speed |
Screwdriver bits |
Applicable screw(mm) |
|
Lever type |
(DCV) |
(kgf.cm²) |
(rpm)±10% |
Machine thread(Ø) |
Tapping thread(Ø) |
||
ASA-S1000MA |
APS3 |
9~30 |
0.15~1.0 |
150~300 |
Ø4、Ø5 |
1.0~1.8mm |
0.6~1.4mm |
ASA-S2000MA |
APS3 |
9~30 |
0.3~2.0 |
650~1000 |
Ø4、Ø5 |
1.0~2.2mm |
1.0~2.0mm |
ASA-S2500MA |
APS3 |
9~30 |
0.4~3.0 |
450~700 |
Ø4、Ø5 |
1.0~2.2mm |
1.0~2.0mm |
ASA-3000MA |
APS3 |
9~30 |
0.5~5.0 |
400~600 |
Ø4、Ø5 |
1.0~2.6mm |
1.0~2.3mm |
ASA-3000MSA |
APS3 |
9~30 |
0.5~5.0 |
700~1000 |
Ø4、Ø5 |
1.0~2.6mm |
1.0~2.3mm |
ASA-4000MA |
APS3 |
9~30 |
1.0~6.0 |
400~600 |
Ø4、Ø5 |
1.4~3.0mm |
1.4~2.6mm |
ASA-4000MSA |
APS3 |
9~30 |
1.0~6.0 |
700~1000 |
Ø4、Ø5 |
1.4~3.0mm |
1.4~2.6mm |

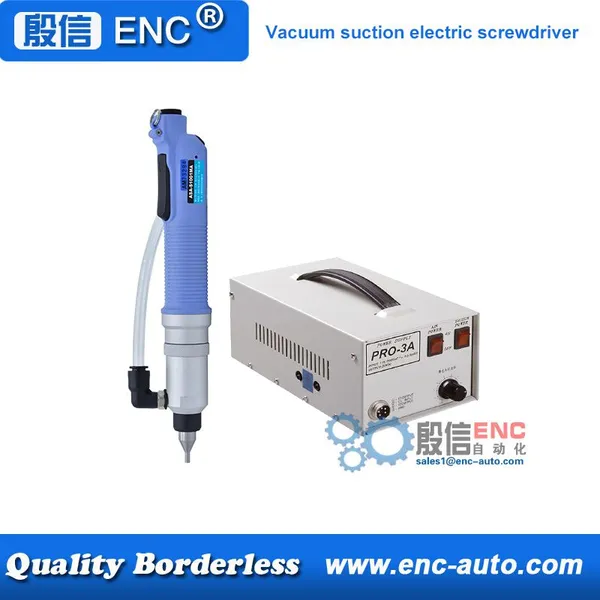

Available controller: | |||||||
Outline |
Model |
Working vol. |
Output vol. |
Dimension |
Weight |
Load current |
Safety certificate |
(ACV) |
(DCV) |
(mm) |
(g) |
(A) |
|||
|
APS3 |
100~240 |
9~19
|
200x120x94 |
2998 |
Max.4.5 |
CB,CE,UL, CCC,ROHS,REACH |
