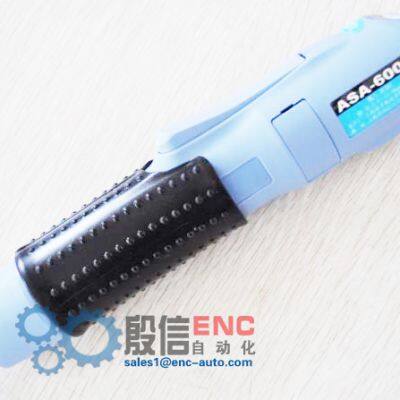

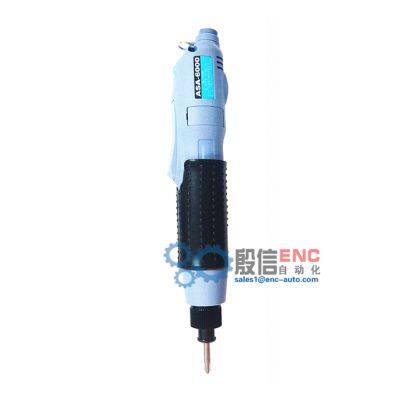

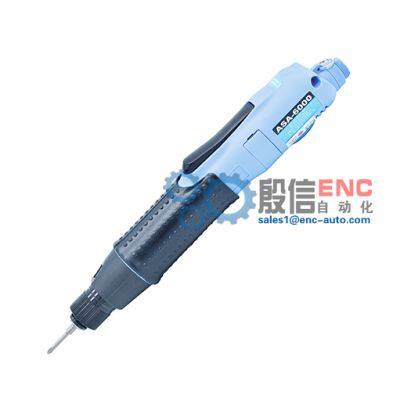

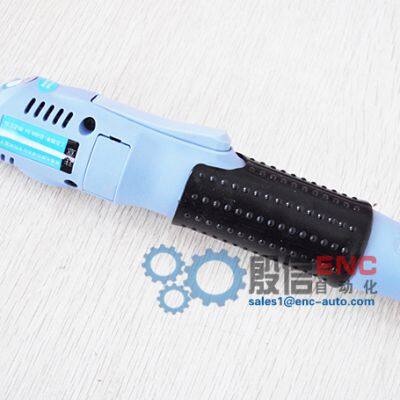

Medium type full automatic electric screwdriver：This electric screwdriver adopts high performance motor,automatic design,long service life.Provide two versions of low speed and high speed for customer to choose,the torsion output maximum is 25 kg (2.5 N.m),compared with the small electric screwdriver,its torque range is bigger,so its applicable scope is more wide.
1) Cheaper price and perfect quality,extensive application area.
2) The high efficiency motor gives unsurpassed durability.
3) Can also reduce the business cost effectively.
4) The excellent gold plating switch can raise the contact spot life up to 10 million times and reduce the maintenance cost.
5) We supply two kinds start method,Lever start type and push start type. You can choose base on on your actual requirement.
Model & Specification: Suffix “PS”(Press start type) | ||||||||
Model |
Power controller |
Working vol. |
Torque range |
Speed |
Screwdriver bits |
Applicable screw(mm) |
||
|
Lever type, press type |
(DCV) |
(kgf.cm²) |
(rpm)±10% |
Machine thread(Ø) |
Tapping thread(Ø) |
|||
ASA-6000 , ASA-6000PS |
APM-301C AM-85 |
9~30 |
1.5~12 |
650~1150 600~1000 |
Ø5、SH1/4 |
2.0~3.0 |
2.0~2.6 |
|
|
ASA-6500 , ASA-6500PS |
APM-301C AM-85 |
9~30 |
4.0~20 |
550~850 550~850 |
Ø5、SH1/4 |
2.6~4.0 |
2.3~3.5 |
|
ASA-6800 , ASA-6800PS |
APM-301C AM-85 |
9~30 |
5.0~25 |
450~700 450~700 |
Ø5、SH1/4 |
3.0~5.0 |
2.6~4.0 |
|
Available controller: | |||||||
Outline |
Model |
Working vol. |
Output vol. |
Dimension |
Weight |
Load current |
Safety certificate |
(ACV) |
(DCV) |
(mm) |
(g) |
(A) |
|||
|
APM-301C |
100~240 |
9~30 |
172x84x46 |
380 |
Max.4.5 |
CB,CE,UL, CCC,ROHS, REACH |
|
AM-85 |
100~240 |
9~30 |
172x84x61 |
450 |
Max.4.5 |
CB,CE,UL, CCC,ROHS, REACH |
