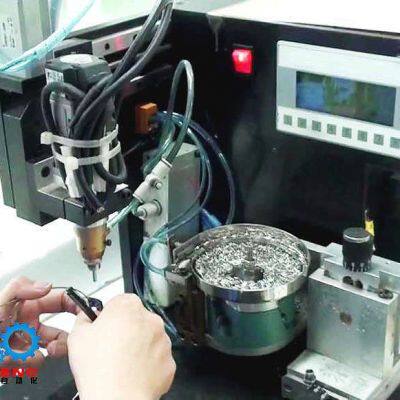

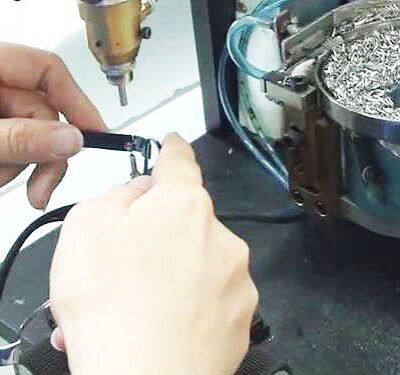

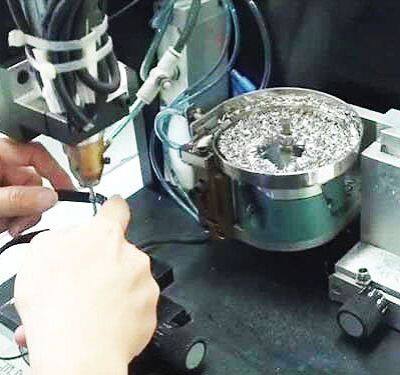

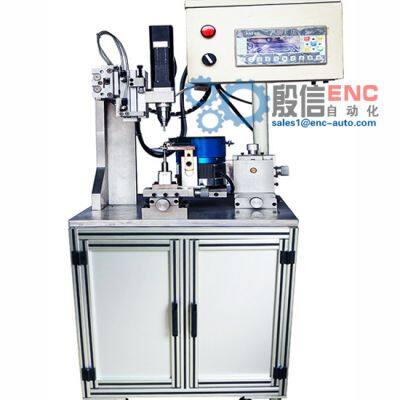

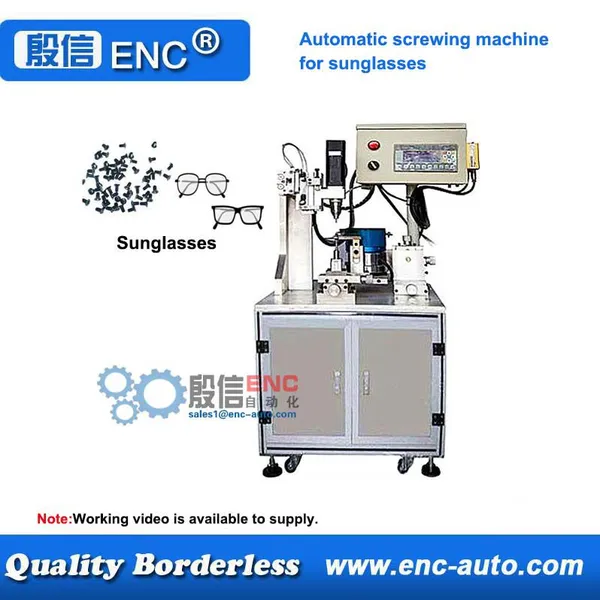

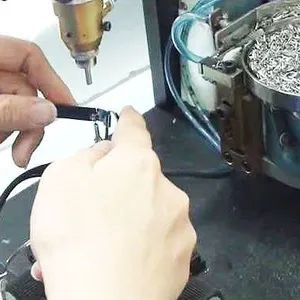

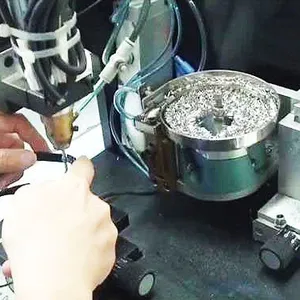

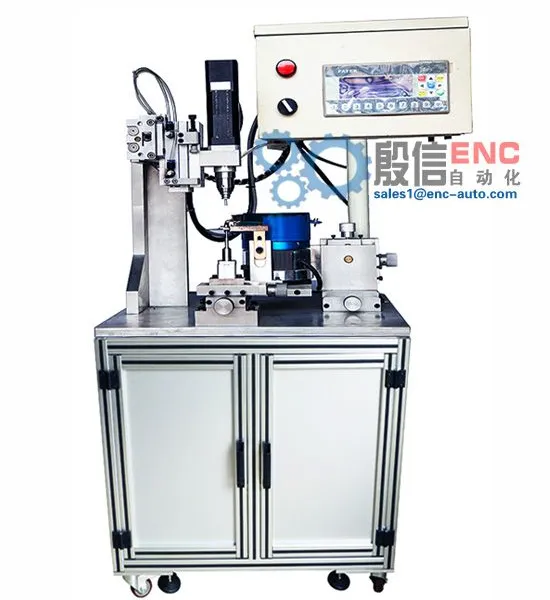

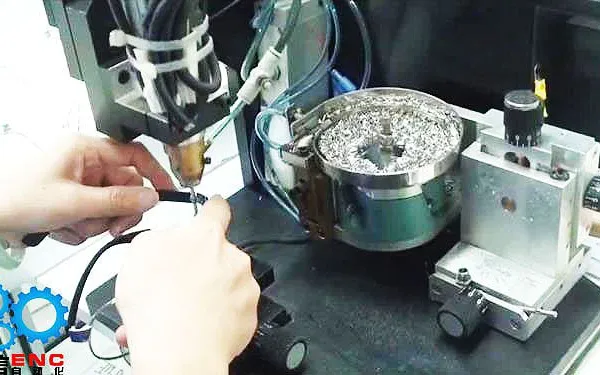

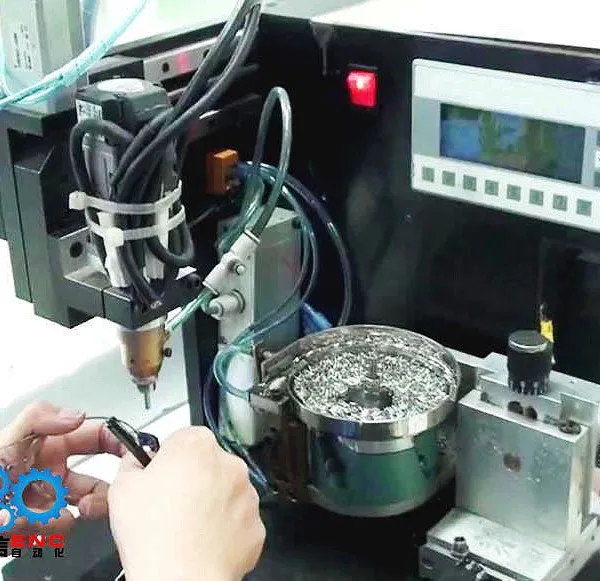

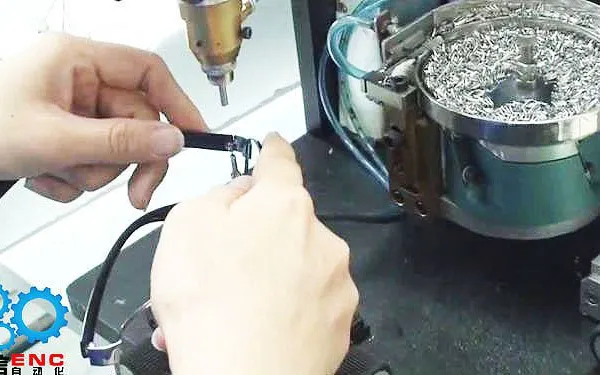

Automatic screw machine for sun glasses： This machine can feed the screw,screwing automatically,at the same time,it can monitor the screwing process.Its most obvious advantage is screwing several screws at the same time,so it can imprve the efficiency of screwing exponentially.
1) Combined with the high quality electric screwdriver(From Taiwan China or Japan) or motor.
2) The screw receiver nose can be designed base your screw,It can ensure the smooth and stable operation.Of course,It can supply you a perfect experience of screw assembly.
3) We can supply multi-spindles type,It can be 2 spindles,3 spindles,4 spindles,5 spindles and more.It allows 64 spindles Max.
4) Huge screw feeder,It can hold 2000~10000 pieces screw.
5) Multi-spindles can be used with rotation table and sliding table to improve the efficiency of screw fastening.
6) The machine owns a intelligent brain,It can offer many special function as the following:Quantity statistics(OK amount and NG amount),thread slip detection,floating detection,screw omission detection and son on.
Item/Model |
ENC-SA100S |
Torsion Max. (kg/cm²) |
2 |
Power supply |
110~240ACV,50/60Hz |
Driver type |
ASA electric screwdriver (For automation application only) |
Working pressure (kg/cm²) |
5.5(±0.5) |
Working efficiency (Pcs/Min.) |
30~35 |
Operation language |
Chinese/English |
Screw feeding pattern |
Vibration bowl |
Applicable screw (mm) |
ST1.64*5.9 |
Fastening spindles |
Single spindle |
Screw/Blade feeding speed (Pcs) |
55~60 |
Capacity of screw feeder (Pcs) |
4000~5000 |
Dimension (mm) |
860x800x1500 |
Net weight (kg) |
140 |
Application area: | |
Sunglasses,Goggle,Myopic glasses,Presbyopic glasses etc. | |
For the working video,Please check my official webpage as below:
/English/Product/046513198.html (Please copy the link into your browser`s address bar).
