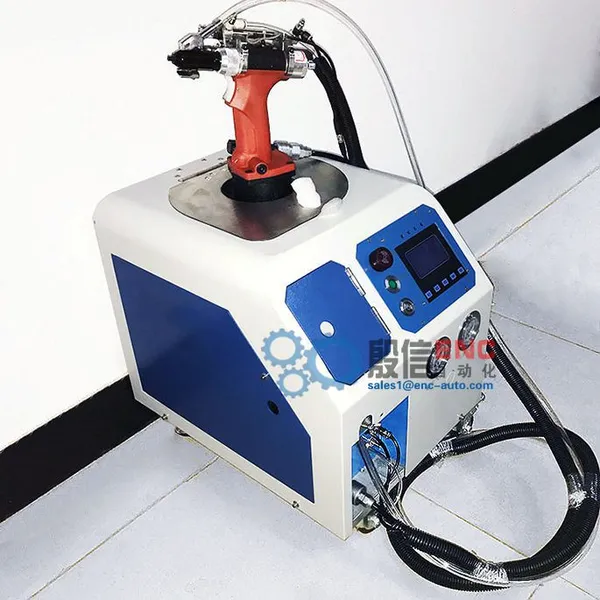

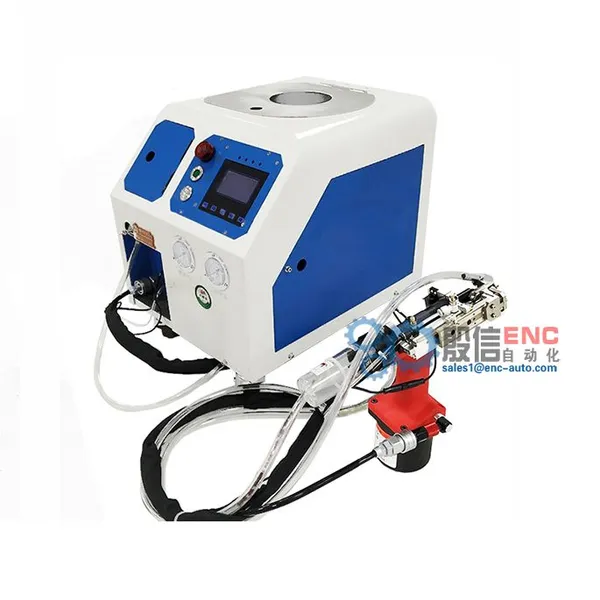

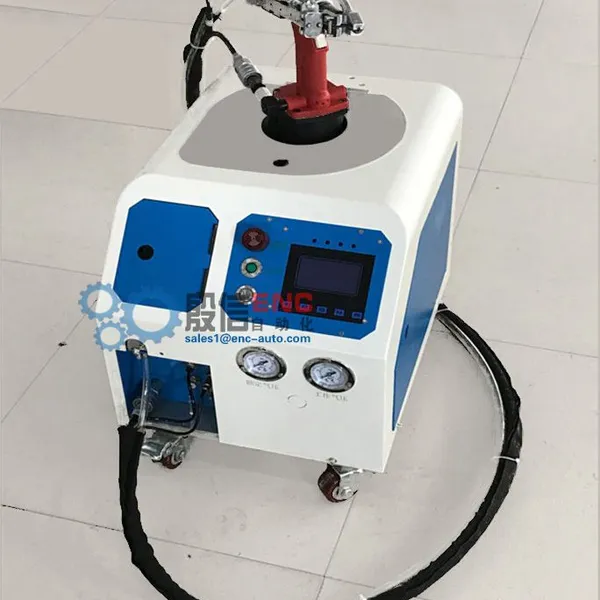

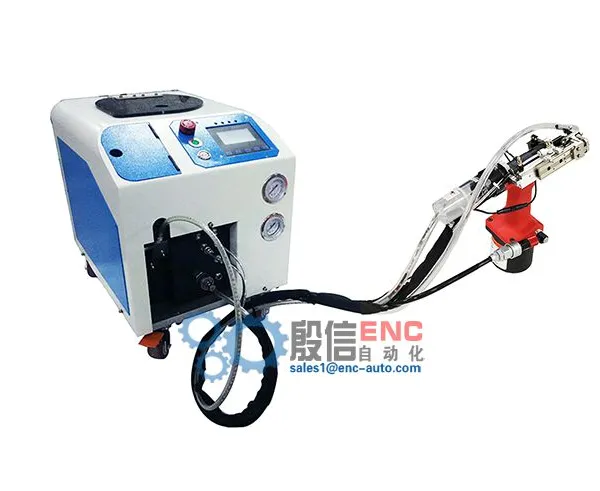

Automatic rivet machine： This rivet machine can feed the rivet,rivet,recycle the mandril automatically,Compared with the traditional rivet gun,it can feed the rivet by itslf,So it can save much time during working.For the requirement with mass riveting,It is a good option for you.
1) Can meet all kinds of rivets,such as aluminum,copper,iron,stainless steel,etc.
2) Humanized design,to make the workers more comfortable in the process of operating the machine.
3) Patent design,Feed fast,stably,rare stuck.
4) Can be grafted together with other automatic equipment,better meet the demand of some special riveting.
5) Intuitive menu,through the navigation and function keys to guide you operating the machine.
6) Can use the screen to set up the machine parameters.
7) Mandrel can be recycled by the vacuum system.
8) Huge store bin,For different size rivet,It can held rivet 1800~5500 pcs.
9) Can meet the Max. length 25mm,If the length of rivet is more than 25mm,We can supply you the customed model.
10) Universal power supply:AC110~240V,50/60Hz.
Item |
Specifications |
||
Model |
ENC-N6000 |
ENC-N7000 |
ENC-N8000 |
Rivet diameter (mm) |
①Alu & copper : ∅2.4~∅6.4;②Steel : Up to ∅6;③Stainless steel : Up to ∅5 |
||
Head diameter (mm) |
∅7 Max. |
∅8 Max. |
∅9 Max. |
Rivet mandrel length (mm) |
27 |
30 |
30 |
Pull force (N) |
4850 |
6550 |
8000 |
Air consumption (L/Min.) |
70 |
80 |
90 |
Efficiency (S/Pcs) |
1.5 |
2.0 |
2.0 |
Air pressure (kg/cm²) |
5.5±0.5 |
||
Power supply |
90~240 ACV,50~60Hz |
||
Gun weight (kg) |
1.2 |
1.3 |
1.8 |
Feeding pattern |
Vibration bowl |
||

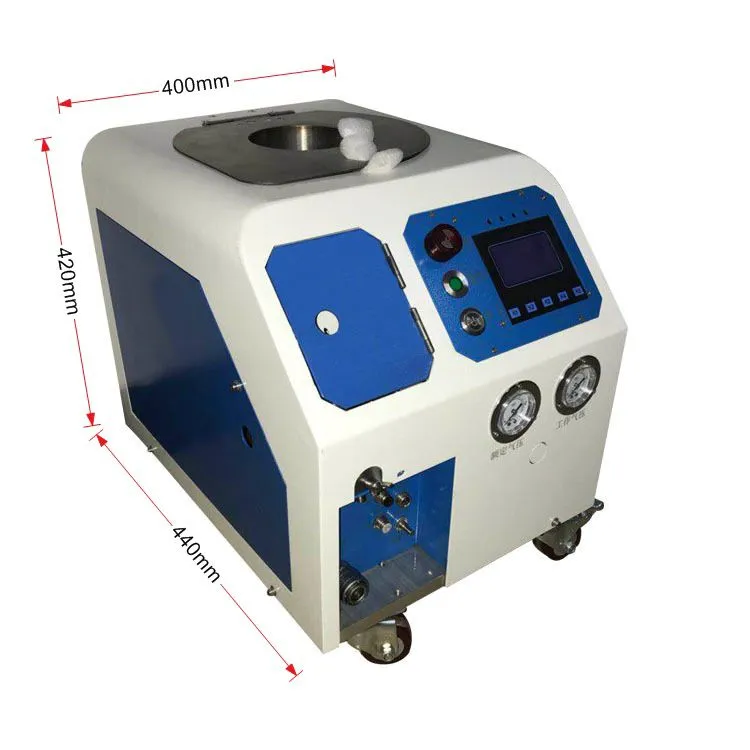

Overall size (mm) |
440x350x420 |
440x350x420 |
440x400x420 |
Weight (kg) |
40 |
42 |
45 |
1.Please turn off the electric power and air before fault handling and comaintance,In case of the accident.
2.Please never use this machine near the strong emi source.
3.During using this machine,Please keep it horizontal,And brake its four wheels to preveting machine jittering and sliding;Please place this machine on the ground,And never place it on the high position.
4.Please clear the machine termly after usage,You can use the dust collector or cleaning cloth to clean the dust and scrap in the vibration bowl.Please never use the air gun to blow the dust or scrap directly,For fear that the dust or scrap hurt your eyes,Or stick in the narrow space of machine to affact the machine function.
5.If need to move this machine,Please do it by more peoples,For fear that it hurt people or damage machine.
6.Other items have not been clarified in this manual,Please contact our company before do it.
7.If there is any upgrade with this machine in the future,No future notice is required.If any more requirement,Please contact us.

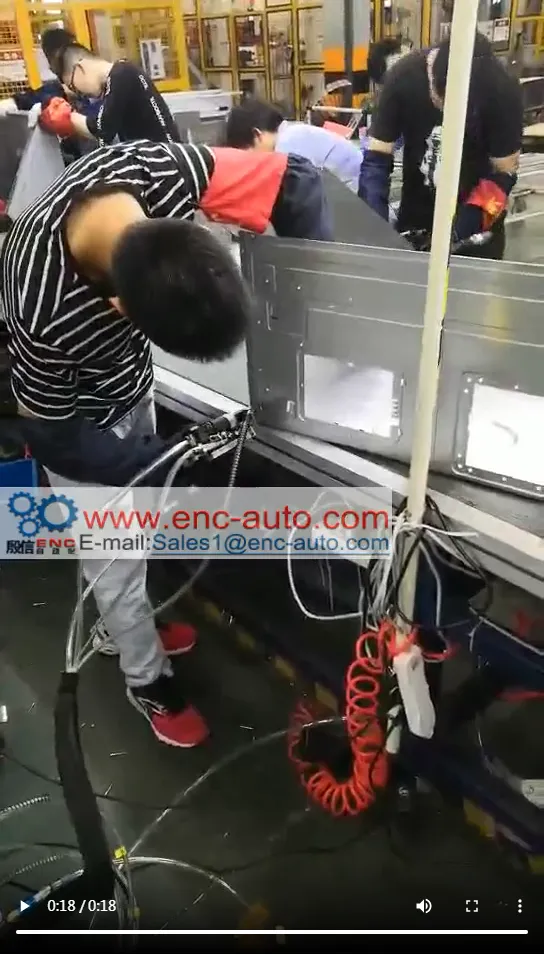

TIPS for video:Please copy the link below to your browser address bar and surfer it:
/en/Product/Automatic%20rivet%20machine/2019-07-11/77.html
Website:
E-mail ID:sales1@enc-auto.com
Mobile phone:86-18301786646
QQ:648832166 Skype:merchssb Wechat:648832166
