Adhesive Dispensing Equipment - Suppliers & Manufacturers in China,CW-AB

Name: Adhesive Dispensing Equipment - Suppliers & Manufacturers in China,CW-AB
Brand: Chuangwei
SKU: 157585662

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

Chuangwei

Place of Origin:

China

Model Number:

CW-AB

SMTfly Electronic Equipment Manufactory

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

15 days

Brand Name Chuangwei

Place of Origin China

Model Number CW-AB

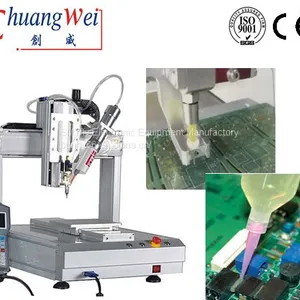

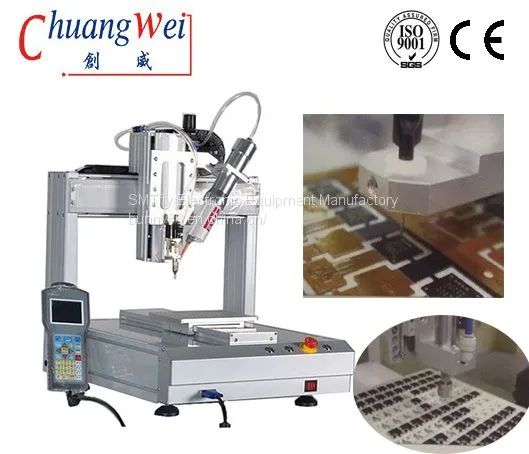

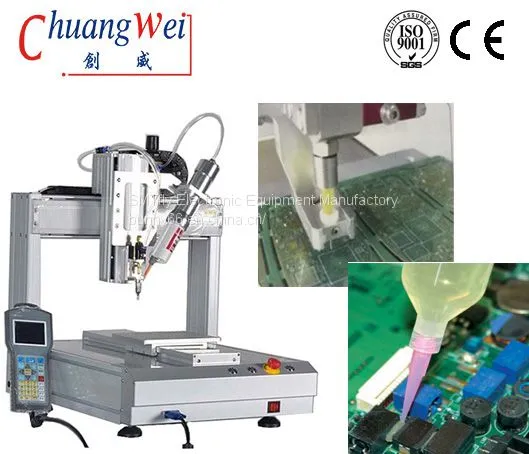

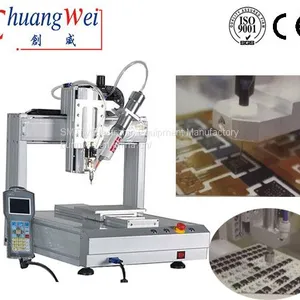

Smt Glue DispenserThree-axis ab glue automatic dispenser Features:

1.English hand held LCD screen operation, easy programming, easy to learn and understand;

2.with a draw point, line, surface, arc, circle. Irregular curve continuous tween and other functions, to achieve any 3D non-planar trajectory path

3.excellent teaching function. Support array, graphical browsing, 3D oval, common graphics library insert, group editing and other advanced features

4.large capacity 2G high-speed Mini SD file memory, can store 999 dispensing process files

5.the amount of plastic size, glue speed, dispensing time, time can be set to stop the parameters set

6.with a special dispensing controller, the amount of glue stability, broken plastic clean, do not leak dispensing

7. with automatic anti-curing function, effectively prevent glue curing plug the needle

Automatic Glue Dispenser Robot For Fpc,Cof Lcd Bonding Machine,CW-AB Specifications:

Parameters	Model	Parameter values
Effective stroke of XYZ Axis	CW-221	200200100
	CW-331	300300100
	CW-441	400400100
	CW-551	500500100
	Other	Other sizes can be made to order
Y / Z Axis Max Load	10Kg/5Kg
Power Supply	110V-220V
Control method	Teaching Box
Repeat ability positioning accuracy	± 0.02mm
XYZ Axis motion speed	500mm/Sec
Machine material	Made of aluminum alloy
Use temperature as	5-40 ºC
Field humidity	20%-90%
Transfer method	Timing belt or screw
