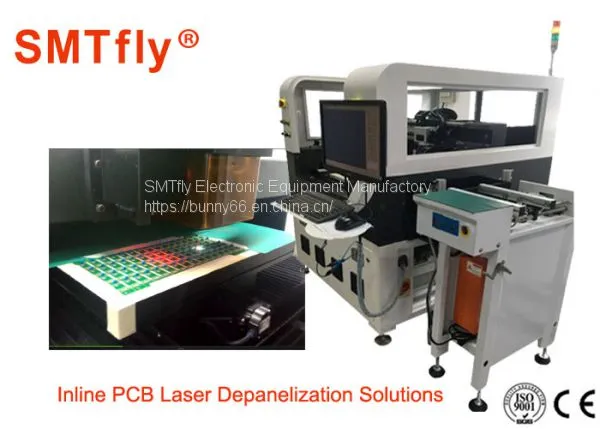

Help CenterInline Laser PCB Depaneling Machine 2500mm/S Laser Scanning Speed,SMTfly-5L
Related Products
-
Customizable FPC / PCB Laser Depaneling Machine , PCB Laser Cutting Machine,SMTfly-5LNegotiableMOQ: 1 Set -
Printed Circuit Board Cutter,CNC Router for PCB,CW-F04US$ 1 - 1MOQ: 1 Set
-
China PCB Separator Machine Cutting Machine CNC Router,CW-F04US$ 1 - 1MOQ: 1 Set
-
Economic Semi Automatic Router Machine,CW-F01-SUS$ 1 - 1MOQ: 1 Set
-
PCB Cutting Machine With PCB Router,PCB Cutter,CNC Router for PCB Depanel,CW-F01-SUS$ 1 - 1MOQ: 1 Set
Working principle :
humidity sensor ( humidity and temperature signal ) → Microcomputer ( CPU Central Processing Unit ) → Heaters ( PTC heating module polymer material heating ) → Smart shape memory alloy ( alloy shape with temperature change ) → Balance spring ( general balance spring with alloy )
Advantages:
1.High precision CCD automatic positioning, automatic focusing. Fast and accurate positioning, save time and no worries.
2.Friendly interface,Simple operation, easy to use, free application; Small size, Save more space; rigorous security design;
3.Reduce energy consumption, Cost savings.
Cost-effective, fast cutting speed, stable performance
Product Name: |
Laser Pcb Separator |
Super: |
Low Power Consumption |
Laser: |
12/15/17W |
Laser Brand: |
Optowave |
Power: |
220V 380v |
Warranty: |
1 Year |
Specification:
Laser |
Q-Switched diode-pumped all solid-state UV laser |
Laser Wavelength |
355nm |
Laser Power |
10W/12W/15W/18W@30KHz |
Positioning Precision of Worktable of Linear Motor |
±2μm |
Repetition Precision of Worktable of Linear Motor |
±1μm |
Effective Working Field |
400mmX300mm(Customizable) |
Laser Scanning Speed |
2500mm/s (max) |
Galvanometer Working Field Per One Process |
40mmх40mm |
Features:
Pre-camera vision product position registration and model check
Coherent Avia NX UV laser with HurrySCAN head
High capacity BOFA dust collector
User friendly Window based software
PCB flexible product jig adjustable for different board size
High resolution and accurate Z stage with auto-focus function
Large area low friction front loading platform for sliding multiple product jigs
Fully covered class 1 safety enclosure
Able to do cutting and marking together
Compact size
