Patent CWDM- Glue Dispensing Machine,Smt Glue Dispenser:
|
Model |
CWDM |
Processing range X * Y1 * Y2 * Z (mm) |
600 * 400 * 400 * 200 |
Maximum Load |
Y / 10kg; Z / 5kg |
Moving speed (mm / s) |
0.1 ~500 |
Repeat ability (mm / Axis) |
± 0.03 |
Display method |
Holding a teaching pendant |
Motor system |
High Precision Micro stepping Motor + Driver |
Transfer method |
Timing belt + rail |
Motion interpolation function |
3 axis (3D stereo space can be any route) |
Edit mode |
Hand-held teaching pager / PC operation |
External interface |
USB |
Input power |
Full voltage AC220V 50 / 60HZ |
|
Working temperature Working environment humidity |
10-40 ° C 20-90% no condensation |
Dimensions W * D * H (mm) |
560 * 500 * 596 |
weight |
80Kg |

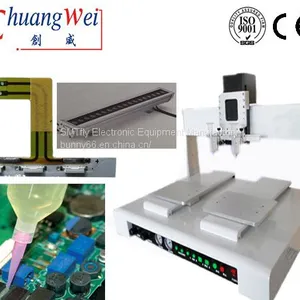

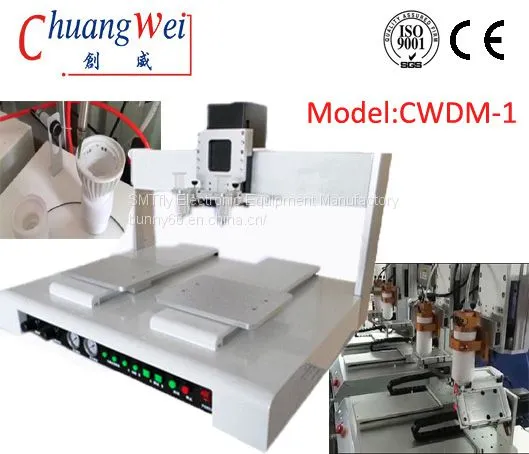

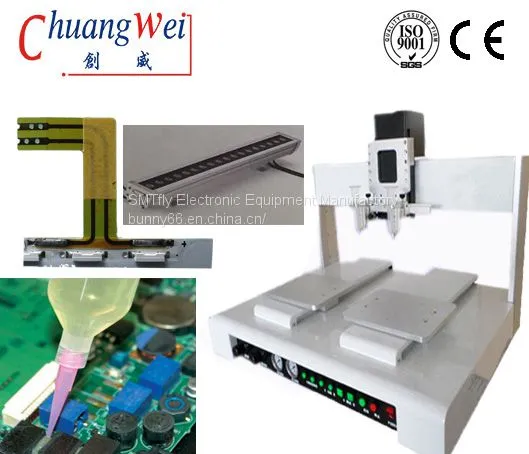

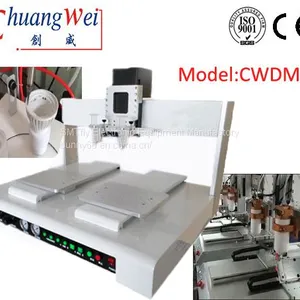

Patent CWDM- Glue Dispensing Machine,Smt Glue Dispenser Sample:
Patent CWDM- Glue Dispensing Machine,Smt Glue Dispenser Application:
Speakers, voice coil, motor, bearings, watches, bald, energy-saving lamps, end caps and other circular or curved products dispensing occasions.
Applicable Dispensing Material
Solder paste, silver paste, yellow plastic, UV curing adhesive, lubricants, epoxy resin, fast curing adhesive, silicone resin and other materials.
