16 channels Madrix software artnet to SPI pixel led ethernet controller
This Artnet-SPI/DMX Pixel light controller is dedicated to converting the Artnet signal
into SPI signal,which is designed for large project with high-density pixel light,such as pane
l lights,construction's contour lamp,etc.Besides converting Artnet based control protocols into
various LED driving IC signal , it also outputs DMX512 signal at the same time,convenient for
the connection of different types of led lamp,and to achieve the unified control of all kinds
of led lamps in the same project.
Operation video: /watch?v=YfLhdxYWld4
Specification :
| Model | BC-216 |
| Working Voltage | DC5V-24V |
| Output Current | 3A*16 channels (Built-in 5A fuse) |
| Input Ethernet control protocol | Artnet, E1.31 |
| Output Control IC | 6803/ 8806/ 2811/ 2801/ 3001/ 9813/ 1814/ 6812 selectable |
| Control Pixels |
RGB: 340 Pixels*16CH RGBW: 256 Pixels*16CH |
| Output DMX512 | Two port (2*512 Channels) |
| Working Temp | -20~55 |
| Product Dimension | L258*W145*H41 (mm) |
| Weight (G.W.) | 1100g |
Dimension:
| IC Type | Compatible ICs | Type |
| 2811 |
TM1803, TM1804, TM1809, TM1812, UCS1903, UCS1909, UCS1912, UCS2903, UCS2909, UCS2912, WS2811, WS2812B, SM16703P etc. |
RGB |
| 2801 | WS2801, WS2803, etc. | |
| 6803 | LPD6803, LPD1101, D705, UCS6909, UCS6912 etc. | |
| 3001 | TLS3001, TLS3002 etc. | |
| 8806 | LPD8803, LPD8806, LPD8809, LPD8812 etc. | |
| 9813 | P9813 etc. | |
| TM1814 | TM1814 etc. | RGBW |
| SK6812 | SK6812, UCS2904, P9412 etc. |
Changing patterns:
Feature Function:
1. With LCD display and built-in WEB SERVER setting interface, easy operation
2. Support Ethernet DMX protocal ArtNet E1.31, can be expanded to other protocols.
3. 16 channels SPI(TTL) signal output, up to 5440 pixels control.
4. Output DMX512 signal at the same time, convenient for the connection of different types LED lamp.
5. Support various LED driving IC, flexible control.
6. Support online firmware upgrade
7. Adopt DIP plug-in design for the easily-worn parts, Users can repair the damage caused by worng wiring or short circuit
8. Built-in test mode, using a networking interface with indicator light, work status is clear when at a glance.

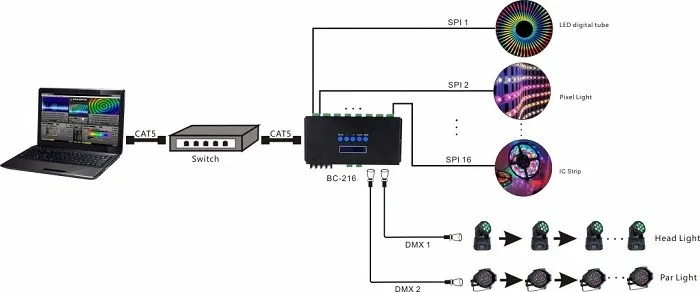

Typical Wiring Schematics:
4 channels artnet controller 16 channels artnet controller DMX512 signal decoder DMX512 signal decoder
All the products will process aging test before ship out. Quality guarantee.
