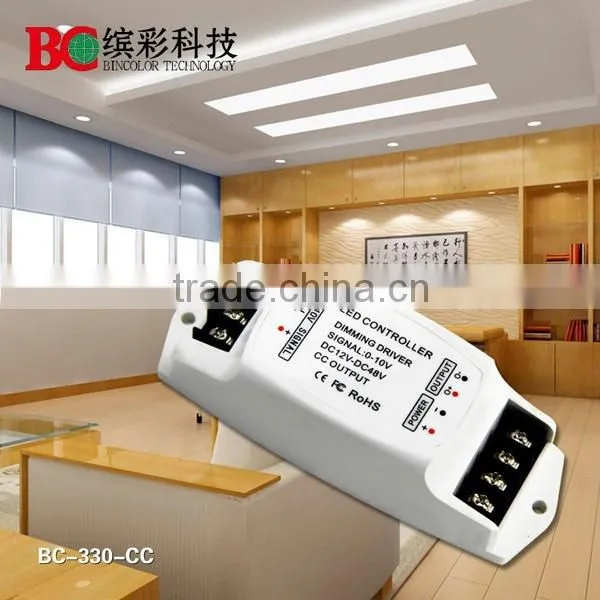

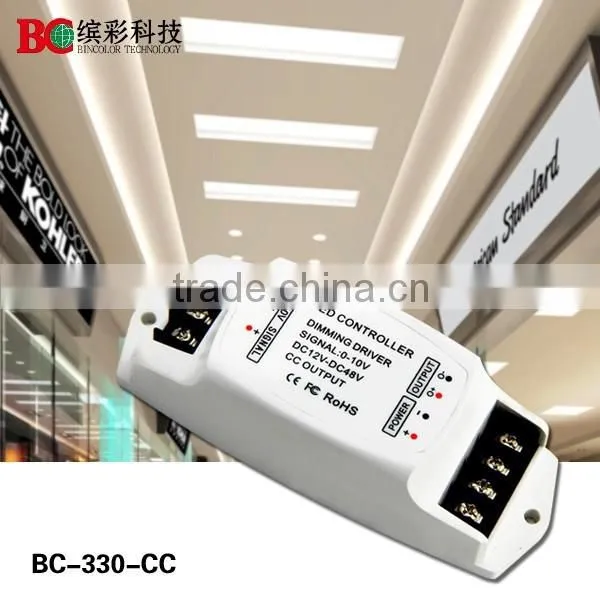

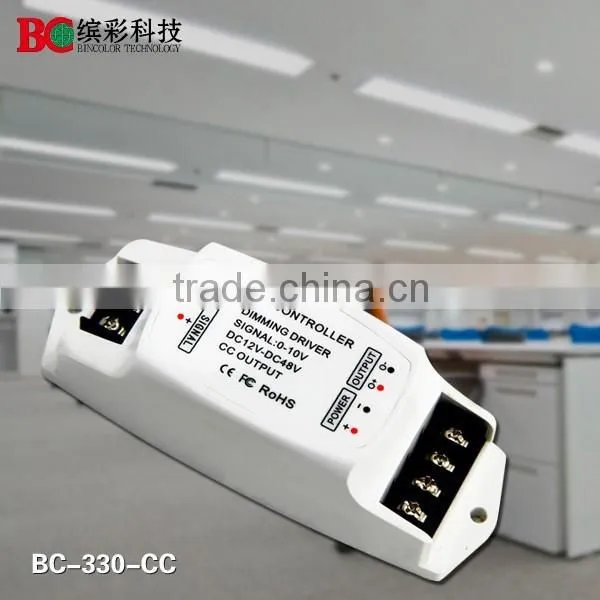

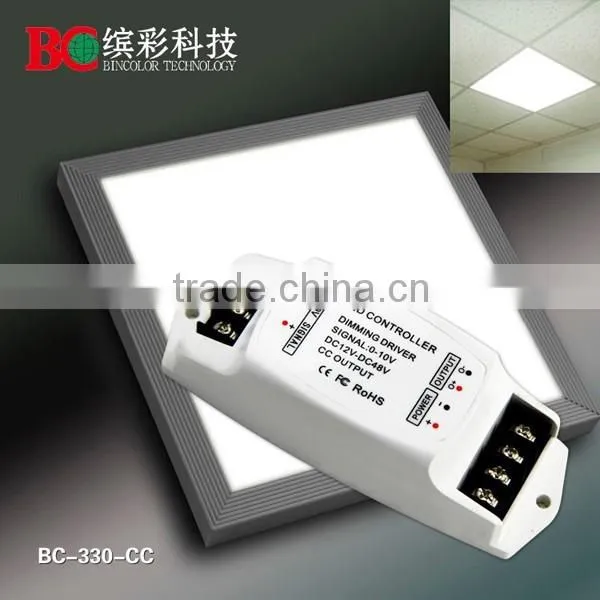

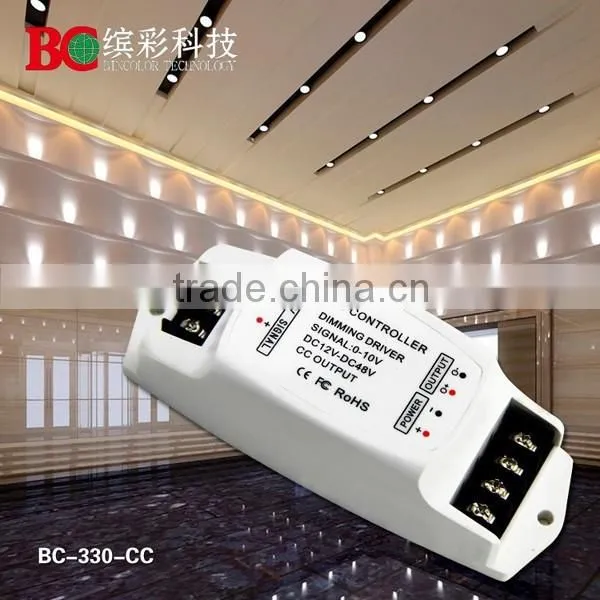

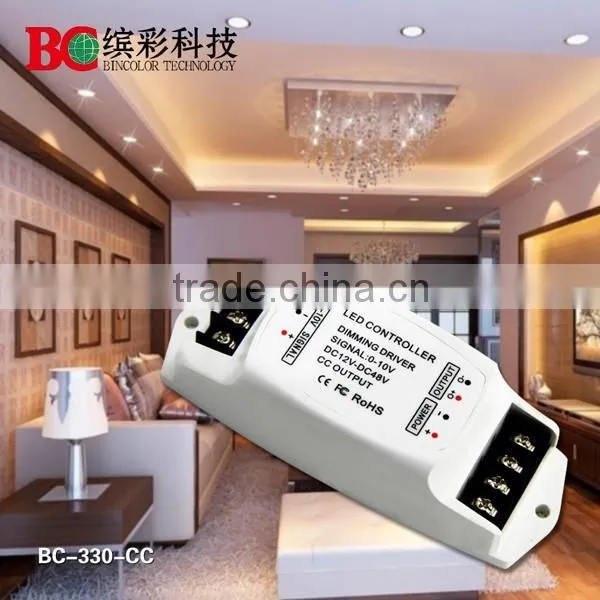

350mA one channel constant current 0/1-10V dimming driver
Feature :
0 - 10V to PWM dimming signal conversion.
Optical isolation protection for input & output.
Compatible with many brand dimming systems.
Working voltage from DC12V~DC48V
Single output channel, Constant current 350mA
Multi units can be worked together or use our power repeaters to control more lamps.
- power loss momery function
Specification :
| Name | Value |
| Brand | Bincolor |
| Model | BC-330-350 |
| Production Capacity | 5000Piece/Pieces per Month |
| Input voltage | DC12V-DC48V |
Max Current Load |
350mA |
| Driving LEDs |
12V 1~3 PCS 1W LED 24V 1~6 PCS 1W LED 36V 1~9 PCS 1W LED 48V 1~12 PCS 1W LED |
Input Signal |
0/1-10V or PUSH DIM |
Output Signal |
Constant Current PWM |

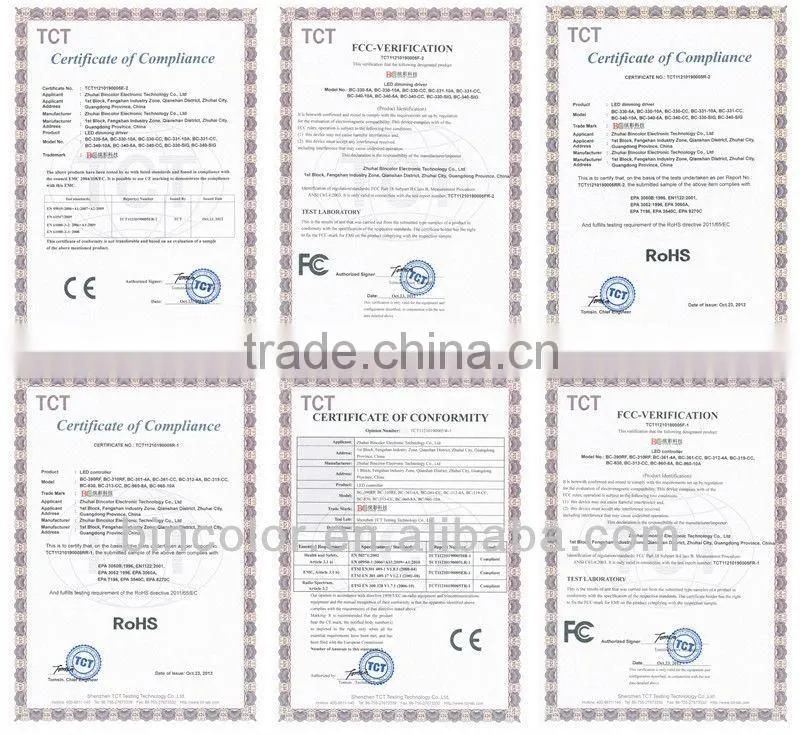

| Certification | CE ,FCC ROSH |
| Dimension(L*W*H) | L125×W45×H36(mm) |
| Weight | 100g |
Package Dimension |
L131×W49×H49(mm) |

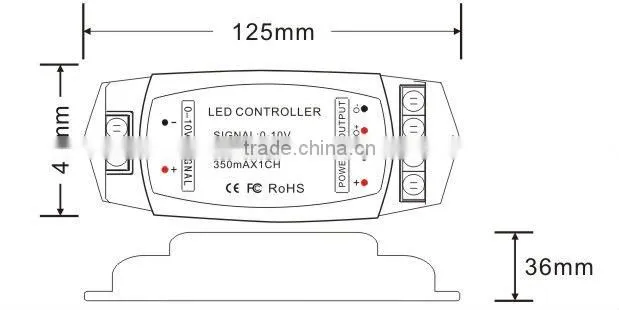

Dimensions:

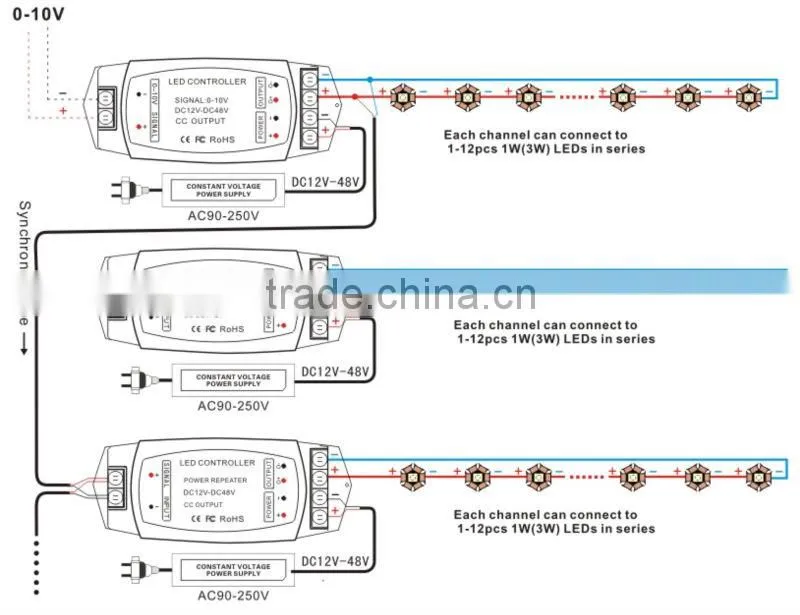

Conjunction Diagram

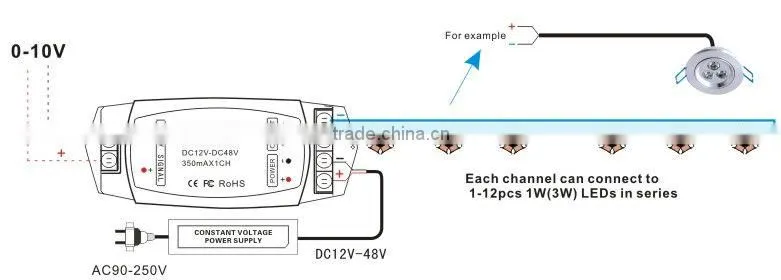

0/1-10V input connection:

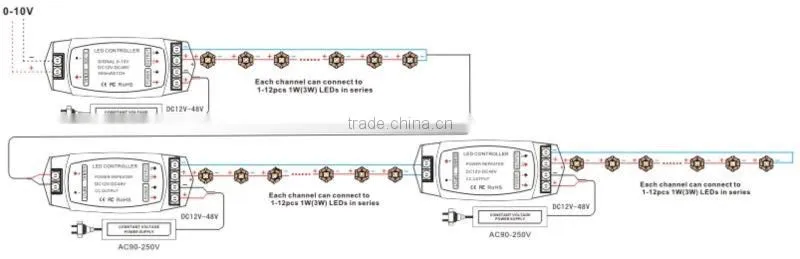

Amplifier connect in parallel:
Amplifier connect in series:
After inspection the goods are packed in white inner box and then carefully packed in cartons.
1. Professional advice according to your needs.
2. Instant response to your inquiries.
3. Short lead-time, quick delivery.
4. Three years warranty for all of our products.
5. Samples orders, OEM/ODM orders are also welcomed.

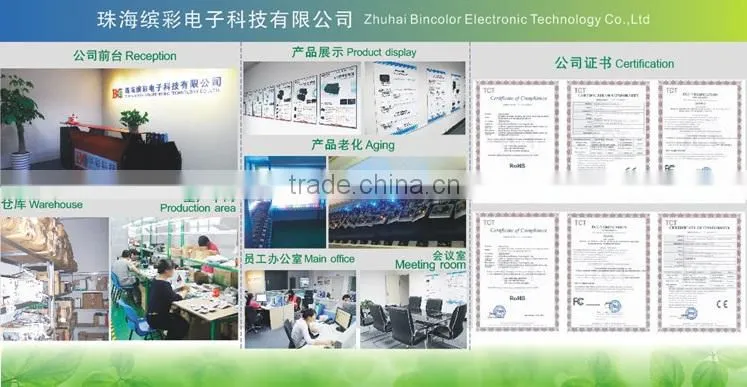

We are leading Manufacturer of LED controllers in Zhuhai, Guangdong province, China.
We are small, flexible and loyal. Ideal partner of your customize order.
We are strong in developing OEM and ODM projects, and customer's rights are the first things we consider about.
We are very competitive in price , well reputed for quality product and prompt delivery.
Welcome to discuss more in details.
Any question, welcome to contact me, all question will be answered within 24 hours or immediately on instant contact!
Christy Lai:
Skype: zhbincolor
M:+86-13392981925
Sample order please access to our online shop: /store/205672

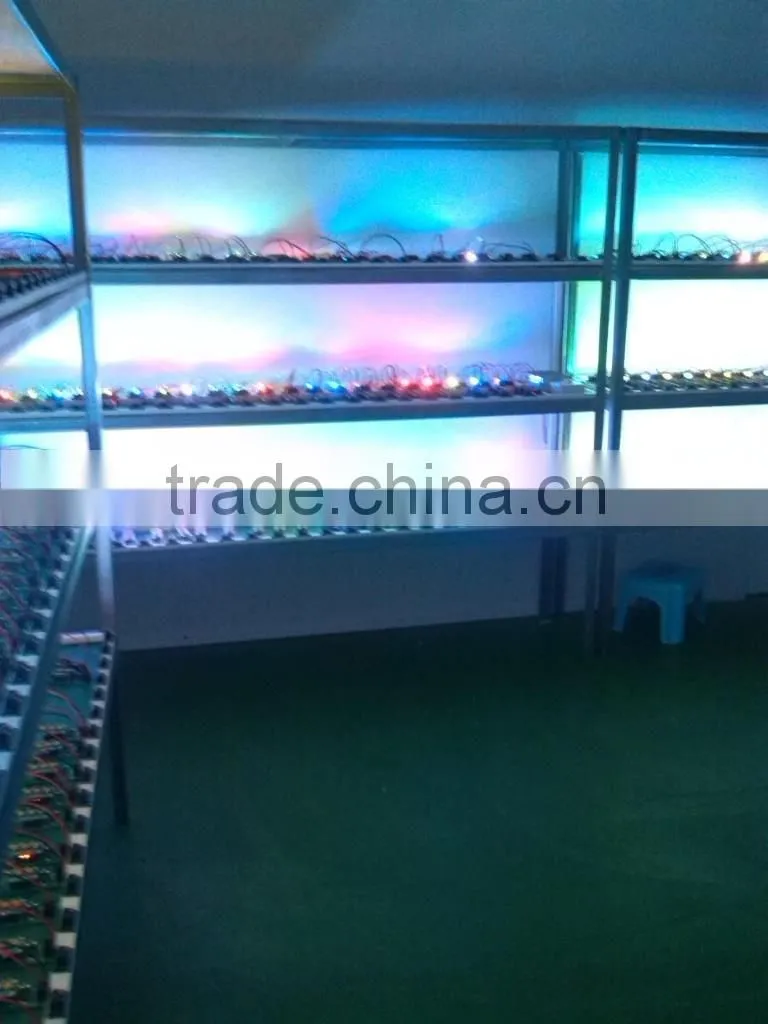

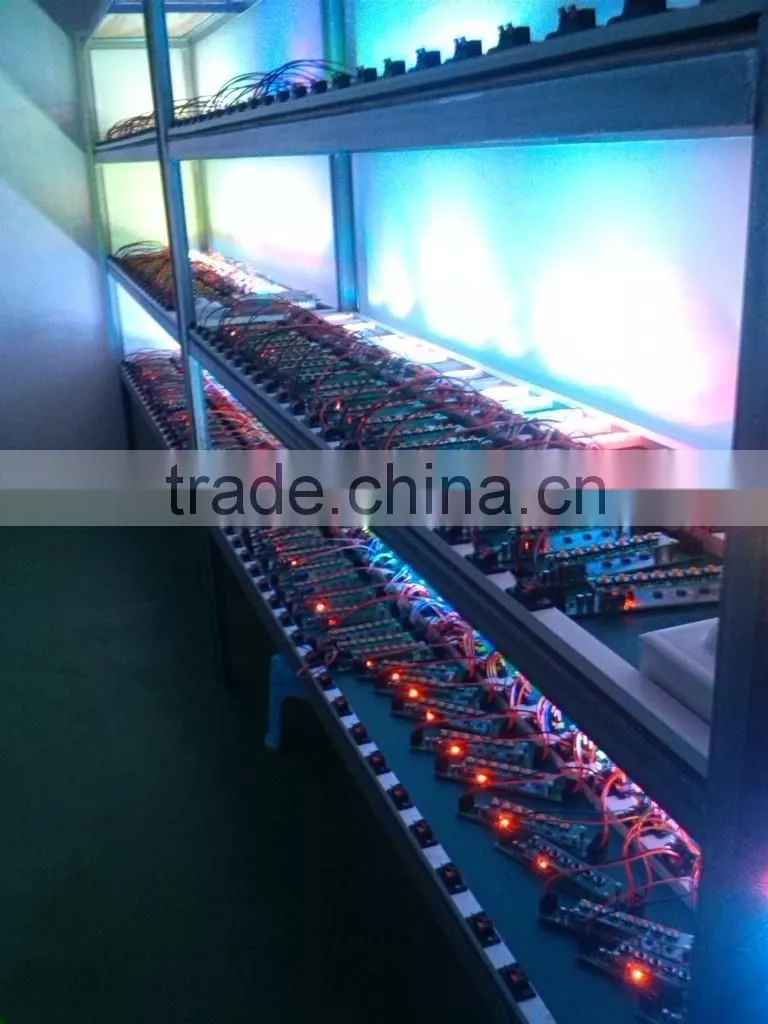

All the products will process aging test before ship out. Quality guarantee.
