Constant Current 350mA -2700mA Push Dim or 1-10v Led Dimming Driver

Constant Current 350mA -2700mA Push Dim or 1-10v Led Dimming Driver thumbnail-1
Constant Current 350mA -2700mA Push Dim or 1-10v Led Dimming Driver thumbnail-2
Constant Current 350mA -2700mA Push Dim or 1-10v Led Dimming Driver thumbnail-3
Constant Current 350mA -2700mA Push Dim or 1-10v Led Dimming Driver thumbnail-4
Constant Current 350mA -2700mA Push Dim or 1-10v Led Dimming Driver thumbnail-5
Constant Current 350mA -2700mA Push Dim or 1-10v Led Dimming Driver thumbnail-6
Constant Current 350mA -2700mA Push Dim or 1-10v Led Dimming Driver photo-1
Constant Current 350mA -2700mA Push Dim or 1-10v Led Dimming Driver photo-2
Constant Current 350mA -2700mA Push Dim or 1-10v Led Dimming Driver photo-3
Constant Current 350mA -2700mA Push Dim or 1-10v Led Dimming Driver photo-4
Constant Current 350mA -2700mA Push Dim or 1-10v Led Dimming Driver photo-5
Constant Current 350mA -2700mA Push Dim or 1-10v Led Dimming Driver photo-6
US$ 1 - 30 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Bincolor
Model Number:
BC-331-CC
Contact Supplier Request Quote Chat Now
Zhuhai Bincolor Electronic Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
zhuhai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Bincolor
Model Number BC-331-CC
Type Other
Max. Load Power /
Voltage Other, DC12V-DC48V



          Bincolor constant current 350mA -2700mA  push dim or 1-10v led dimming driver

 Product Description



             constant current 350mA -2700mA push dim or 1-10v led dimming driver



Introduction



BC-331-CC 0/10v dimming controller which has solved the compatible problem of fluorescent



dimming controller and LED  illumination. with our driver , the controlelr can dim bothfluorescent



and  LED lamps at the same time.

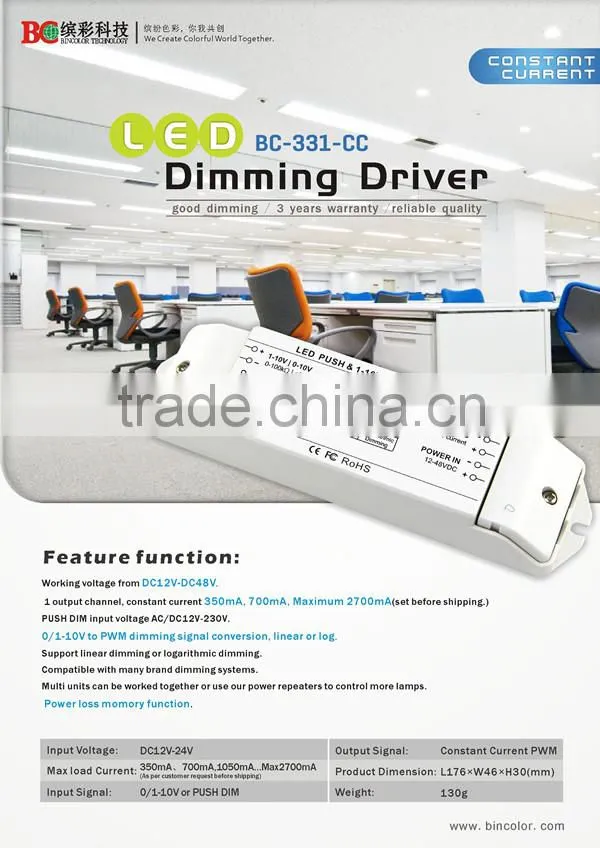

Feature :



  •  Working voltage from DC12V-DC48V.



  • 1 output channel, constant current 350mA, 700mA, Maximum 2700mA(set before shipping.)



  • PUSH DIM input voltage AC/DC12V-230V.



  •  0/1-10V to PWM dimming signal conversion, linear or log.



  • Support linear dimming or logarithmic dimming.



  • Compatible with many brand dimming systems.



  • Multi units can be worked together or use our power repeaters to control more lamps.



  • Power loss momory function.



Specification :



Model

PWM LED Dimming Driver

Input Voltage

DC12V-28V

Max load Current

350mA,700mA,1050mA…Max2700mA

(As per customer request before shipping)

Input Signal

0/1-10V or PUSH DIM

Output Signal

Constant Current PWM

Product Dimension

L176×W46×H30(mm)

Package Dimension

L179×W49×H33(mm)

Weight

130g

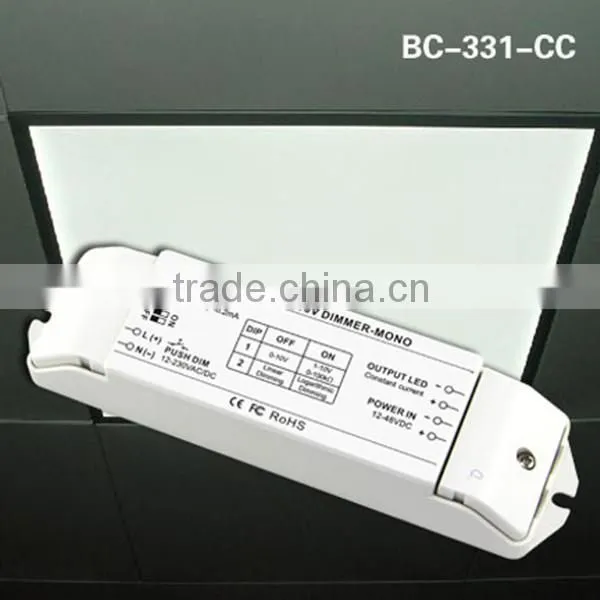

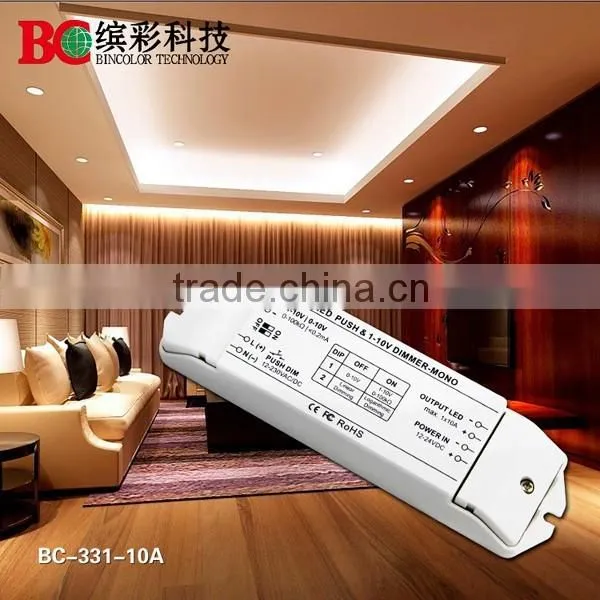

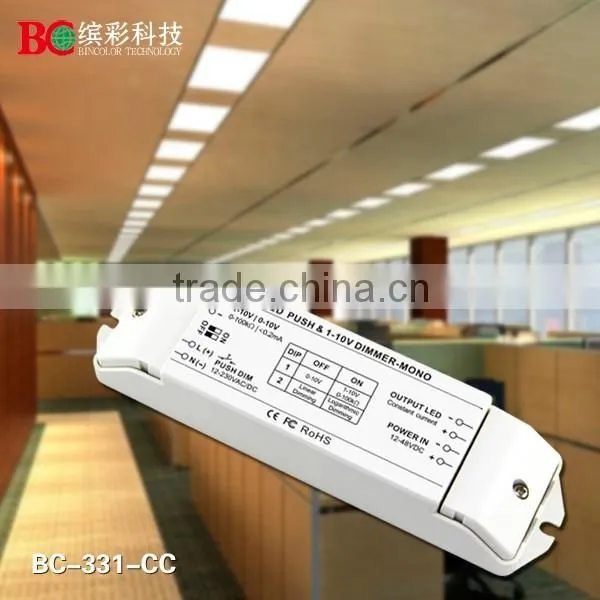

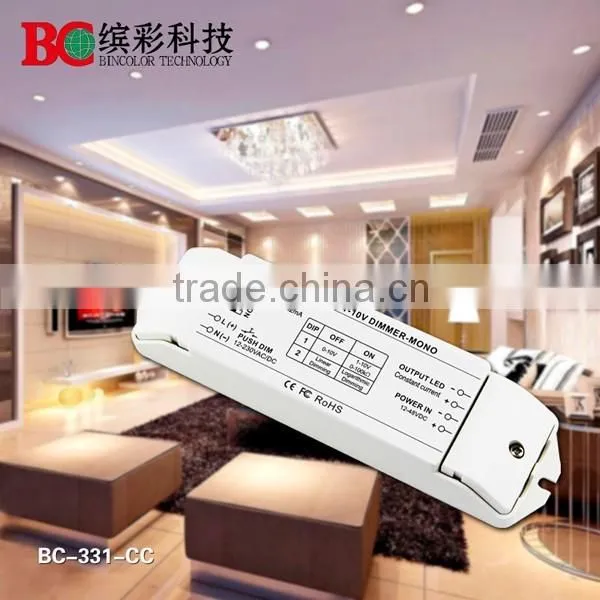

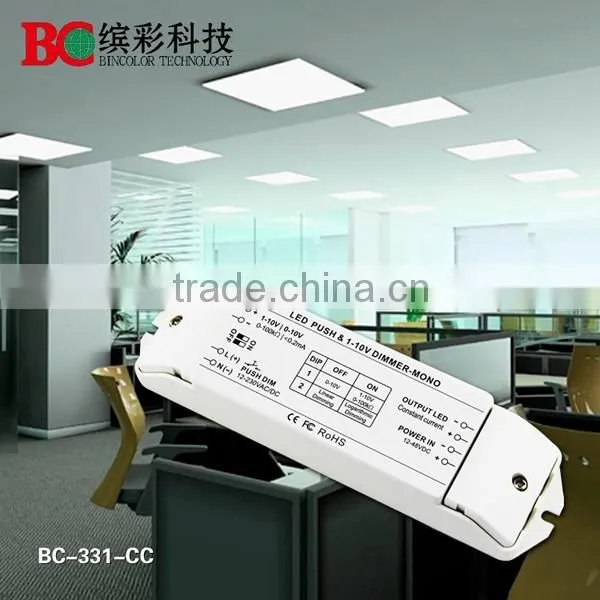

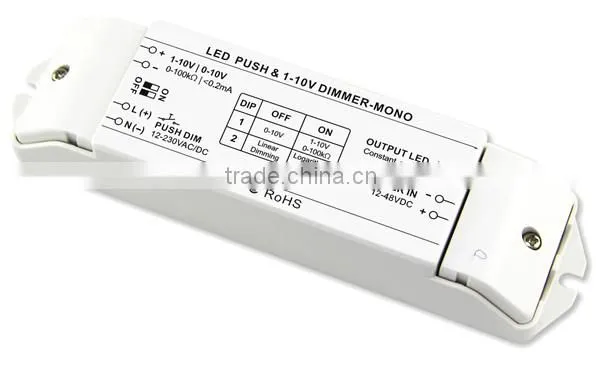

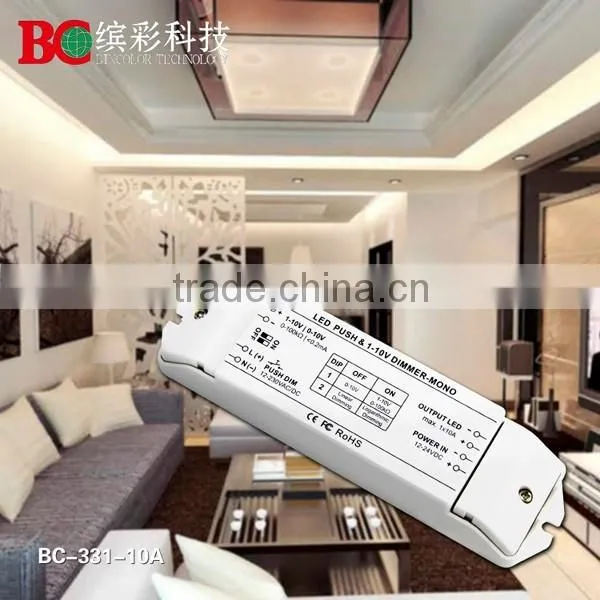

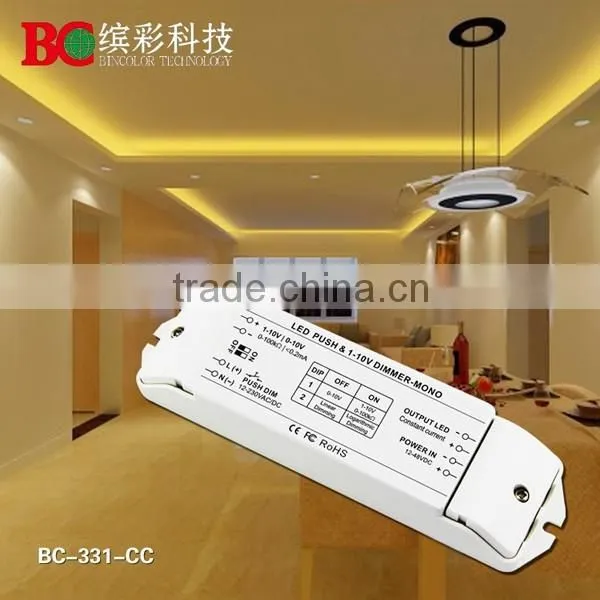

Product  show :



constant current 350mA -2700mA push dim or 1-10v led dimming driver



constant current 350mA -2700mA push dim or 1-10v led dimming driver



constant current 350mA -2700mA push dim or 1-10v led dimming driver




Packaging & Shipping





1. Neutral Packaging





2. Shipping



We will deliver goods by DHL/ FEDEX/ UPS/ EMS express and so on, it will takes 5-7 working days to arrived.




Our Services





Our products meet international standards, OEM and ODM orders are welcome.



First cooperation, welcome to buy sample to test quality, any quantity is available.



All products are 3 years warranty.




Company Information





constant current 350mA -2700mA push dim or 1-10v led dimming driver




FAQ

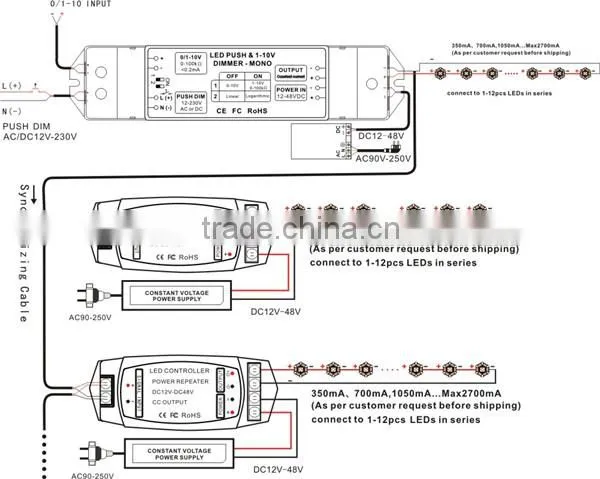

Conjunction diagram



1. 0-10v input :



constant current 350mA -2700mA push dim or 1-10v led dimming driver



2. Push dim input :



constant current 350mA -2700mA push dim or 1-10v led dimming driver



3. Connect to led power repeater to extend power :



constant current 350mA -2700mA push dim or 1-10v led dimming driver

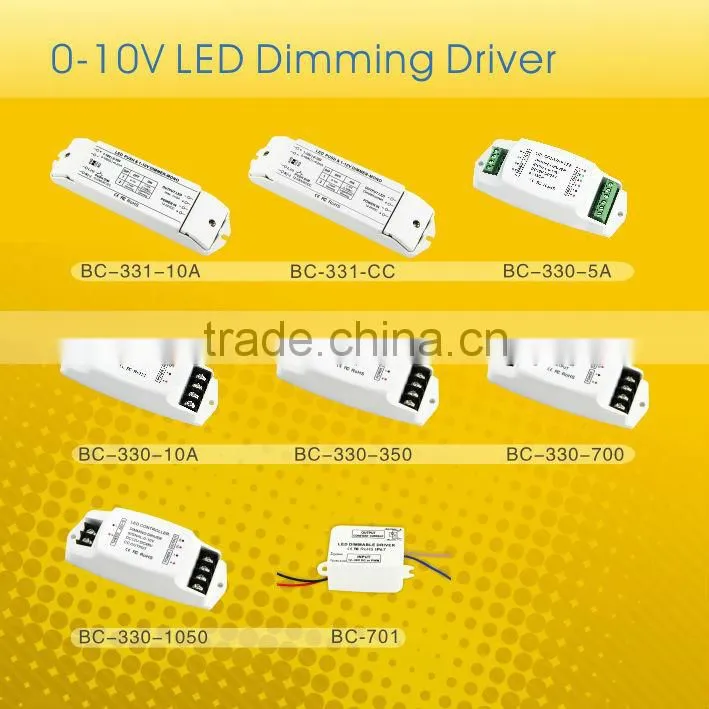

MORE RELATED MODEL



   constant current 350mA -2700mA push dim or 1-10v led dimming driver
