Help CenterDC12V Rotary Digital Display 3 Channel Rgb Strip Controller rf Remote Control RGB Led Controller Manual
Related Products
-
CE FCC DC 12V Led Strips Color Changeable rf Touch Remote Control 24V 5A 4 Channel Led Light Rgbw ControllerUS$ 0.01 - 50.00MOQ: 1 Set -
Wholesale Time Programmable RGB RGBW Led Running Light ControllerUS$ 0.01 - 50.00MOQ: 1 Set
-
BC-361-4A RF Remote Control RGB Intellegint LED Controller for Led StripUS$ 1 - 30MOQ: 2 Pieces
-
3ch RF Wireless Led Module Controller Touch Panel Rgb Led Strip Controller DC12VUS$ 1 - 30MOQ: 2 Pieces
-
Touch Panel Led Rgb Controller 36 Built-in Color Changing Programs RGB Strip Led ControllerUS$ 1 - 30MOQ: 2 Pieces
DC12V 24V brightness digital display rotary RGB led controller, rotary digital display led dimmer is widely used for commercial/office/household lighting, workable for dimming, color temperature, RGB control. With digital display, display status is clear when at a glance. It compatible with our T1,T2,T3 wireless remote control, realize remote control function, thus can meet demand of various occasions.
Product parameter:
Model |
K3 |
Input Voltage |
DC12V-24V |
Load Current |
4A×3CH Max 12A |
Optional output frequency |
0.5K,1K,2K,4K,8K |
Grey Scale Level |
2048×3 |
Max Output Power |
144W(12V)/288W(24V) |
Working Temperature |
-20°C~55°C |
Dimensions |
L86×W86×H36(mm) |
Weight(N.W) |
300g |
Model |
Wireless Remote(T3) |
Input Voltage |
3V(CR2032) |
Working Frequency |
433.92MHZ |
Remote Distance |
30M |
Working Temperature |
-20°C~55°C |
Dimensions |
L106×W56×H9(mm) |
Weight(N.W) |
40g |
Changing patterns:
Features:
1. Automatically adapt to LED light which works from DC12V-24V.
2. Fashionable appearance, simple operation, standard 86 style socket, easy to install and disassemble.
3. Workable for dimming, color temperature, RGB control.
4. 2048 grey scales per channel, led lamp is more rich and vivid without flash.

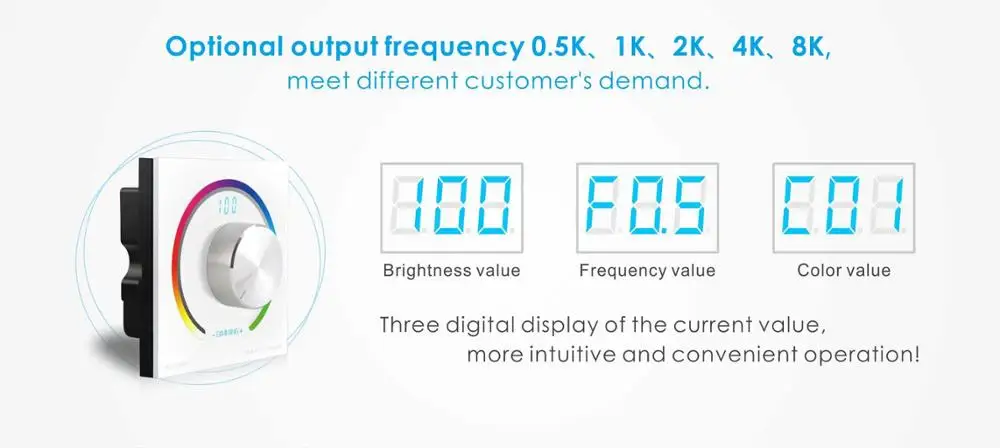

5. Optional output frequency 0.5K,1K,2K,4K,8K.
6.Three-digital-display indicates the current setting value, easy operation , the default parameter can be restored by manual.
7. Can compatible with T series wireless remote control in long distance.
8. Using Encoder rotary knob, instead of potentiometer, more durable.
Typical Wiring Schematics:
Application:
Similar products:
| Item | Model No. | Input Voltage | Max Output Current | Max Output Power |
| 1 |
K1 (dimmer) |
DC12V~24V | 4A×3 channels | 144W(12V)/288W(24V) |
| 2 |
K2 (CT dimmer) |
DC12V~24V | 4A×2 channels | 96W(12V)/192W(24V) |
| 3 |
K3 (RGB) |
DC12V~24V | 4A×3 channels | 144W(12V)/288W(24V) |
Rotary RGB controller IR programmable RGB controller Wall mounted rotary rgb controller
Wall mount touch panel rgb controller Inline Mini rgb controller Multi-zone RGB controller
All the products will process aging test before ship out. Quality guarantee.
After inspection the goods are packed in white inner box and then carefully packed in cartons.
INTERNATIONAL AIR MAIL
PaymentFast Delivery1. Professional advice according to your needs.
2. Instant response to your inquiries.
3. Short lead-time, quick delivery.
4. Three years warranty for all of our products.
5. Samples orders, OEM/ODM orders are also welcomed.
We are leading Manufacturer of LED controllers in Zhuhai, Guangdong province, China.
We are small, flexible and loyal. Ideal partner of your customize order.
We are strong in developing OEM and ODM projects, and customer's rights are the first things we consider about.
We are very competitive in price, well reputed for quality product and prompt delivery.
Welcome to discuss more in details.
3 years warranty.
All Bincolor items pass CE, RoHS and FCC.
Bincolor have rich experience in OEM and ODM service, R&D the products completely according to customers’ demands.
All of our products are independent research and development production.
Within 1-3 working days for routine quantity, goods usually can be sent out on the same day or the next day. Within 20 working days for large quantity. Accurate time is according to the actual inventory.
Any other question, welcome to contact me, all question will be answered within 24 hours or immediately on instant contact!
Christy Lai:
Skype: zhbincolor
M:+86-13392981925
Sample order please access to our online shop: /store/205672
