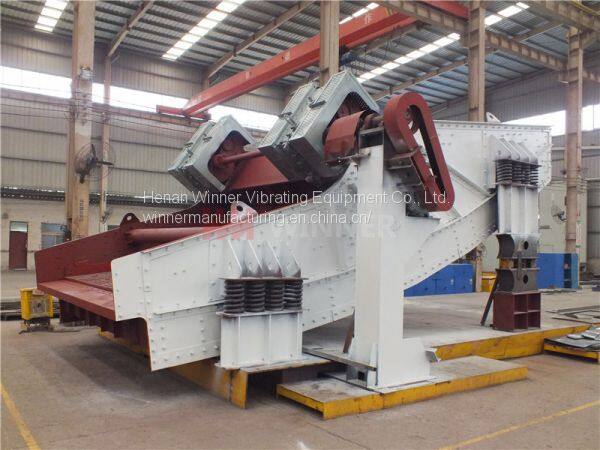

Banana shaped vibrating screen for stone screening
Structure of Banana shaped vibrating screen for stone screening:
Banana shaped vibrating screen equipment including: screen box, vibrator, transmission system, the Ministry of base, spring, screen, motor, control box, etc.
Product overview of Banana shaped vibrating screen for stone screening:
Banana shaped vibrating screen for stone screening is a box-type vibrator and a number of different angle screen surface of the linear vibrating screen, screen box shape and banana similar. It is mainly used for the grading of large and medium size materials with high fines content. Its structure is simple, stable production performance, smooth operation, easy maintenance, maintenance, inspection.
Product features of Banana shaped vibrating screen for stone screening:
Banana shaped vibrating screen for stone screening is a linear vibrating screen into the banana-shaped multi-segment screen surface of the proprietary technology designed. In the feed side there is a larger slope of the screen surface to a certain point of gradual decline, until the grain mouth, the feed end of the slope screen surface allows more material through the sieve surface, a higher screening speed and more Thin layers of material. Because large pieces of material faster through the steep slope, so that faster particles closer to the sieve surface, can not be hindered through the gap, so the banana-shaped vibrating screen with a high screening efficiency and higher than the traditional classification sieve 1.5- 2 times the capacity of the characteristics.
Product Applications of Banana shaped vibrating screen for stone screening:
It is mainly used for the grading of large and medium size materials with high fines content. Can also be used for dehydration, desorption operations.
Technical parameter table of Banana shaped vibrating screen for stone screening:
Model |
Area |
Feeding granularity |
Processing capacity |
Inclination |
Size |
Voltage |
Power |
m2 |
mm |
t/h |
mm |
V |
KW |
||
WZXD1560 |
9 |
≤300 |
80-400 |
5º-25º 5 section screen surface |
5-50 |
380 |
2x11 |
WZXD2060 |
12 |
110-500 |
2x15 |
||||
WZXD2560 |
15 |
130-650 |
2x18.5 |
||||
WZXD3060 |
18 |
160-750 |
2x22 |
||||
WZXD3073 |
21.9 |
190-800 |
2x30 |
||||
WZXD3642 |
15.12 |
130-650 |
2x15 |
||||
WZXD3660 |
21.6 |
200-800 |
2x22 |
||||
WZXD2590 |
22.5 |
200-800 |
2x22 |
||||
WZXD3090 |
27 |
240-1100 |
2x30 |
||||
WZXD3690 |
32.4 |
300-1350 |
2x37 |
