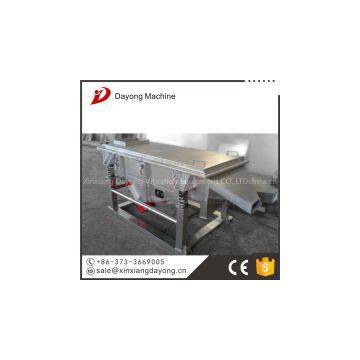

Horizonal Vibrating Screen

Horizonal vibrating screen

Application
1.Plastic: commodity pellets, engineered pellets, PVC resin

2.Agriculture: grains and wheat, soybeans and oilseed, pellets and crumbles, meat meal, pet food,tobacco, corn sizing (ethanol)

3.Chemical: fertilizer, ammonium sulfate, catalyst, calcium hypochlorite

4.Mineral: abrasives and glass, sand, potash, roofing granules, slat, clay, petroleum coke,proppant beats, industrial sand, UREA, bentonite

5.Foods: cereals, citric acid, coffee, milk, coconut, flour, rice, starch, sugar, breading, instant coffee

6.Recycling: ground auto tires, ground PET bottles, ground glass bottles, recycled gypsum

7.Miscellaneous: metal powder steel shot, wood flour, fly ash



Work principle

Linear Vibrating Screen uses double vibrating motors to be power source,when two motors synchronous reversely rotate,exciter forces eccentric block generates are undone in parallel with the direction of motor axis and unite as one across the motor axis direction ,so its movement trajectory is linear .There is an angle of inclination two motor axis ts relative to screen deck ,under the influence of exciter force and materials self weight ,materials self weight ,materials are threw up to make saltatory and linear movement forward on the screen deck in order to screen and grade the materials .Applied in flowing line to achieve automatical operation.



Advantages

1.Quick and easy screen inspection, screen changes, and cleaning by one person

2.Screens can be changed in 80% less time

3.Fully enclosed structure avoids dust overflow, reaching the request of sanitation

4.Simple and rational tensioning mode of screen, easy to replace

5.The screen frame may be replaced as per different mesh numbers,saving running cost



Technical parameters

Model    Dimension（mm）    Granularity（mm）    speed（r/min）    Amplitude
DZSF-520    500*2000    0.074-60    960    2~6
Model    Dimension（mm）    Granularity（mm）    speed（r/min）    Amplitude
DZSF-525    500*2500    0.074-60    960    2~6
Model    Dimension（mm）    Granularity（mm）    speed（r/min）    Amplitude
DZSF-1020    1000*2000    0.074-60    960    2~6
Model    Dimension（mm）    Granularity（mm）    speed（r/min）    Amplitude
DZSF-1025    1000*2500    0.074-60    960    2~6
Model    Dimension（mm）    Granularity（mm）    speed（r/min）    Amplitude
DZSF-1030    1000*3000    0.074-60    960    2~6



If you are interested in our products,pls email or call us.

Welcome to visit our factory and look forward to your cooperation !
