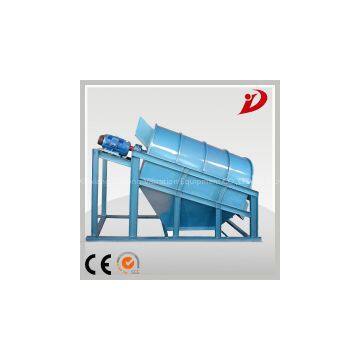

Trommel Vibrating Screen

Application

1) Quarry industry: suitable for screening and classifying gravel, clay, mountain meal, sand, etc.
2) Coal Industry: suitable for screening and classifying lump coal, coal dust, coal washing, etc.
3) Chemical industry: fertilizer industry etc.
4) Mineral-selecting Industry: suitable for grading and classifying lump, powder substance, etc.
5) Metallurgy, construction, building materials, abrasives, and other industries.


Work principle

Trommel drum screen mainly consists of motor, reducer, drum units, racks, etc. Inclination of drum equipment, motor is connected by reducer & the drum unit, the drive drum rotate around its axis. When the materials go into the drum unit, due to the inclination and the rotation of drum unit, it makes qualified materials come out by the outer screen, substandard materials come out by the end of rotary screen.


Advantages
1.Trommel drum screen mainly consists of motor, reducer, drum units, racks, etc.
2.Installation of small angle, it is not easy to block
3.Occupy a small space
4.Low noise and little dust pollution
5.High screening efficiency



Technical parameters

Model    Diameter(mm)    Capacity(m3/h)    Power(kw)    Length of Screen Surface(mm)
DYT-600    Φ600    1~5    3    1500-3000 or as requested, It is related to the sifting ratio of the material

Model    Diameter(mm)    Capacity(m3/h)    Power(kw)    Length of Screen Surface(mm)
DYT-800    Φ800    1~10    3    1500-3000 or as requested, It is related to the sifting ratio of the material

Model    Diameter(mm)    Capacity(m3/h)    Power(kw)    Length of Screen Surface(mm)
DYT-1000    Φ1000    20~30    3    1500-3000 or as requested, It is related to the sifting ratio of the material

Model    Diameter(mm)    Capacity(m3/h)    Power(kw)    Length of Screen Surface(mm)
DYT-1200    Φ1200    20~50    3    1500-3000 or as requested, It is related to the sifting ratio of the material

Model    Diameter(mm)    Capacity(m3/h)    Power(kw)    Length of Screen Surface(mm)
DYT-1500    Φ1500    40~80    5.5    1500-3000 or as requested, It is related to the sifting ratio of the material

Model    Diameter(mm)    Capacity(m3/h)    Power(kw)    Length of Screen Surface(mm)
DYT-1800    Φ1800    80~150    7.5    1500-3000 or as requested, It is related to the sifting ratio of the material
