Brightway Mud Desander and Desilter Advantages
Mud Desander and Desilter is the second phase purification Equipment in Drilling mud system. It's mainly used for treatment of 15~47μm solid particles in drilling fluids.
Brightway Mud Desander and Desilter adopt Sino-Italy joint venture brand OLI Explosion-proof Motor, motive force is more powerful.Compounded rubber spring can enhance the stability of shaker box vibration and reduce the vibration noise, prolong service life.Brightway desander and desilter cones adopt 100% Polyurethane material with clamp structure, and alternative with Derrick brand cone.
Shaker box lifting device can adjust the height of the box conveniently and efficiently.
According to customer requirements and local conditions, Brightway can design and produce different types of Mud Desander and Desilter .
Brightway BWZJ series Drilling Mud Desander and Desilter Parameters
Model | BWZJ85-1S8N | BWZJ70-2S12N | BWZ3P-2S12N | BWZJ4P-3S16N |
Capacity | 112m³/h(492GPM) | 240m³/h(1056GPM) | 240m³/h(1056GPM) | 336m³/h(1480GPM) |
Desander cones | 1×10"(250mm) | 2×10"(250mm) | 2×10"(250mm) | 3×10"(250mm) |
Desilter cones | 8×4"(100mm) | 12×4"(100mm) | 12×4"(100mm) | 16×4"(100mm) |
Vibrating Mode | Linear Motion | |||
Matching Pump | 37kw | 55kw | 55kw | 75kw |
Matching Shaker | BWZS85-2P | BWZS70-3P | BWZS-3P | BWZS-4P |
Shaker Motor | 2×1.0kw | 2×1.5kw | 2×1.5kw | 2×1.865kw |
Screen Area | 2.1m² | 2.6m² | 2.1m² | 2.7m² |
Screen of Deck | 2 Pcs | 3 Pcs | 3 Pcs | 4 Pcs |
Weight | 1580kg | 2150kg | 1980 kg | 2350 kg |
Dimension | 1975×1884×1585mm | 2403×1884×2195mm | 2030×1965×2240mm | 2600×1945×2240mm |
Remark | 4”cyclone each capacity 15~20m³/h, 10" cyclone each capacity 90~120m³, cone quantity according to the flow rate | |||

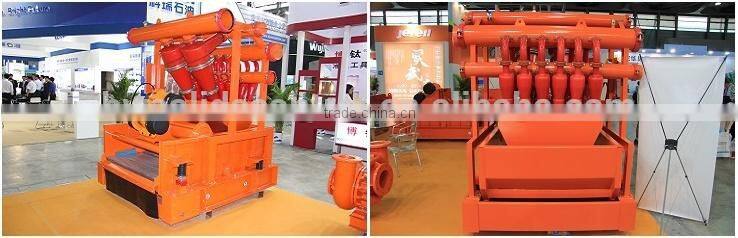

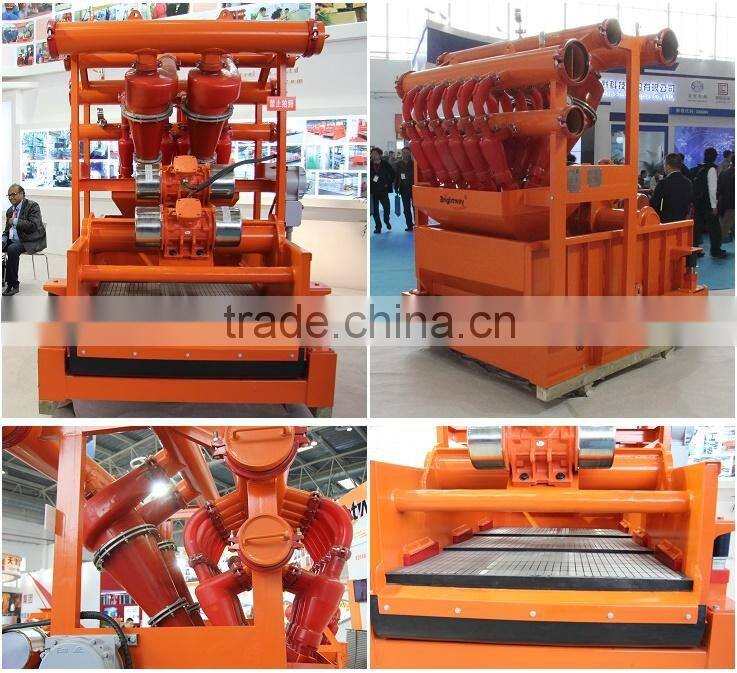

Brightway BWZJ series Drilling Mud Desander and Desilter Display
BWZ2S12N Mud Desander and Desilter
BWZ3P-2S12N Mud Desander and Desilter
BWZJ70-2S12N Mud Desander and Desilter
