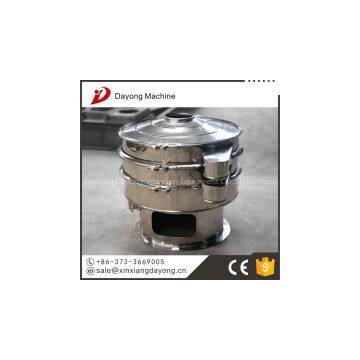

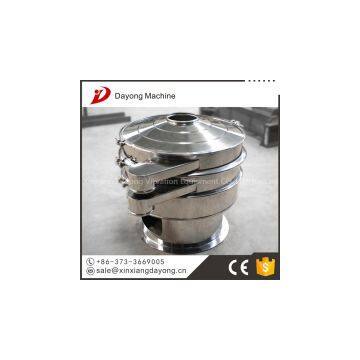

Mining Vibrating Screen

Mining vibrating screen

Application
1.Chemical industry: resin pigment, medicine, grease, paint, palette, etc.
2.Abrasive material and ceramic industry: building sand, mica, alumina, abrasive, refractory material, slurry, etc.
3.Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc.
4.Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.
5.Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide, etc.
6.Mechanical industry: casting sand, powder metallurgy, electromagnetic material and metal powder, etc.


Work principle
The basic principles of vibration screening is installed under the hammer motor shaft (unbalanced hammer), let the motor rotary motion into horizontal, vertical, inclined three per exercise, then this movement passes to the screen surface. Adjusting the upper and lower ends of heavy hammer of the phase angle, it can change the material in the sieve surface trajectory.


Advantages
1.The rubber ball device can reduce the changce of jam on the screen
2.No mechanical movement, ease of maintenance
3.Stainless steel parts contacting materials
4.Easy to operate, impurities and coarse materials can be discharged automatically
5.Rotary Vibrating Screen has Good sealing property. Frame have a dedicated connection with rubber, fastening with a locking band.

Technical parameters
DY600-1S                                                800*800*680             1

DY-600-2S       0.55kw         550mm        800*800*780             2

DY-600-3S                                               800*800*880             3

DY-800-1S                                               900*900*780             1

DY-800-2S       0.75 kw        750mm         900*900*930             2

DY-800-3S                                               900*900*1080            3

DY-1000-1S                                             1160*1160*880          1

DY-1000-2S     1.5 kw          950mm        1160*1160*1030         2

DY-1000-3S                                             1160*1160*1180         3


DY-1200-1S                                             1360*1360*980            1

DY-1200-2S    1.75 kw        1150 mm       1360*1360*1160          2

DY-1200-3S                                              1360*1360*1360          3
