MEGATRO 500KV 5A3 ZBK single circuit tangent transmission tower

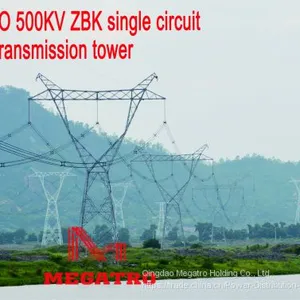

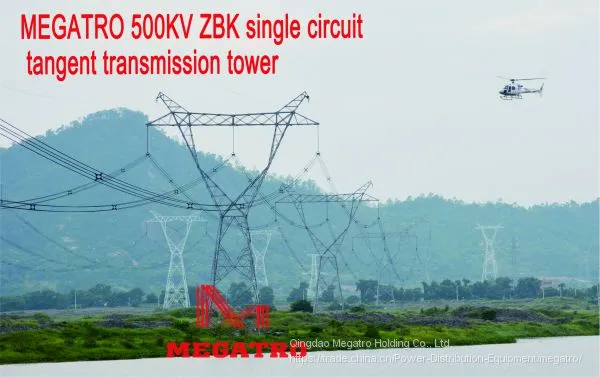

This photo refers to our 500KV 5A3 ZBK single circuit tangent transmission tower, it is widely used in our Chinese market. Some of technical features of this tower as follow:
1 climate condition
Item |
Temperature (℃) |
Wind speed (m/s) |
Ice thickness (mm) |
Max. temperature |
40 |
0 |
0 |
Mini. temperature |
-20 |
0 |
0 |
Ice thickness |
-5 |
10 |
15 |
Basic wind speed |
-5 |
27 |
0 |
Installation condition |
-10 |
10 |
0 |
Annual temperature |
15 |
0 |
0 |
Lightning overvoltage |
15 |
15 |
0 |
Operation overvoltage |
15 |
10 |
0 |
Hot-line work |
-5 |
10 |
0 |
2 tower design data
|
Tower type |
Nominal Height scope (mm) |
Nominal Height (mm)
|
Horizontal span (m) |
Vertical Span (m)
|
Angle º |
Insulator Type
|
Horizontal Span at angel condition |
5A3 ZBK |
57～60 |
57 |
500 |
700 |
/ |
V type insulator |
/ |
60 |
480 |
700 |
|||||
Conductor type: 2×LGL -400/35 |
OPGW: JLB-150 |
||||||
Tower estimated weight and foundation force
|
Tower Type |
Tower weight scope (kg) |
Foundation force scope (KN) |
|||||
Tmax |
Tx |
Ty |
Nmax |
Nx |
NY |
||
5A3 ZBK |
26404～30872 |
750～795 |
83～89 |
76～78 |
963～1030 |
105～108 |
94～98 |
MEGATRO is a full service engineering company with a global reputation for delivering excellence and innovation in power transmission, transformation, distribution, and telecommunications systems. Our MEGATRO provide and design this type 500KV 5A3 ZBK single circuit tangent transmission tower mainly for our Chinese and overseas client. Since 2004, MEGATRO focus mainly international market and had export many kind of transmission structures to overseas clients. MEGATRO has been manufacturing lattice transmission tower & tapered steel poles for lighting, traffic control, communication and utility applications. MEGATRO pioneered the development of transmission tower, telecom tower, substation, and other steel structure and was also at the forefront in the design of Transmission tower.
