MEGATRO 500KV Transmission line 4400ZB1 horizontal type suspension tower

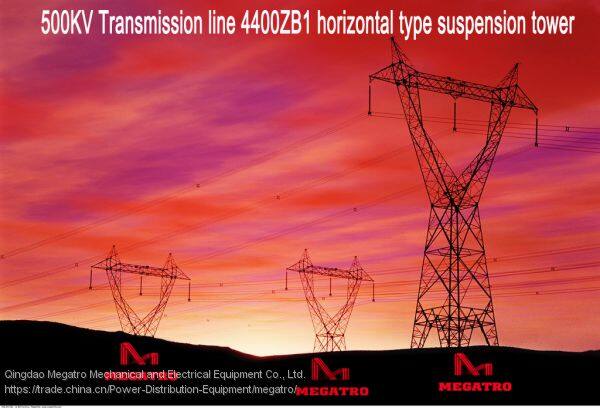

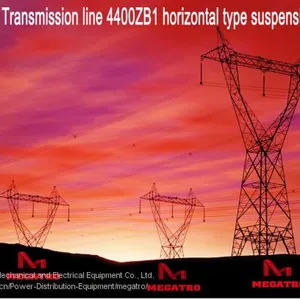

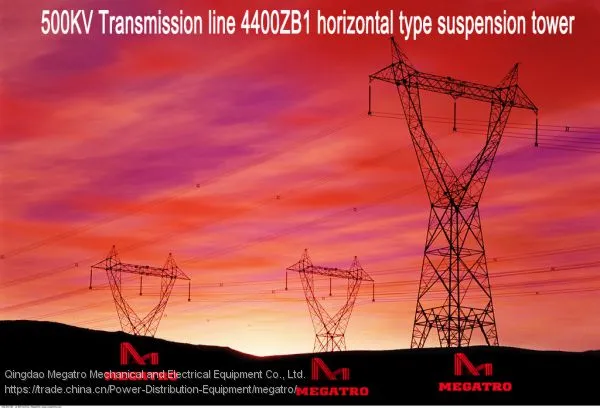

This photo refers to 500KV Transmission line 4400ZB1 horizontal type suspension tower, Conductor lined in Horizontal direction, with double earth wire. Some of their technical data as follow:
Design condition |
Nominal height(m) |
Design span（m） |
Tower weight（kg） |
|||
Conductor type |
4×LGJ-400/35 |
Horizontal |
Vertical |
Foundation flange |
Inserted stub |
|
Earth wire type |
GJ-80 |
24.0 |
420 |
600 |
7505 |
|
Max. Design wind speed（m/s） |
32 |
27.0 |
8271 |
|||
Max. Design Ice thickness（mm） |
10 |
30.0 |
9002 |
|||
33.0 |
9626 |
|||||
36.0 |
10640 |
|||||
Remark: above technical data only references for our client, we can design every type for our overseas clients.
MEGATRO is a full service engineering company with a global reputation for delivering excellence and innovation in power transmission, transformation, distribution, and telecommunications systems. Our MEGATRO provide and design this type 500KV Transmission line 4400ZB1 horizontal type suspension tower mainly for our overseas client. Since 2004, MEGATRO focus mainly international market and had export many kind of transmission structures to overseas clients. MEGATRO has been manufacturing lattice transmission tower & tapered steel poles for lighting, traffic control, communication and utility applications. MEGATRO pioneered the development of transmission tower, telecom tower, substation, and other steel structure and was also at the forefront in the design of Transmission tower.
Over 10 years of experience and innovation in engineering, designing and building towers has evolved MEGATRO into its current form:
l Full Turn-Key provider including site acquisition, engineering services, manufacturing, field services-DAS, tech services, value added reseller and monitoring, maintenance and network ownership
l Specialize in developing supplying and building wireless and wired networks and in-building telecommunications systems, as well as energy infrastructure
l Single source from Design to System Integration
l Top quality, ISO 9001 registered
A complete selection of towers including self-support, lattice steel tower, monopoles and guyed towers, form custom-designed radar towers to broadcast towers and energy infrastructure. MEGATRO carries a variety of related products including fall protection, transmission lines, antennas, obstruction lights, and accessories, and other products if client need, MEGATRO also tailored product as per client condition.
