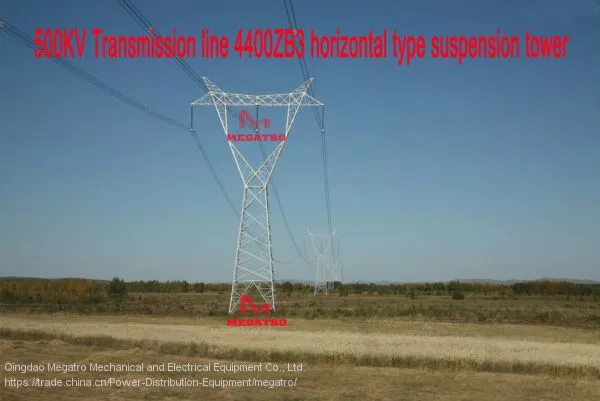

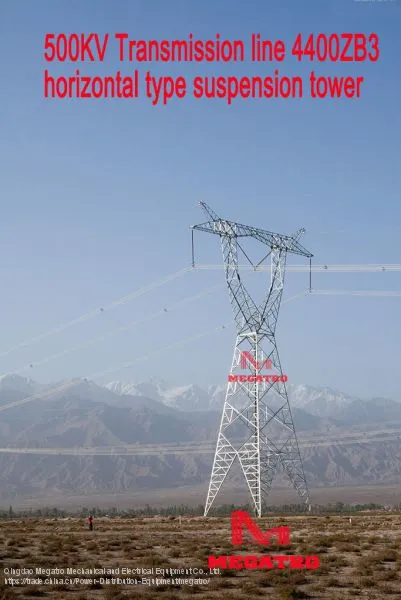

This photo refers to 500KV Transmission line 4400ZB3 horizontal type suspension tower, Conductor lined in Horizontal direction, with double earth wire. Some of their technical data as follow:
Design condition |
Nominal height(m) |
Design span（m） |
Tower weight（kg） |
|||
Conductor type |
4×LGJ-400/35 |
Horizontal |
Vertical |
Foundation flange |
Inserted stub |
|
Earth wire type |
GJ-80 |
24.0 |
600 |
1000 |
9541 |
|
Max. Design wind speed（m/s） |
32 |
27.0 |
10328 |
|||
Max. Design Ice thickness（mm） |
10 |
30.0 |
11069 |
|||
33.0 |
11886 |
|||||
36.0 |
12826 |
|||||
39.0 |
14045 |
|||||
Remark: above technical data only references for our client, we can design every type for our overseas clients.
MEGATRO is a full service engineering company with a global reputation for delivering excellence and innovation in power transmission, transformation, distribution, and telecommunications systems. Our MEGATRO provide and design this type 500KV Transmission line 4400ZB3 horizontal type suspension tower mainly for our overseas client. Since 2004, MEGATRO focus mainly international market and had export many kind of transmission structures to overseas clients. MEGATRO has been manufacturing lattice transmission tower & tapered steel poles for lighting, traffic control, communication and utility applications. MEGATRO pioneered the development of transmission tower, telecom tower, substation, and other steel structure and was also at the forefront in the design of Transmission tower.
Today, with over 10 years of experience and our commitment to excellence, MEGATRO remains an industry leader in the manufacture and design of steel tubular & angular & monopole structures for all Highway, Municipal, Custom, telecom, lighting and electric Utility applications. MEGATRO has a complete staff of professional engineering personnel trained in the PLS Pole program and three different manufacturing processes for producing steel towers, poles and other supports. We utilize the latest versions of PLS-CADD, PLS-POLE, TOWER, AutoCAD and other CAD software.
