500KV 5A3 ZJB single circuit light angle suspension tower
- 5000 Ton / Tons per Month
- Qingdao or as per clients
- T/T L/C
- 30 days
- Acrel ABAT-S battery-powered module device for Battery Monitoring System less than 13mA (1.2V&2V) or 7mA(6V&12V)quiescent
- Acrel ABAT-S battery analyzer monitoring system On-line monitoring of the voltage internal resistance of each backup battery
- Acrel ABAT-C Battery Monitoring Module Lead Battery Charge Discharge output 4-20mA
- Acrel ABAT Battery Monitoring System used for Base Station for 2V/6V/12V Lead Acid Batteries with RS485 communication
- Acrel ABAT-S battery analyzer monitoring system Interfaces with most UPS controller
- Acrel ABAT-S Lead-acid module device per battery to monitor internal resistance voltage and temperature
Product Details
Brand Name: | Megatro | Place of Origin: | China | Model Number: | MGP-500kv-5A3-ZJB |
Product Description

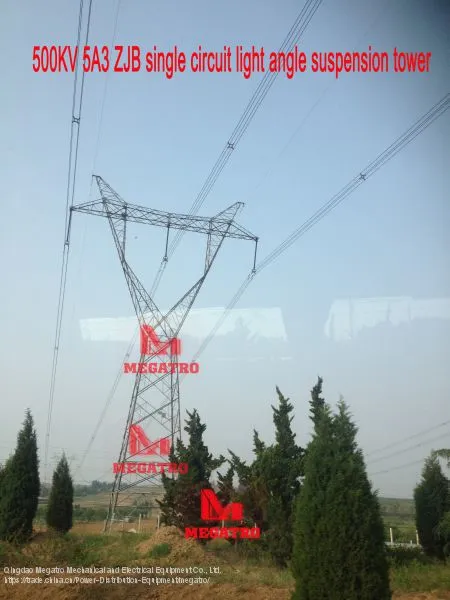

This photo refers to our 500KV 5A3 ZJB single circuit light angle suspension tower, it is widely used in our Chinese market. Some of technical features of this tower as follow:
1 climate condition
Item | Temperature (℃) | Wind speed (m/s) | Ice thickness (mm) |
Max. temperature | 40 | 0 | 0 |
Mini. temperature | -20 | 0 | 0 |
Ice thickness | -5 | 10 | 15 |
Basic wind speed | -5 | 27 | 0 |
Installation condition | -10 | 10 | 0 |
Annual temperature | 15 | 0 | 0 |
Lightning overvoltage | 15 | 10 | 0 |
Operation overvoltage | 15 | 15 | 0 |
Hot-line work | 15 | 10 | 0 |
Ice thickness (testing) | -5 | 10 | 25 |
2 tower design data
Tower type | Nominal Height scope (mm) | Nominal Height (mm)
| Horizontal span (m) | Vertical Span (m)
| Allowed Angle º | Insulator Type
| Horizontal Span at angel condition |
5A3 ZB1 | 36 | 500 | 800 | 0~10 | I type (long rod insulator ) |
/ | |
Conductor type: 4×LGL-400/50 | OPGW: JLB-150 |
MEGATRO performs in-house design activities specializing in electrical overhead transmission &telecom tower steel works, which include wind and earthquake loading, static analysis, stress analysis by finite element methods and fatigue. Our Engineering Department is boasting of highly qualified engineering who are conversant with international codes and standards. The work is carried out with extensive use of CAE/CAD via a large of computer network. The computer hardware & drafting software are liked to the CNC workshop equipment for downloading of information thereby eliminating error and saving valuable production time.
Besides, MEGATRO is one of the few manufactures who assemble a face of 500KV 5A3 ZJB single circuit light angle suspension tower. This attention to quality may not be the cheapest process but it does insure every tower meets our high standards of quality. And it helps to reduce on-site construction cost due to mismatched assemblies. After fabrication all 500KV 5A3 ZJB single circuit light angle suspension towers are delivered to the galvanizing facility to be Hot DIP Galvanized. Towers are processed through the facility by Caustic Cleaning, Pickling, and then Fluxing. These strict procedures insure years of maintenance free towers. All finished surfaces shall be level and free of tears, burrs, clots and impurities.
Design Calculations and Drawings
Our MEGATRO can perform complete design calculations, design drawings and shop detail drawings of each structure and submit checked calculations and drawings for Owner's review and distribution in the quantity, manner and time set forth in the Purchase Order. Our drawings consist of the following:
Design drawings showing structure dimensions, conductor clearance diagrams and schedule of member sizes, bolt sizes and material specifications.
Erection drawings showing each individual member with its identification mark, location and position of outstanding leg of angles, with number, diameter and length of bolts for connection; and typical details to large scale where a number of members frame together.
Shop detail drawings showing all dimensions, draw for tension diagonals, and all shearing punching, bevel cutting, grinding, bending and identification mark for each member.
A complete Bill of Material for each structure showing the number, kind, size, length, weight and identification mark for each member including all bolts.
(Remark: only PO confirmed, our MEGATRO can start shop drawings for client.)
