MEGATRO 500KV ZB3-2 Suspension tower

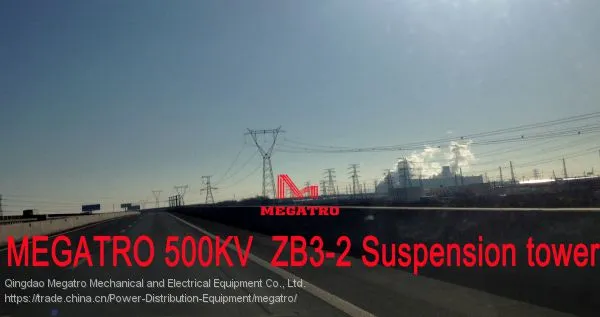

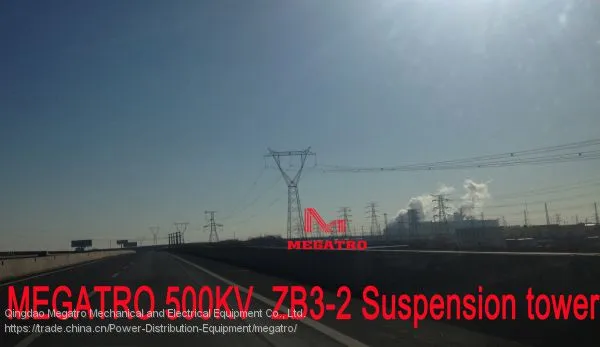

This photo refers to our 500KV Transmission line ZB3-2 horizontal type suspension tower. Conductor lined in horizontal direction, with double earth wire, and some of technical features of this tower as follow:
Application condition |
500kvTransmission line |
||
Tower Name |
ZB3-2 suspension tower |
tower type |
ZB3-2 |
Design condition |
Nominal height(m) |
Tower weight（kg） |
|
Conductor type |
4×LGJQ-300 |
27 |
8303 |
Earth wire type |
BP-95 |
30 |
9164 |
Max. Wind speed（m/s） |
32 |
33 |
9929 |
Max.Ice thickness（mm） |
10 |
36 |
10461 |
Horizontal span（m） |
450 |
||
Vertical span(m) |
600 |
||
Angle |
|||
Remark: above technical data only references for our client, we can design every type for our overseas clients.
MEGATRO is a full service engineering company with a global reputation for delivering excellence and innovation in power transmission, transformation, distribution, and telecommunications systems. Our MEGATRO provide and design this type 500KV Transmission line ZB3-2 horizontal type suspension tower mainly for our overseas client. Since 2004, MEGATRO focus mainly international market and had export many kind of transmission structures to overseas clients. MEGATRO has been manufacturing lattice transmission tower & tapered steel poles for lighting, traffic control, communication and utility applications. MEGATRO pioneered the development of transmission tower, telecom tower, substation, and other steel structure and was also at the forefront in the design of Transmission tower.
