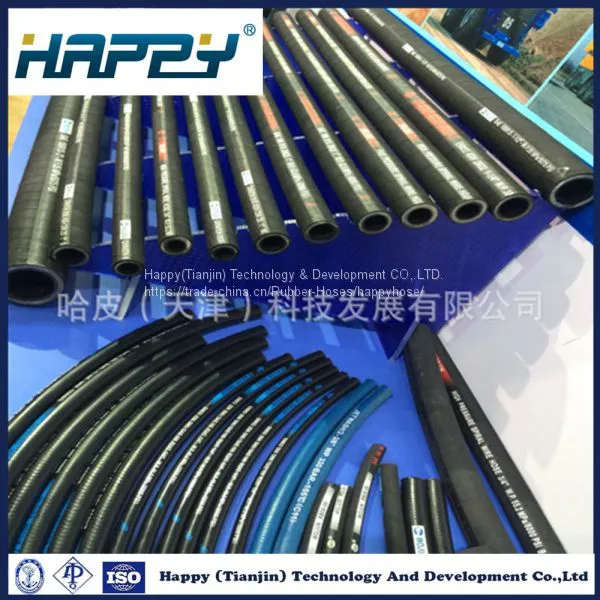

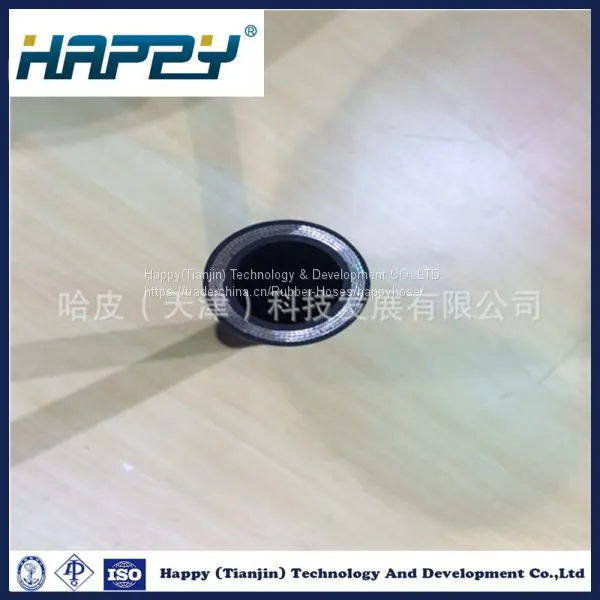

R10 Wire Spiral High Pressure Oil Hydraulic Rubber Hose
Executive Standard:SAE 100R10
Construction:
Tube:Oil synthetic rubber.

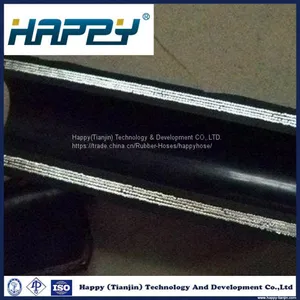

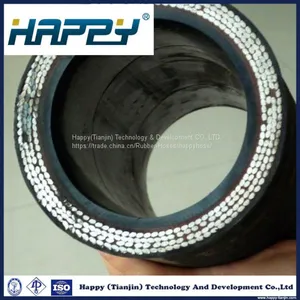

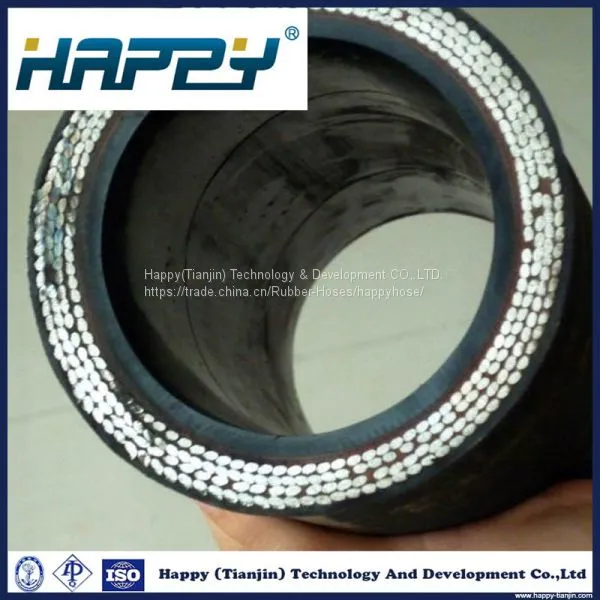

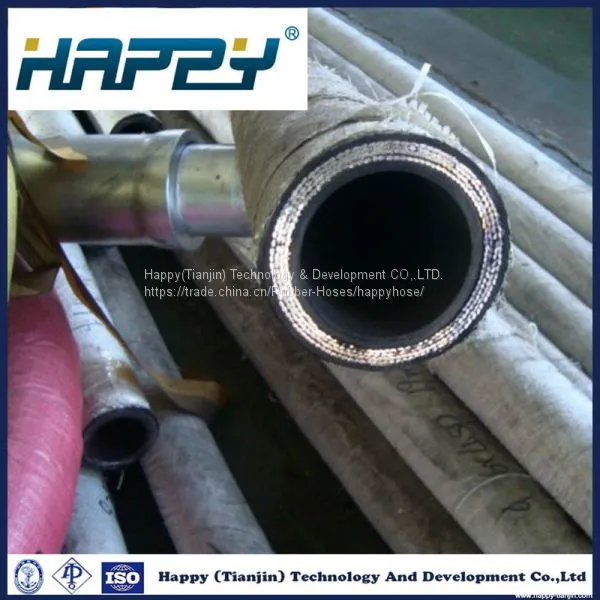

Reinforcement:Four spiral plies of heavy steel wire wrapped in alternating directions.
Cover: An oil and weather resistent synthetic rubber.
Temperature range: -40° C to +100° C.
Specification:
| DN | Hose I.D | Hose O.D | Working Pressure | Burst Pressure | Minimum Bend Radius | Weight | ||||
| inch | mm | mm | MPa | psi | MPa | psi | mm | kg/m | ||
| 5 | 3/16 | 4.6 | 19.8 | 70 | 10150 | 280 | 40600 | 100 | 0.61 | |
| 6.3 | 1/4 | 6.2 | 21.4 | 61 | 8845 | 245 | 35525 | 125 | 0.73 | |
| 10 | 3/8 | 9.3 | 24.6 | 44.5 | 6450 | 180.0 | 26000 | 180 | 0.78 | |
| 12.5 | 1/2 | 12.5 | 28.6 | 41.5 | 6000 | 166.0 | 24000 | 230 | 0.89 | |
| 19 | 3/4 | 19.0 | 37.3 | 35.0 | 5000 | 140.0 | 20000 | 300 | 1.59 | |
| 25 | 1 | 25.4 | 45.6 | 28.0 | 4000 | 112.0 | 16000 | 340 | 2.02 | |
| 31.5 | 1 1/4 | 31.8 | 52.4 | 21.0 | 3000 | 84.0 | 12000 | 460 | 3.32 | |
| 38 | 1 1/2 | 38.1 | 58.7 | 18.5 | 3650 | 74.0 | 10150 | 560 | 3.70 | |
| 51 | 2 | 50.8 | 72.2 | 17.5 | 2538 | 70.0 | 10150 | 710 | 4.95 | |
Our Services
We can offer OEM Services.
We can provide FREE SAMPLE for our customers.
We can crimp hose assembly for our customers.
We welcome clients to visit our factory leading to better understanding of our production.
FAQ's
Q1. Do you produce smooth or cloth wrapped cover?
A. Both, we can produce both cover, which depends on customer's request.
Q2. Do you produce embossed marking?
A. Yes, we do provide embossed and printing markings with different color.
Q3. Can you produce product with my own brand?
A. Yes, we have been offering OEM services for more than 13 years.
Q4. Does your product have different color hose?
A. Yes, we currently provide black, grey, red, blue and yellow.
Q5. How long does my order take to be delivered?
A. It usually takes 5 to 30 days, which generally depends on the quantity of your order and our storage.
Our principle:
Excellent quality , Fast delivery, Integrity service.
For any inquiries,please contact us directly !
