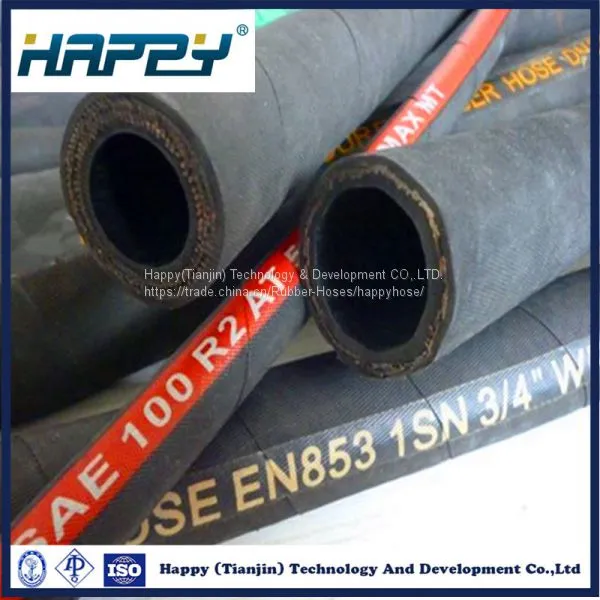

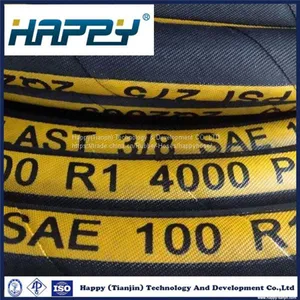

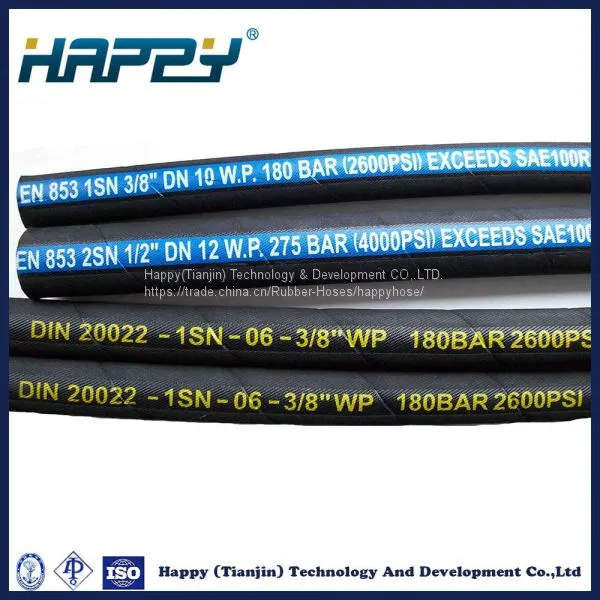

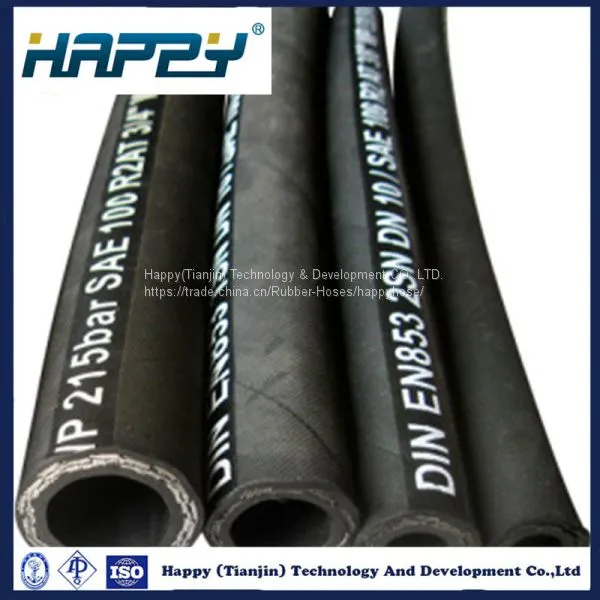

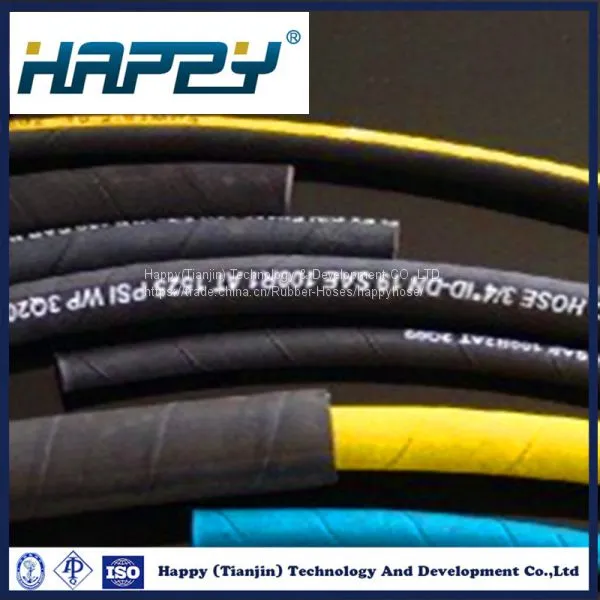

SAE 100r1at / En 853 1sn High Pressure Hydraulic Rubber Hose:
Executive Standard:SAE 100 R1AT / DIN EN 853 1SN STANDARD
Construction:
Inner Tube:Oil resistant synthetic rubber.
Reinforcement:One high tensile steel wire braid.
Cover: Abrasion and weather resistant synthetic rubber.
Temperature range:-40° C to 120° C.
Competitive Advantage:
1-Professional manufacturer of various rubber/hydraulic hoses.
2- We have been cooperate with many famous foreign companies and to be there OEM factory for many years.
3-We have advanced equipment, experienced engineers and workers.
4-Certificates: ISO 9001: 2008.
5- Free samples can be offered.
6- Good quality, Competitive prices and timely delivery and first-rate service.
Specification:
| DN | Hose I.D | Wire O.D | Hose O.D | Working Pressure | Burst Pressure | Minimum Bend Radius | Weight | |||
| inch | mm | mm | mm | MPa | psi | MPa | psi | mm | kg/m | |
| 5 | 3/16 | 4.8 | 9.5 | 11.8 | 25.0 | 3630 | 100.0 | 14280 | 89 | 0.19 |
| 6 | 1/4 | 6.4 | 11.1 | 13.4 | 22.5 | 3270 | 90.0 | 12840 | 102 | 0.21 |
| 8 | 5/16 | 7.9 | 12.7 | 15.0 | 21.5 | 3120 | 85.0 | 12280 | 114 | 0.24 |
| 10 | 3/8 | 9.5 | 15.1 | 17.4 | 18.0 | 2615 | 72.0 | 10280 | 127 | 0.33 |
| 13 | 1/2 | 12.7 | 18.3 | 20.6 | 16.0 | 2320 | 64.0 | 9180 | 178 | 0.41 |
| 16 | 5/8 | 15.9 | 21.4 | 23.7 | 13.0 | 1890 | 52.0 | 7420 | 203 | 0.45 |
| 19 | 3/4 | 19.0 | 25.4 | 27.7 | 10.5 | 1530 | 42.0 | 6000 | 241 | 0.58 |
| 25 | 1 | 25.4 | 33.3 | 35.6 | 8.8 | 1280 | 35.0 | 5020 | 305 | 0.88 |
| 32 | 1 1/4 | 31.8 | 40.5 | 43.5 | 6.3 | 920 | 25.0 | 3600 | 419 | 1.23 |
| 38 | 1 1/2 | 38.1 | 46.8 | 50.6 | 5.0 | 730 | 20.0 | 2860 | 508 | 1.51 |
| 51 | 2 | 50.8 | 60.2 | 64.0 | 4.0 | 580 | 16.0 | 2280 | 635 | 1.97 |
Our Services
We can offer OEM Services.
We can provide FREE SAMPLE for our customers.
We can crimp hose assembly for our customers.
We welcome clients to visit our factory leading to better understanding of our production.
FAQ's
Q1. Do you produce smooth or cloth wrapped cover?
A. Both, we can produce both cover, which depends on customer's request.
Q2. Do you produce embossed marking?
A. Yes, we do provide embossed and printing markings with different color.
Q3. Can you produce product with my own brand?
A. Yes, we have been offering OEM services for more than 13 years.
Q4. Does your product have different color hose?
A. Yes, we currently provide black, grey, red, blue and yellow.
Q5. How long does my order take to be delivered?
A. It usually takes 5 to 30 days, which generally depends on the quantity of your order and our storage.
Our principle:
Excellent quality , Fast delivery, Integrity service.
For any inquiries,please contact us directly !
