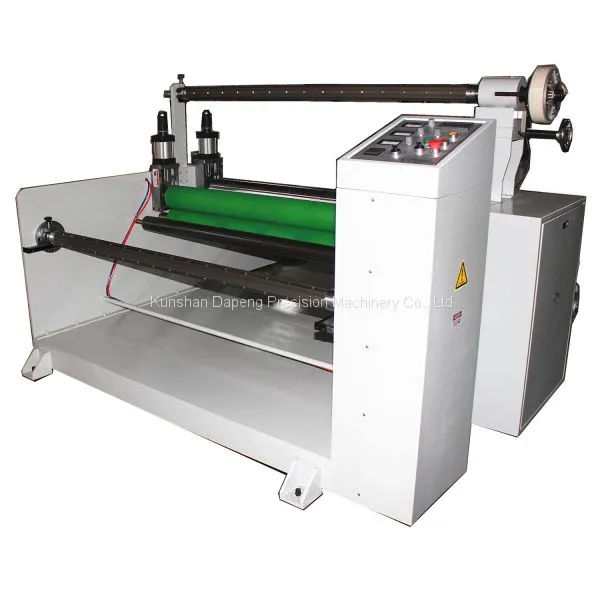

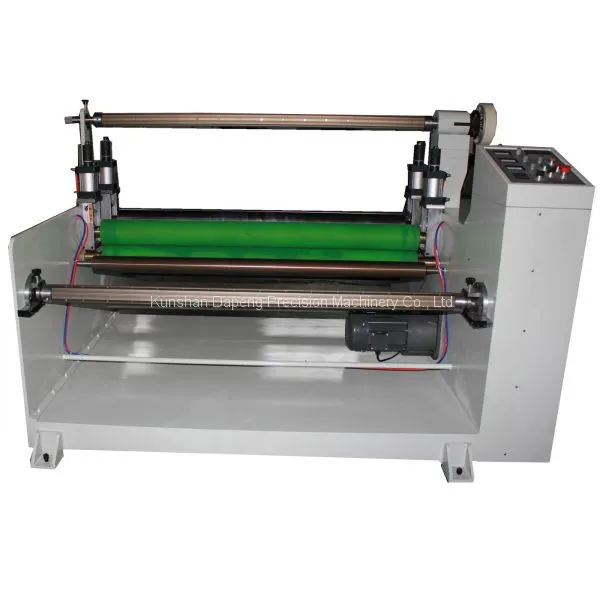

Help CenterAutomatic Tape and Protective Film Laminating Machine(with Heating or Non-Heating )
Related Products
-
DP-1300/1600 Multifunction Laminating and Slitting MachineNegotiableMOQ: 1 Set -
DP-650 Multifunction Laminating and Slitting Rewinding MachineNegotiableMOQ: 1 Piece
-
PP/PET/PVC/BOPP Laminating MachineUS$ 5000 - 9600MOQ: 1 Set
-
Multilayer Two Group Laminator Three Group Nip Roller Laminating MachineNegotiableMOQ: 1 Set
-
420 Laminating Machine for Laminate Plastic Film and Adhesive TapeUS$ 4000 - 9600MOQ: 1 Set
1.Technique Data
Machine Speed : 60m/min
Max material diameter : 1600mm
Feeding Diameter : 600 mm
Rewinding diameter : 450mm
Slitting accuracy :±0.1mm
Voltage:380V 50HZ
Main Motor Power :3kw
Total Power: 6kw
Raw material Max hole diameter: 3”
compress air source:（0.4-0.6）Mpa(customer-owned)
Finished products Min. Width by standard slitting :25MM
Main Machine size :2150*1600*1470mm
Feeding Machine size : 2150*1060*1220mm
Weight : 2.0Tons
2. FunctionProfile
frequency control of motor speed, operation more easy. Control moreaccurate.
Double receiving roller center take up , rewinding
Double receiving magnetic powder tension independent control, canrewinding at the same time , and also can individual use
Electronic meter counter with the function of automaticly count themeter and setting length, automatic stopping ,accuracy 0.01, error ±0.15M
Independent fan waste discharge。
Double motor configuration，The scrollof rewinding can be positive and negative transfer .
Send Inquiry to This Supplier
