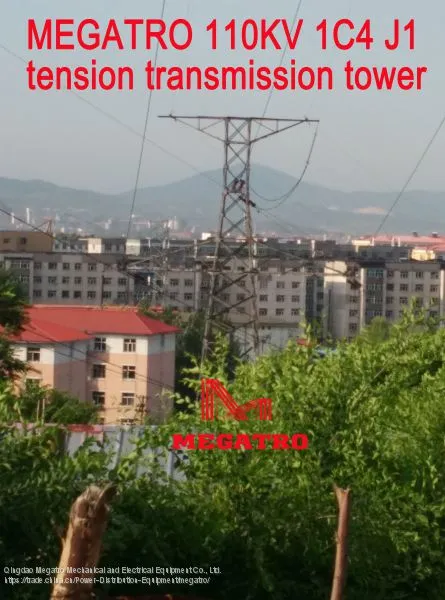

MEGATRO 110KV 1C4 J1 tension transmission tower

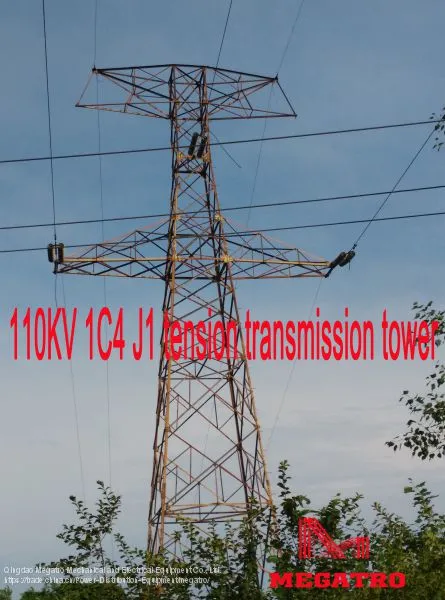

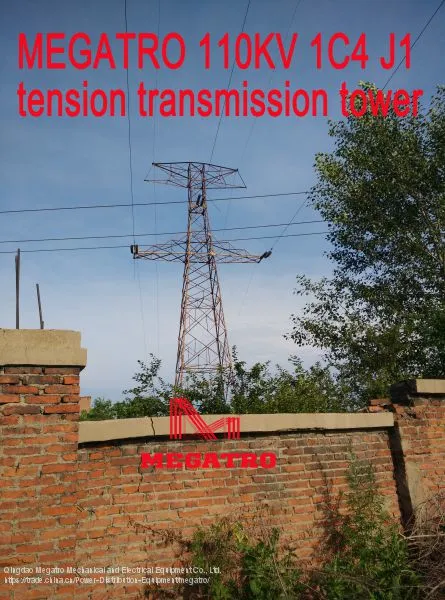

This photo refers to our 110KV 1C4 J1 tension transmission tower, it is widely used in our Chinese market. Some of technical features of this tower as follow:
1 climate condition
Item |
Temperature (℃) |
Wind speed (m/s) |
Ice thickness (mm) |
Max. temperature |
40 |
0 |
0 |
Mini. temperature |
-30 |
0 |
0 |
Ice thickness |
-5 |
10 |
10 |
Basic wind speed |
-5 |
27 |
0 |
Installation condition |
-15 |
10 |
0 |
Annual temperature |
5 |
0 |
0 |
Lightning overvoltage |
15 |
10 |
0 |
Operation overvoltage |
-5 |
15 |
0 |
Hot-line work |
15 |
10 |
0 |
2 tower design data
|
Tower type |
Nominal Height scope (mm) |
Nominal Height (mm)
|
Horizontal span (m) |
Vertical Span (m)
|
Angle º |
Insulator Type
|
Horizontal Span at angel condition |
1C4 J1 |
15～24 |
24 |
450 |
700 |
0～20 |
/ |
/
|
Conductor type: 2×LGL -300/40 |
OPGW: JLB-100 |
||||||
Tower estimated weight and foundation force
|
Tower Type |
Tower weight scope (kg) |
Foundation force scope (KN) |
|||||
Tmax |
Tx |
Ty |
Nmax |
Nx |
NY |
||
1C4 J1 |
567～709 |
54～56 |
67 |
658～709 |
70～72 |
70～72 |
|
