Globe Type Pneumatic Control Valve With Side Wheel,regulatign Valve

Globe Type Pneumatic Control Valve With Side Wheel,regulatign Valve thumbnail-1
Globe Type Pneumatic Control Valve With Side Wheel,regulatign Valve thumbnail-2
Globe Type Pneumatic Control Valve With Side Wheel,regulatign Valve thumbnail-3
Globe Type Pneumatic Control Valve With Side Wheel,regulatign Valve thumbnail-4
Globe Type Pneumatic Control Valve With Side Wheel,regulatign Valve thumbnail-5
Globe Type Pneumatic Control Valve With Side Wheel,regulatign Valve photo-1
Globe Type Pneumatic Control Valve With Side Wheel,regulatign Valve photo-2
Globe Type Pneumatic Control Valve With Side Wheel,regulatign Valve photo-3
Globe Type Pneumatic Control Valve With Side Wheel,regulatign Valve photo-4
Globe Type Pneumatic Control Valve With Side Wheel,regulatign Valve photo-5
US$ 1 - 99 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
GOOLE
Place of Origin:
China
Model Number:
CV3000
Contact Supplier Request Quote Chat Now
Yongjia Goole Valve Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name GOOLE
Place of Origin China
Model Number CV3000
Material Other, Wcb, S.S 304, Ss316, Ss304L, Ss316L
Application General
Structure Control
Standard or Nonstandard Standard
Pressure Medium Pressure
Power Pneumatic
Port Size DN15-400
Media Other, acid, gas,oil,water
Temperature of Media Medium Temperature

  • Model NO.:  GAZJHP,CV3000

  • Material: Wcb, CF8, CF8m

  • Pressure Rating: Pn16~100Class150~600

  • Valve Body Type: Straight-Through Type

  • Connection: Flanged, Butt Welded

  • Transport Package: Plywood Case

  • Origin: Wenzhou, Zhejiang, China

  • Power: Pneumatic

  • Nominal Diameter: Dn20~400mmNps3/4~16

  • Applicable Temperature Range: -196 Deg C~+566 Deg C

  • Actuator Type: Pneumatic Diaphragm Actuator

  • Trademark: GOOLE, OEM

  • Specification: CE, SGS

  • HS Code: 8481804090

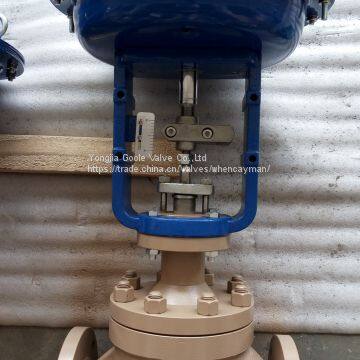

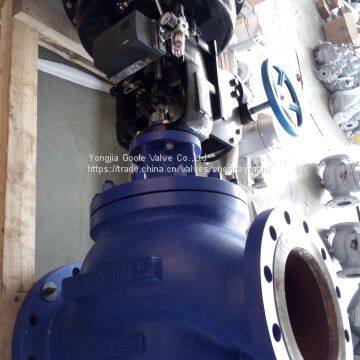

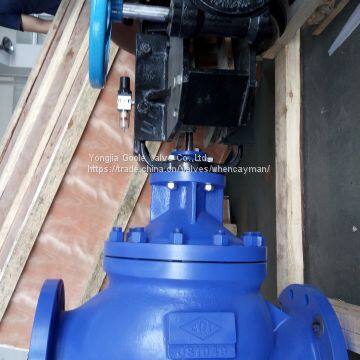

Globe Type Pneumatic Control Valve with side wheel

CV3000 Series Top Guided Pneumatic Control Valve Advantages
1, To achieve greater CV value and wider adjustable ratio
S shaped structure body is generated from the fluid analysis in a unique, can be suppressed by flow path shape complex and eddy current as well as flow path suddenly expand caused by complex and irregular flow phenomenon, which brings the medium flow, high efficiency in addition, guide wing cage type valve can be unstable fluid efficiently sleeve around the into the sleeve, due to these features, the CV3000 series valve with the original V series valve compared with a 30% increase in CV, and the adjustable ratio was enlarged from 30:1 to 50:1 (add attachments of up to 75:1), so it can be used to control a wide range of load changes.



2,High precision flow characteristics can bring the "ideal" flow
Adopting high precision flow characteristic curve as the standard technical parameters, to achieve the "ideal" flow theory. The process gain stability; computer simulation, valve opening degree of process control conditions, can realize flexible control.



3,Small volume and light weight
CV3000 series valve due to film the spring type small lose simple mechanical structure of the power of the executive body, thus successfully greatly reduced height, realize the miniaturization, according to multi spring diaphragm actuator and S shaped valve, control valve of CV3000 type and V type series valve compared can achieve 30% - 40% a small, light, efficient use of space has contributed to the.



4,Full specifications, wide use

CV3000 series valve has from the vacuum valve to the valve, varied from low to high temperature control. Widely used in petroleum refining, petrochemical, chemical fertilizer, chemical, steel, metallurgy, papermaking, power, light industry and other automation control process.


3. CV3000 Series Top Guided Pneumatic Control Valve (GAHTS) Main Parts Material:
Valve Body/Cap:    S.S304.
Valve Core/ Seat:  S.S304, Stellite.
Packing:                  PTFE.
Gasket::                  Graphite.
Membrane Cover: A3.
Spring:                    60Si2Mn.
Valve Stem:            S.S 304.
Nut/Bolt::                 S.S 304.



4. CV3000 Series Top Guided Pneumatic Control Valve (GAHTS)  Main Dimensions:

Globe Type Regulating Valve with Single Seat

DN

10

12

15

20

25

32

40

50

   65

80

100

125

150

200

250

300

Cv

Linear

1.8

2.8

4.4

6.9

11

17.6

27.5

44

69

110

176

275

440

690

1100

1760

Equal Percentage

1.6

2.5

4.0

6.3

10

16

25

40

63

100

160

250

400

630

1000

1600

Movement L(mm)

10

16

25

40

60

100

Effective Area(cm2)

280

100

600

1000

1600

SignalRange(Kpa)

20~100, 40~200,80~240;20~60,60~100

Power Source (MPa)

0.14~0.4

Flow Characteristic

Linear or Equal Percentage

Adjustable Ratio

50:1

Working Temp. (ºC)

Normal Temp,

-20~200, -40~250, -60~450

Cooling Type

-40~450, -60~450

High Temp

450~560

Low Temp.

-60~100, -100 ~-200, -200 ~-250
