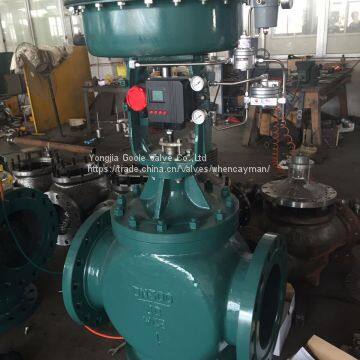

Help CenterButt-Welded Pneumatic Globe Control Valve With Side Hand Wheel
Related Products
-
Diaphragm Type Pneumatic Globe Control Valve With Top HandwheelUS$ 1 - 99MOQ: 1 Piece -
Diaphragm Type Pneumatic Globe Control Valve With Side HandwheelUS$ 1 - 99MOQ: 1 Piece
-
Manual Operated Balanced Labyrinth Control ValveUS$ 1 - 99MOQ: 1 Piece
-
Thermostatic Self-Actuated Temperature Regulating Valve,Self-Actuated Control ValveUS$ 1 - 99MOQ: 1 Piece
-
Self Actuated Steam Pressure Regulating Valve,Self Actuated Control ValveUS$ 1 - 99MOQ: 1 Piece
Power: Pneumatic
Nominal Diameter: Dn20~400mmNps3/4~16
Applicable Temperature Range: -196 Deg C~+566 Deg C
Actuator Type: Pneumatic Diaphragm Actuator
Trademark: GOOLE, OEM
Specification: CE, SGS
HS Code: 8481804090
Material: Wcb, CF8, CF8m
Pressure Rating: Pn16~100Class150~600
Valve Body Type: Straight-Through Type
Connection: Flanged, Butt Welded
Transport Package: Plywood Case
Origin: Wenzhou, Zhejiang, China
Butt-weelded Pneumatic Globe Control Valve With Side Hand Wheel (GHTC)Characteristics:
This product is composed of the pneumatic multi-springs, pneumatic actuator and the low flow resistance sleeve. This valve uses the balanced valve core, the unbalanced force is small, the permission pressure differential is big, and operation is steady. Compared with the ordinary single and double seat-regulating valve, it has low noise, simple structure and convenient assembling and dismantling characteristics.
Its valve shape is small, the body is light, the performance is good, and the capacity is big. So it's the new type general regulating valve product. It is suitable for the common fluid medium and techniques condition industrial control system.
Pneumatic Diaphragm Control Valve Globe Type (GHTC) Specifications:
|
DN |
20~450mm |
|
PN |
Class150~2500 |
|
Applicable temperature range |
-30ºC~260ºC (single-seat structure) |
|
-196ºC~570ºC(double-seat structure) | |
|
Trim features |
sleeve guided type, balanced trim structure |
|
Body type |
straight-through type, angle type |
|
Bonnet type |
standard type, heat dissipation type, cryogenic type |
|
Flow characteristic |
equal percentage, Linear, quick open |
|
Shut-off class |
ASME B16.104 V (standard metal seat) |
|
AS ME B16.104 V I (shut-off soft seat) | |
|
Pipe connection type |
flange type, Butt welding type |
|
Actuator type |
pneumatic diaphragm actuator |
|
pneumatic piston actuator | |
|
Electric actuator |
Ms Cathy
Yongjia Goole Valve Co.,Ltd
Heyi Industrial Zone, Oubei, Wenzhou,325105, China
Tel: +86-577-57781015, Fax: +86-577-67985602
Mob: +86 13868628912,
Web:
