Model NO.: GAZZWP
Actuator: Self-Actuated
Material: C.S
Medium Temperature: Below 350 Deg C
Application: Industry

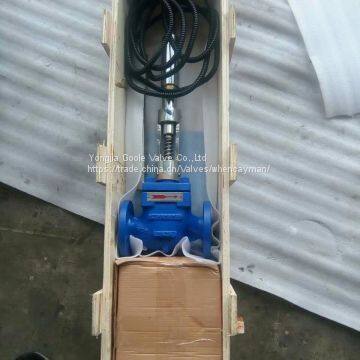

Transport Package: Plywood Case
Origin: Wenzhou, Zhejiang, China
Category: Control Valve
Connecting Type: Flange
Medium: Non-Corrosive Liquid, Gas and Steam,.etc
Usage: Flow Control
Trademark: Goole, OEM
Specification: CE, SGS
HS Code: 8481804090

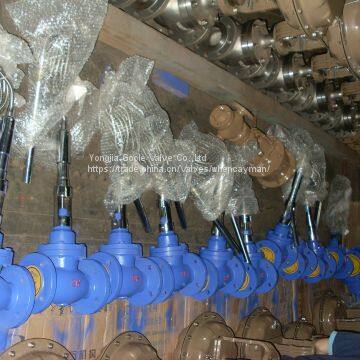

GAZZWP Self-Actuated Temperature Regulating Valve ( Thermostatic Temperature Control Valve )
Technical Specification
Design Reference |
GB/T17213/IEC 60534 GB/T4213 |
Design Standard |
GB/T17213/IEC 60534 GB/T4213 |
Face to Face Length |
GB/T17213.3-2005/IEC 60534-1:2000 |
Flange Dimension |
GB 9113.1-2000 |
Test & Inspection |
GB/T17213.4-2005/IEC 60534-4:1999 |
GAZZWP Self-Actuated Temperature Regulating Valve ( Thermostatic Temperature Control Valve )
Materials of Major Parts
No |
Parts Name |
Material (ASTM) |
1 |
Body |
A216 WCB |
2 |
Seat |
A182-F304 |
3 |
Stem |
A182-F304 |
4 |
Spring |
A182-F304 |
5 |
Nut |
A182-F304 |
6 |
Packing |
PTFE |
7 |
Valve Bonnet |
A216 WCB |
8 |
Actuator (Sensor) |
Discreteness |
Note: Major Parts of the valve Series and materials of sealing surface differs according to different working condition and customer's special requirements.
GAZZWP Self-Actuated Temperature Regulating Valve ( Thermostatic Temperature Control Valve )

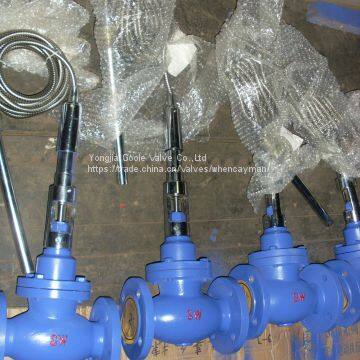

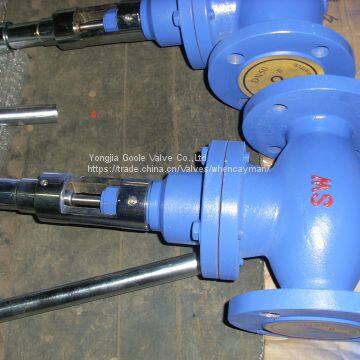

Product Description:
The Self Operated Temperature regulating valve is mainly applied in urban heating system and temperature regulating system of automatic control systems in other industries, which may be used for automatic control of temperature of all kinds of heating exchange and cooling devices in an environments with maximal temperature of 350ºCand media of non-corrosive liquid, gas and steam. There are two models: that which will close/open when temperature rises.
GAZZWP Self-Actuated Temperature Regulating Valve ( Thermostatic Temperature Control Valve )
Parameter table of valve
DN (mm) |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
PN(Mpa) |
1.6MPa, 2.5Mpa, 4.0Mpa |
||||||||||
Kv |
7 |
11 |
2 |
30 |
48 |
75 |
120 |
190 |
300 |
480 |
760 |
Max Pressure Differential Pa (Mpa) |
1.6MPa |
1.5Mpa |
0.5Mpa |
||||||||
TemperatureRange(ºC) |
-20~50, 20~90, 40~100, 50~120, 60~130, 110~180, 180~250 |
||||||||||
Adjust Precision |
±5% |
||||||||||
Allowable Overload (c) |
+50 |
||||||||||
Ambient Temperature (ºC) |
-40~80 |
||||||||||
Seat Leakage |
GB/T17213.4-2005/IEC 60534-4:1999 |
||||||||||
GAZZWP Self-Actuated Temperature Regulating Valve ( Thermostatic Temperature Control Valve )
Parameter table of Actuator
Model |
T06 |
T17 |
TemperatureRange(ºC) |
-20~50, 20~90, 40~100, 50~120, 60~130 |
|
SpecialTemperature Range(ºC) |
110~180, 180~250 |
|
Allowable Overload (c) |
=50 |
|
Time Constant (s) |
120 |
20 |
Material of Temperature Sensor |
Nickel Copper Alloy |
|
Capillary Length (m) |
5, 10, 15 |
|
Model |
Size (mm) |
Weight (Kg) |
|||
H |
H1 |
R |
d |
||
T06 |
380 |
280 |
1" |
24 |
3.0 |
T17 |
500 |
280 |
1" |
30 |
3.5 |
Temperature Regulating Valve is generally applied in the conditions with slow change of temperature other than conditions with intense change of temperature or frequent change of parameters.
The temperature sensor of T06 executive unit will not directly contact the medium and thus it is convenient for maintenance but with slow response speed, appropriate for controlling liquid media. While the temperature sensor of T17 executive unit will directly contact the medium with a large area for temperature sensing and fast response speed, but inconvenient for maintenance. It's appropriate for controlling gas temperature, and sometimes for controlling liquid temperature.
