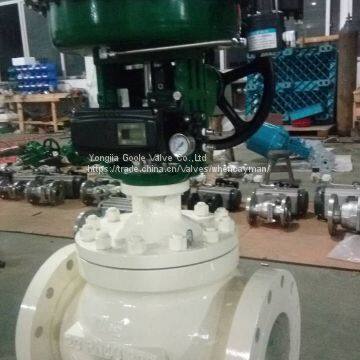

Diaphragm Type Pneumatic Globe Control Valve With Side Handwheel

Name: Diaphragm Type Pneumatic Globe Control Valve With Side Handwheel
Brand: GOOLE
SKU: 154110964
Availability: InStock

US$ 1 - 99 MOQ: 1 Piece

Key Specifications

Brand Name:

GOOLE

Place of Origin:

China

Model Number:

HCB HTS

Yongjia Goole Valve Co.,Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

7 days

Brand Name GOOLE

Place of Origin China

Model Number HCB HTS

Material Other, Wcb, S.S 304, Ss316, Ss304L, Ss316L

Application General

Structure Control

Standard or Nonstandard Standard

Pressure Medium Pressure

Power Pneumatic

Port Size DN15-400

Media Other, acid, gas,oil,water

Temperature of Media Medium Temperature

Certification: GS, RoHS, SGS, CE, ISO9001
Standard: Standard
Power: Pneumatic
Nominal Diameter: Dn20~400mm\Nps3/4~16
Applicable Temperature Range: -196 Deg C~+566 Deg C
Actuator Type: Pneumatic Diaphragm Actuator
Trademark: GOOLE, OEM
Specification: CE, SGS
HS Code: 8481804090
Diaphragm Type Pneumatic Globe Control Valve with Side handwheel Characteristics:
This product is composed of the pneumatic multi-springs, pneumatic actuator and the low flow resistance sleeve. This valve uses the balanced valve Disc, the unbalanced force is small, the permission pressure differential is big, and operation is steady. Compared with the ordinary single and double seat-regulating valve, it has low noise, simple structure and convenient assembling and dismantling characteristics. The extended Stem can also be used for low temperature
Its valve shape is small, the body is light, the performance is good, and the capacity is big. So it's the new type general regulating valve product. It is suitable for the common fluid medium and techniques condition industrial control system.

Diaphragm Type Pneumatic Globe Control Valve with Side handwheel Specifications:

DN	20~450mm
PN	Class150~2500
Applicable temperature range	-30ºC~260ºC (single-seat structure)
Applicable temperature range	-196ºC~570ºC(double-seat structure)
Trim features	sleeve guided type, balanced trim structure
Body type	straight-through type, angle type
Bonnet type	standard type, heat dissipation type, cryogenic type
Flow characteristic	equal percentage, Linear, quick open
Shut-off class	ASME B16.104 V (standard metal seat)
Shut-off class	AS ME B16.104 V I (shut-off soft seat)
Pipe connection type	flange type, Butt welding type
Actuator type	pneumatic diaphragm actuator
	pneumatic piston actuator
	Electric actuator
