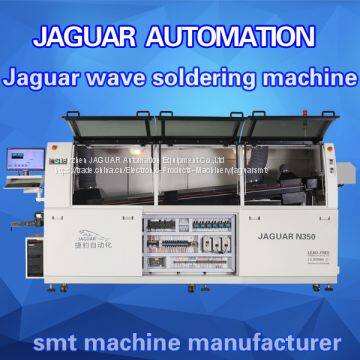

Help CenterHigh Quality Good Price JAGUAR Double Waves Soldering Equipment
Related Products
-
Good Quality Double Waves Soldering Tools And MaterialsUS$ 19000 - 21000MOQ: 1 Set -
Wave Soldering Mahcine for DIP PCB Soldering MachineUS$ 5000 - 8000MOQ: 1 Piece
-
Wave Soldering Equipment for Pcb Soldering Making MachineUS$ 7000 - 10000MOQ: 1 Set
-
Professinonal Smt Equipment Manufacturer Wave Soldering Machine Factory PriceUS$ 10000 - 18000MOQ: 1 Set
-
PC Control Lead Free Soldering Machine Wave SolderUS$ 10000 - 18000MOQ: 1 Set
Specification:
Model No. |
JAGUAR N350 |
Number of heating zones |
3 |
Length of heating zones |
1600mm |
Body size |
3300(L)*1400(W)*1560(H) |
Outside dimension |
4100(L)*1400(W)*1560(H) |
Weight |
1100KG |
Total/running power |
24KW/6-8KW |
Air supply |
0.5MPa |
Preheating method |
Micro air |
Preheating power |
220V 8KW |
Control method |
PC +PLC |
Range of temp. control |
Room temperature---300ºC |
Preheating time |
About 10-15mins for setting 150ºC |
Solder type |
Lead-free |
Solder pot capacity |
320KG |
Solder pot temperature |
300ºC |
Solder power |
380V 12KW |
Solder temp. control method |
PID&SSR |
Wave crest drive power |
1KW 220V |
Warm-up time of solder |
About 120mins for setting 250ºC |
PCB width |
50-300mm |
Convey speed |
300-2000mm/min |
Convey direction |
L→R (R→L optional) |
Convey angle |
4-7 º |
Flux pressure/capacity |
3-5 bar/6.5L |
1.Efficient, energy-saving, lead-free, environment-friendly, safe and brand-new design, simple operation, convenient maintenance.
2.Automatic power system, frequency converter control, automatic board input system.
3.Flux sprays system using scanning spray nozzle, Japanese nozzles and rodless pneumatic cylinders and PLC control, accurate and reliable.
4. Preheating system uses three independent temperature control so that ensure the excellent heat preservation, temperature uniformity, temperature difference no more than ±2ºC.
5.Special alloy transportation chain claws, non-stick tin and ensures the quality of welding PCB board.
