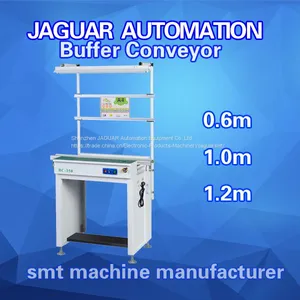

SMT Automatic conveyor for pcb assembly
Features:
1.Elaboration M lead screw, hand width-adjusting system to make 2 conveyor tracks move smoothly.
2.Imported circular special belt and patent tracks, can solve thin card guide PCB problem, improve fluency of connection.
3.Standard signal of industry for equipments, SMEMA can connect with others automatically on line.
4.Machine area made by thickened models or section Aluminum, with superior materials durable service and seed firm.
5.Applicable to production line of SMT and AI, facilitate to connection of equipments before and after.
6.When PCB move interposition during transmitting, it has the function of photo electricity automatic inspection and manual releasing.
7.Increasing weight at the bottom to make machine uneasy to be moved, make connection more smoothly.
Specification:
Brand |
JAGUAR |
Model |

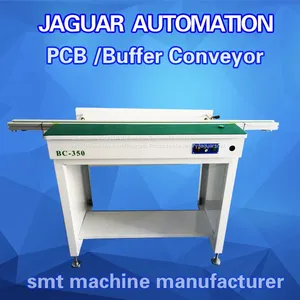

BC-350 |
Outer Dimension |
500*700*940mm-1500*700*940mm |
PCB Width |
50~350mm |
PCB Direction |
L to R or R to L |
Speed |
adjustable |
Motor |
1P AC220V 50/60HZ 15W |
Power Supply |
1P AC220V 50/60HZ |
Rail length |
up to your request |
Control System |
PLC |
Foot switch |
standard |
Lighting |
Option |
SOP Rack |
Option |
Platform material |
ESD Rubber Mat |
Communication plug |
SMEMA Signal plug for up & down line |
Weight |
Approx.55Kg-85kg |
1, our service tenet: fast, thoughtful and thorough
2, service goals: service quality to win the user satisfaction
3. the service efficiency: the warranty period or the warranty as equipment failure, the supplier in the receipt of the notification, the maintenance personnel in one hour to respone.
4, service principle: product warranty period of 12months, in the guarantee period the supplier will free maintenance and replacement of quality caused by the damaged parts.
JAGUAR Automation - one of the well-known lead-free smt machines manufacturers in China, Founded in 2009, headquartered in Shenzhen.
JAGUAR has been committed to lead-free equipments research and development, and manufacturing lead-free reflow oven, wave soldering machines and other lead-free electronic devices since foundation. Currently has the R8 series of high-end dual-track lead-free reflow soldering, the F8 series of lead-free reflow ovens, A8 Series of lead-free reflow solder ovens and N series wave soldering equipments.
Jaguar products: Fully Automatic smt stencil machine,smt solder paste printing machine, screen printing equipment solder paste printer, stencil printer, SMT Stencil Printer, Semi-Automatic Printing machines, PCB buffer conveyor, reflow ovens, lead-free reflow solder ovens, reflow soldering ovens,wave solder or wave soldering machines, smt chip mounter,Smt Pick and Place Machine, smt machine/Smt Equipment and smt peripheral equipments.
1) This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? Very easy and flexible !
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment
And 100% quality check before shipping.
F.Send your order by air or by sea.
