professinonal smt equipment manufacturer wave soldering machine factory price
Specification:
Model No. |

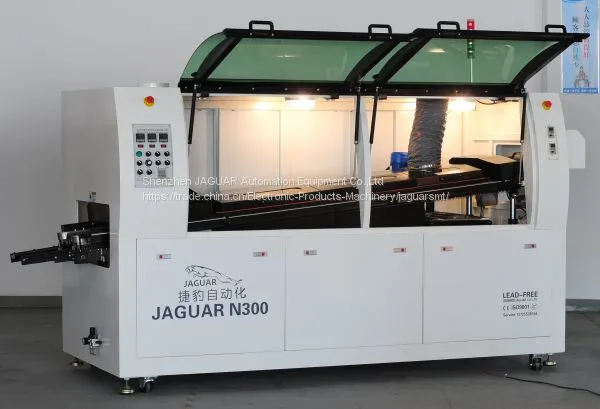

JAGUAR N300 |
Number of heating zones |
2 |
Length of heating zones |
1200mm |
Body size |
2800(L)*1250(W)*1560(H) |
Outside dimension |
3600(L)*1250(W)*1560(H) |
Weight |
1000KG |
Total/running power |
19KW/5-7KW |
Air supply |
0.5MPa |
Preheating method |
IR(standard)/Hot air |
Preheating power |
220V 6KW |
Control method |
PC +PLC/press keys/Touch screen |
Range of temp. control |
Room temperature---300ºC |
Preheating time |
About 10-15mins for setting 150ºC |
Solder type |
Lead-free / Sn-Pb |
Solder pot capacity |
280KG |
Solder pot temperature |
300ºC |
Solder power |
380V 9KW |
Solder temp. control method |
PID&SSR |
Wave crest drive power |
1KW 220V |
Warm-up time of solder |
About 120mins for setting 250ºC |
PCB width |
50-300mm |
Convey speed |
0-1800mm/min |
Convey direction |
L→R (R→L optional) |
Convey angle |
4-7 º |
Flux pressure/capacity |
3-5 bar/5.2L |
INTRODUCTION:
1.Efficient, energy-saving, lead-free, environment-friendly, safe and brand-new design, simple operation, convenient maintenance.
2.Automatic power system, frequency converter control, automatic board input system.
3.Flux sprays system using scanning spray nozzle, Japanese nozzles and rodless pneumatic cylinders and PLC control, accurate and reliable.
3.Preheating system uses three independent temperature control so that ensure the excellent heat preservation, temperature uniformity, temperature difference no more than ±2ºC.
4.Special alloy transportation chain claws, non-stick tin and ensures the quality of welding PCB board.
5.Tin stove adopts imported high frequency conversion motor independent control, stable performance.
6.Lead-free solder furnace with independent design, environmental protection and safety,
7.easy to clean.
8.Tin stove preheating furnace uses high-speed PID and 2 independent infrared heating (IR heating) control.
9.Time can be controlled, we can preset switch functions, tin stove can heat within 90 minutes.
10.With black box memory function, the machine can always store the production management records, improve work efficiency.
11.Automatic claw cleaning function ensure the cleanliness of claws.
12.Reasonable design and sensitive fault security alarm system ensure the stable performance and operators’ safety.

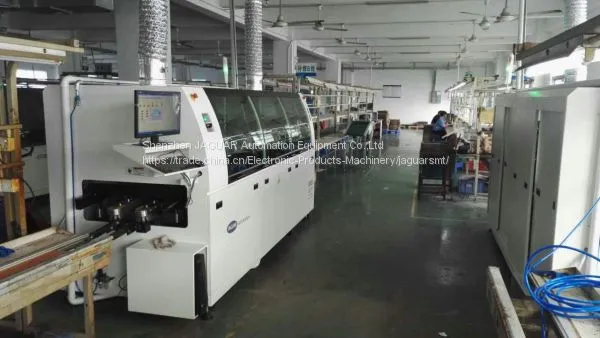

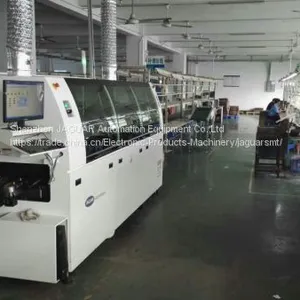

Company Pictures:
FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
