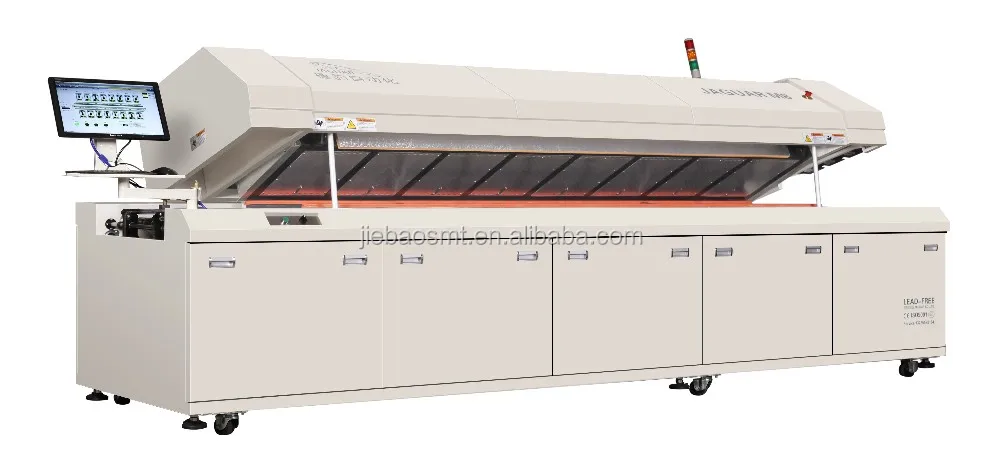

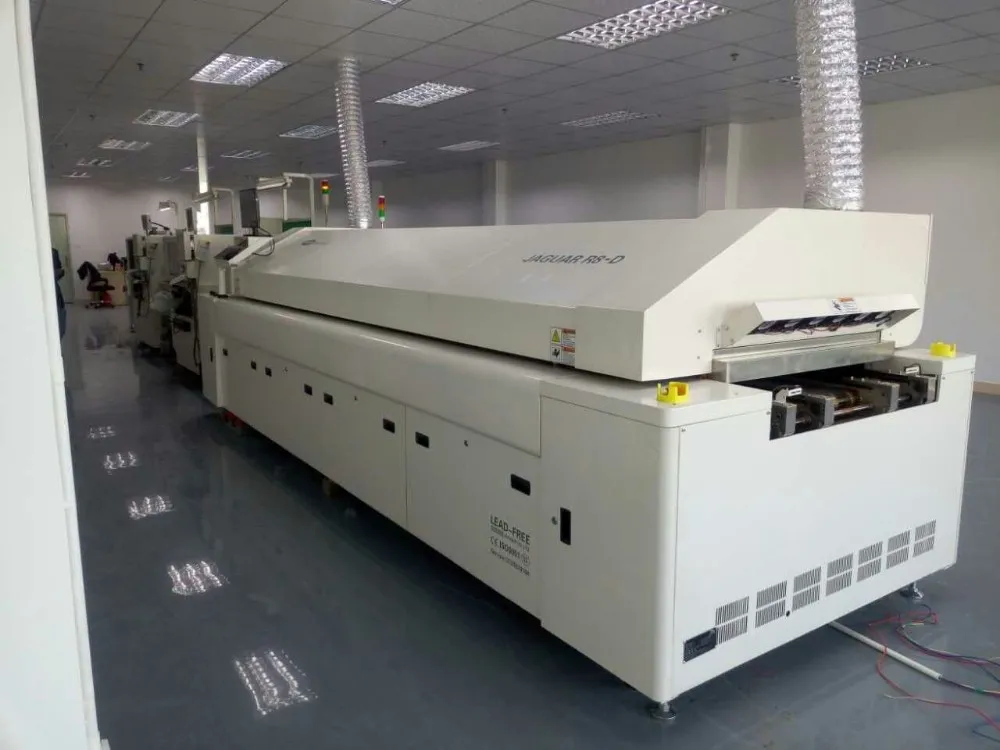

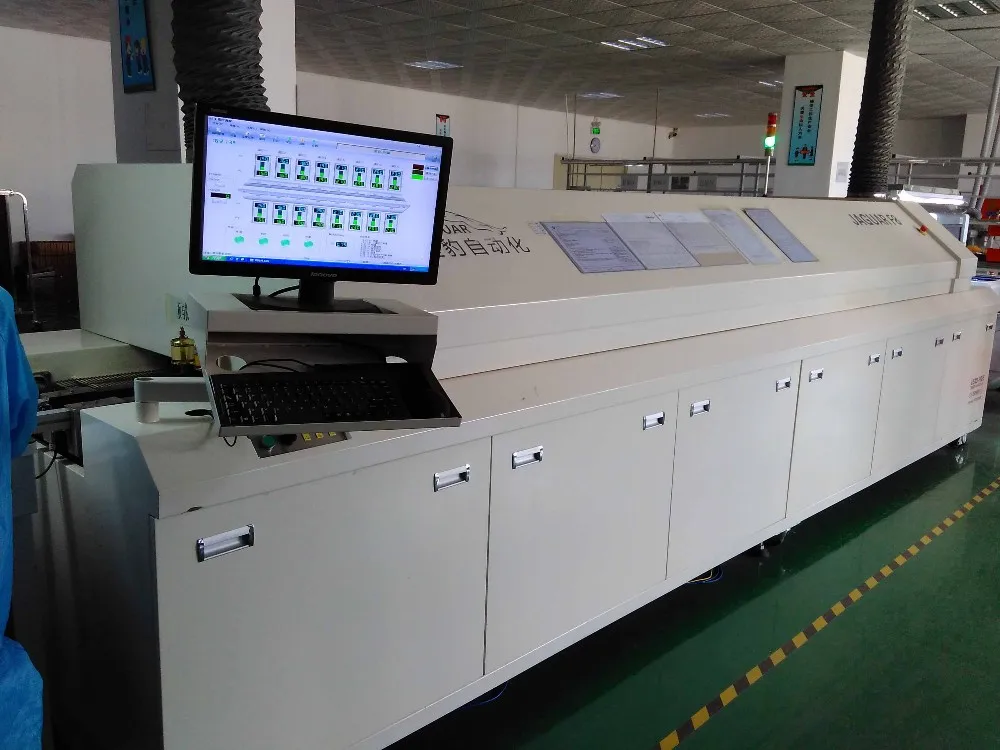

High Quality Good Price Eight Heat Zones PCB Reflow Soldering Oven Machine
Up and bottom with 16 heating zones
Specification:
Model |

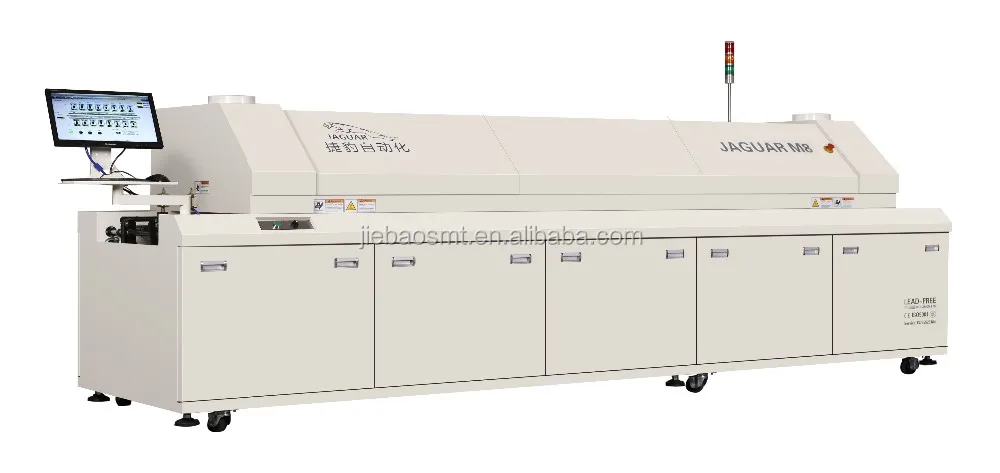

JAGUAR M8 |
|
|
Heating System |
Number of heating zones |
UP 8/BOTTOM8 |
Length of heating zones |
2900MM |
|
Heating mode |
hot air |
|

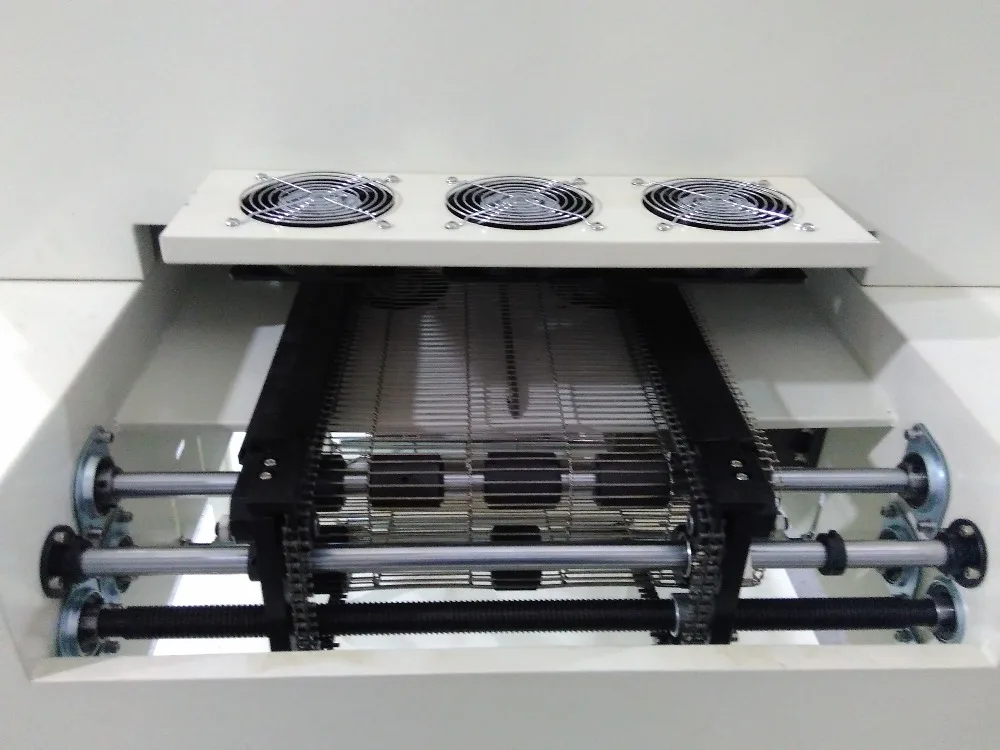

Cooling Mode |
Force air |
|
|
Conveyor System |
Max. Width of PCB |
350mm |
Mesh belt width |
400mm |
|
Transmission Direction |
L→R(or R→L) |
|
Transmission Net Height |
880±20mm |
|

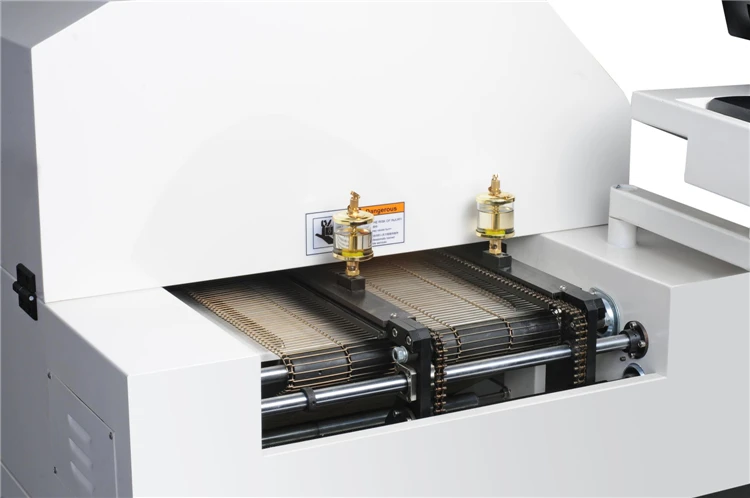

Transmission type |
Mesh and chain |
|
Range of rail width |
0-300mm |
|
Conveyor speed |
0-1500mm/min |
|
Auto/manual Lubrication |
standard |
|
Upper hood method |
Manual(option:auto) |
|
Fixed rail side |
Front rail fixed(option: rear rail fixed) |
|
Components high |
Top and bottom 25mm |
|
|
Control system |
Power supply |
5line 3phase 380V 50/60Hz |
Total power |
40kw |
|
Starting power |
38kw |
|
Normal power consumption |
4KW |
|
Warming time |
About 20 mins |
|
Temp. setting range |
Room temperature-300℃ |
|
Temp. control method |
PLC & PC |
|
Temp. control precision |
±1℃ |
|
Temp. deviation on PCB |
±2℃ |
|
Data storage |
Process Data and status storage(80GB) |
|
Nozzle plate |
Aluminum Alloy Plate |
|
Abnormal Alarm |
Abnormal temp. (extra-high/extra-low temp.) |
|
Board dropped alarm |
Tower light: Yellow-warming, Green-normal, Red-abnormal |
|
|
General |
Dimension(L*W*H) |
4400×1100×1490mm |
Weight |
1000KG |
|
Color |
Computer gray |
|
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. Gold supplier on Alibaba !
B. Trade assurance to US$54,000 !
C. Best price & Best shipping & Best service !
