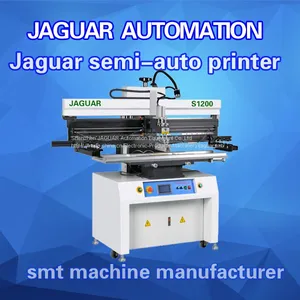

Help CenterPcb Printing Machine SMD Stencil Printer
Related Products
-
SMT Solder Paste Stencil Printing Machine For PCB Soldering ProductionUS$ 4700 - 5500MOQ: 1 Set -
Full-auto Screen Printing Machine High Precision and Stability PrinterUS$ 33500 - 38000MOQ: 1 Set
-
Full Automatic Screen Printing Machine F850US$ 55000 - 58000MOQ: 1 Set
-
SMT Semi-automatic Solder Paste Screen Printer For PCBA AssemblyUS$ 3800 - 4800MOQ: 1 Set
-
PCBA Assembly SMT Reflow Oven Machine for EMS FactoryUS$ 18000 - 20000MOQ: 25 Sets
Feature:
1.Using precision guide rail and the import motor to drive the blade seat conversion, printing, and high accuracy.
2.Printing scraper can rotate 45 degrees fixed up, easy printing stencil and squeegee cleaning and replacement.
3.Block can be adjusted before and after the blade, to choose the right printing position.
4.Combined with a fixed groove printing platen and PIN, easy installation and adjustment, for single, double sided printing.
5.School Edition way to move a steel mesh, combined with printed (PCB), X, Y, Z. Convenient fine adjustment.
6.Can be set to one-way and two-way, a variety of printing methods.
7.With the automatic counting function to facilitate the production of output statistics.
8.Adjustable blade angle, steel blade, rubber scraper are suitable.
9.Touch screen with a screen saver function, the time can be adjusted to protect the touch-screen life.
10.Printing speed display, can be adjusted
Specifications:
Model |
JAGUAR S1200 |
Dimensions |
2000×720×1650mm |
Platform size |
300×1250mm |
PCB size |
250×1200mm |
Printing speed |
0-8000mm/min |
PCB thickness |
0.2-2.0mm |
PCB fine tuning range |
Front/side±10mm |
Power supply |
1PAC220V 50/60HZ |
Platform height |
850±20mm |
Repeating precision |
±0.01mm |
Printing Accuracy |
±0.02mm |
Positioning mode |
Outside/Reference hole |
Weight |
Approx.380Kg |
