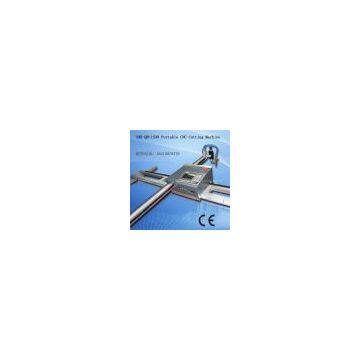

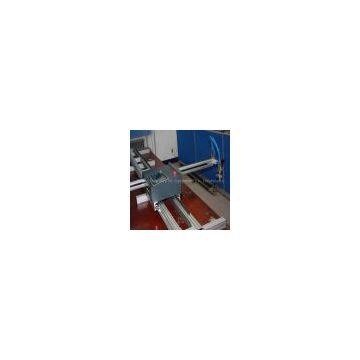

SNR-QB-1530 Portable plasma cutting machine
1Portable and Lightweight
2Affordable & Easy to Use
3USB Port
4Economical
5Indoor and Outdoor
6CE Certificate
7Reliable and Stable CNC Operation.
8FastCAM Cutting Software
Seigniory portable CNC Cutting Machine can cut any complex plane figures as the large-sized gantry CNC cutting machine and support both flame torch and plasma cutter. The compact design and rational structure make it lightweight, small size and easy to move. It is usable both indoors and outdoors.
Application
SEIGNIORY portable CNC Cutting Machine is an ideal equipment for the small and medium-scale enterprises. It can be widely applied in industries such as automobile, shipyard, locomotive, petrochemical, aviation and aerospace, boiler and pressure vessel, machinery, decoration and large-size metallic signs. The cutting and blanking of metal plates such as carbon steel (flame cutting) and stainless steel, copper, aluminium etc. (plasma cutting) can all be peformed by SEIGNIORY portable CNC cutting machine. It is a replacement of hand-held flame torch, hand-held plasma cutter, profile and pantographic shape cutting machines.
Easy to start, programme and nest
Drawing made by the provided FastCAM software is automatically converted into a cutting programme.The FastCAM drawing of part is prepared,nested and directly transformed into cutting-required G-code file after suitable selection of programming parameters. The G-code file is then stored form the PC to a memory key which will be plugged in the USB port of SEIGNIORY. The file is loaded and then makes the cutting start. Drawing made using AutoCAD are translated into cutting programme by FastCAM and are directly usable by SEIGNIORY portable CNC Cutting Machine.
Convinient and Flexible File transmission
Supporting USB port, files can be transmitted easily form a PC to the machine. You can simply make the drawing on your laptop, save the programme to the USB memory stick provided and transfer the file into the SEIGNIORY CNC cutting machine.
Seigniory Portable CNC Cutting Machine Tech Data (standard)
|
Model |
SNR-QB-1530 |
|
Power Supply Voltage |
220V/110V |
|
Power Supply Frequency |
50HZ / 60HZ |
|
Rated Power Supply |
160W |
|
LCD Display Dimension |
7.0Inches |
|
Effective Cutting Width (X axis) |
1200mm(47''), 1300mm(51''), 1500mm(59"), 1600mm(63") |
|
Effective Cutting Length (Y axis) |
2000mm(78''), 3500mm(138"), 5000mm(197"), 6000mm(236") |
|
Cutting Speed |
0-4000mm per minute |
|
Plasma Cutting Thickness |
2--20mm ( Depends on plasma power source capacity) |
|
Flame Cutting Thickness |
6--150mm |
|
Certificate |
CE, ISO9001:2000 |
|
Cross Beam Length |
1700mm |
|
Longitudinal Rail Length |
3500mm |
|
Longitudinal Rail Width |
320mm |
|
Host Machine Dimension (L*W*H mm) |
508*344*305 |
|
Cross Beam Weight |
25.3kg |
|
Host Machine Weight |
30.7kg |
|
Longitudinal Rail Weight |
89kg |
|
Total Net Weight |
145kg |
|
Gas Pressure |
Max. 0.1Mpa |
|
Oxygen Pressure |
Max. 1.5Mpa |
|
Cutting Gas |
Acetylene/Propane/Methane |
|
Plasma Power Source |
THERMADYNE Cutmaster151 / Hypertherm PowerMAX 1000/1250/1650 |
|
Plasma Air |
Only pressed Air |
|
Plasma Air Pressure |
Max. 0.8Mpa |
|
Numerical Control System Technical Description: |
|
Model: SNR-QB-1530 |
|
1) 7.0' LCD display; |
|
2) Film-cover operation key; |
|
3) USB port supports program transfer; |
|
4)32M Memory for users' program; |
|
5) Built-in Library of commonly used figures; |
|
6) Break-point & power-cut restoration; |
|
7) Return to reference point; |
|
8) Mirror image; |
|
9) Two-axes straight line and arc interpolation; |
|
10) Pause, forward, backward, and speed regulation while machine working. |
