Beijing Seigniory Servo Motor SNR-SK (1.5x3.0M) Mini Metal Portable Cnc Plasma Cutting Machines

Beijing Seigniory NC Equipment Co., Ltd.
Beijing Seigniory Servo Motor SNR-SK (1.5x3.0M) Mini Metal Portable Cnc Plasma Cutting Machines thumbnail-1
Beijing Seigniory Servo Motor SNR-SK (1.5x3.0M) Mini Metal Portable Cnc Plasma Cutting Machines thumbnail-2
Beijing Seigniory Servo Motor SNR-SK (1.5x3.0M) Mini Metal Portable Cnc Plasma Cutting Machines photo-1

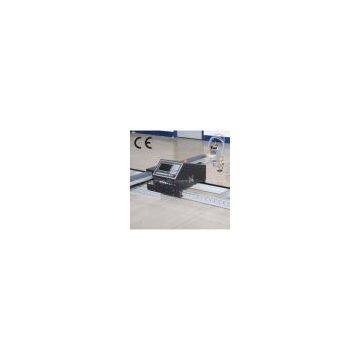

Beijing Seigniory Servo Motor SNR-SK (1.5x3.0M) Mini Metal Portable Cnc Plasma Cutting Machines photo-2
US$ 6700 - 6700 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
beijing seigniory
Place of Origin:
China
Model Number:
SNR-SK
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name beijing seigniory
Place of Origin China
Model Number SNR-SK
servo motor and servo driver,the first one in worldwide
1.Faceful man-machine conversation;7.0 inch color screen
2.The beam can be disassebly,easy to package and shipment
3.Sealing perfect,dust-proof.
4.The FastCAM software for free
5.Impact,light,smart and portable.
Description:
1 The overall processing machine base:good stability, not deformed;
2 Using beeline and double-slide lead rails, high accuracy;
3 A detachable structural design for arm, convenient transportation and installation;
4 Beautiful structure, coordination, light weight;
5 Using CNC of SF-2012 AH 7.0 inch color display
6 Machine rail is made in steel or aluminum.
The following character :
High reliability, such as anti-plasma jamming, and lightning strike, Surge;
32-64M large users program storage capacity;
In both English and Chinese interface conversion;
During plasma processing, auto-complete the speed control of the corner;
Rich software features and practical flame / plasma cutting process;
In particular small line section procedure processing can be widely used
in metal materials and advertisement, Iron;
4-axis can be expanded linkage functions;
Dynamic graphics, zoom in 1-8X the graphics, fixed point of automatic tracking;
Using USB Flash Drive reading procedure and timely upgrade software;
Built-in the rich graphics, makes programming easy to learn.

Parameter
Input voltage: 220V Gas depression: Max0.1Mpa
Power frequency: 50HZ Oxygen deprission:Max1.5Mpa
Rated power: 160W Available gas:acetylene,proagas,methane
Display:7.0inch Cutting type: flame,plasma
Total net weight:140Kg Total gross weight:185KGS

Technical Data:
It can be used for cutting any shape that consists of arc and straight lines
Precision: National standard JB/T 10045.3-99
Not occupying fixed place.
Effective cutting width: 0-1500mm
Effective cutting length: 0-3000mm
Effective cutting thickness: Plasma cutting 0.1-50mm (Up to the plasma power)
Speed :   Plasma cutting 0-4000 mm/min unload > 8m
