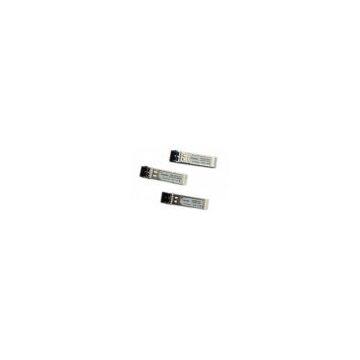

SFP Tranceiver FS-1310-1100
- T/T L/C D/P D/A
- 7 days
You May Like
Product Description
FS-1310-1100
1.25 Gbps SFP Optical Transceiver, 20km Reach
|
Product View |
|||
|
P/N： |
FS-1310-1100 |
Data Rate： |
1.25Gbps |
|
Distance： |
20km |
LD： |
1310nm FP |
|
PD： |
PIN |
TX Power： |
-9～-3dBm |
|
RX Sens： |
-23dBm |
Temp： |
CNT |
Features
Dual data-rate of 1.25Gbps/1.063Gbps operation 1310nm FP laser and PIN photodetector for 20km transmission Compliant with SFP MSA and SFF-8472 with duplex LC receptacle Digital Diagnostic Monitoring: Internal Calibration or External Calibration Compatible with SONET OC-24-LR-1 Compatible with RoHS +3.3V single power supply Operating case temperature: Standard :0 to +70°C Extended : -20 to +85°C Industrial : -40 to +85°CApplications
Gigabit Ethernet Fiber Channel Switch to Switch interface Switched backplane applications Router/Server interface Other optical transmission systemsDescription
The SFP transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 20km transmission distance with SMF.
The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Absolute Maximum Ratings
Table1-Absolute Maximum Ratings
|
Parameter |
Symbol |
Min |
Max |
Unit |
|
Supply Voltage |
Vcc |
-0.5 |
4.5 |
V |
|
Storage Temperature |
Ts |
-40 |
+85 |
°C |
|
Operating Humidity |
- |
5 |
85 |
% |
Recommended Operating Conditions
Table2-Recommended Operating Conditions
|
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
||
|
Operating Case Temperature |
Standard |
Tc |
0 |
+70 |
°C |
||
|
-20 |
+85 |
||||||
|
Industrial |
-40 |
+85 |
°C |
||||
|
Power Supply Voltage |
Vcc |
3.13 |
3.3 |
3.47 |
V |
||
|
Power Supply Current |
Icc |
300 |
mA |
||||
|
Data Rate | |||||||
