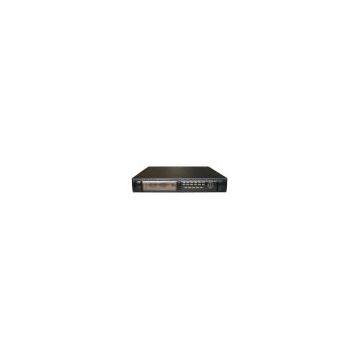

16Channel 3G CCTV H.264 DVR DVR9216GV

FOB Price

Negotiable / Piece

10 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	IQview		Place of Origin	China
Model Number	DVR9216GV

Model NO.	DVR9216GV
Video Compression	H.264
Video System	NTSC / PAL
Operation System	Linux
Video Input / Output	BNC 16-CH inputs / 1-CH outputs,1-CH VGA
Audio Compression	8kHz*16bit ADPCM
Audio Input / Output	RCA 4-CH inputs / 2-CH outputs
Display Frame Rate	PAL: 400fps / NTSC: 480fps
Playback Resolution	PAL: CIF(352x288), HD1(704x288), D1(704x576)
Playback Resolution	NTSC: CIF(352x240), HD1(704x240), D1(704x480)
Total Recording	PAL: 100fps@D1, 200fps@HD1, 400fps@CIF
Frame Rate	NTSC: 120fps@D1, 240fps@HD1, 480fps@CIF
Recording Mode	Always / schedule(motion & sensor triggered)
Recording Pack Time	15/30/45/60mins selectable
HDD Interface	2 SATA HDD rack, support up to 1TB HDD
Network Interface	RJ45, 10M/100M
Network Protocol	Support TCP/IP, UDP, DHCP, DNNS, PPPoE
Network Function	Support to live view with IE (Internet Explorer) & with Mobile phones
USB2.0	USB mouse, USB disk (backup, upgrade)
Playback	Local: playback 4 channels simultaneously
	Network: playback 1 channel simultaneously
Playback Mode	Normal play, fast forward, fast rewind, frame by frame
PTZ	Built-in RS-485 port, support PELCO-P & PELCO-D
Backup Methods	USB flash disk, USB disk, CD/DVD-RW & Network
Alarm Mode	Motion Detection, Sensor triggered, video loss, HDD error, HDD full
Senor & Alarm I/O	16 sensor inputs / 1 alarm output
Power Supply	DC 12V/5A (power adaptor included)
Power Consumption	10~15W
Working Temperature	-10°C to +40°C
Working Humidity	10% to 90%
Dimension	431 x 395 x 72.8mm (W x D x H)
