Home > Products > Standalone DVR > DVR9216HV 16Channel 3G CCTV DVR with HDMI

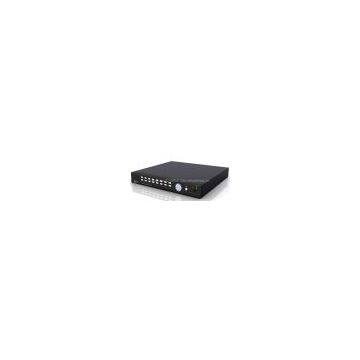

DVR9216HV 16Channel 3G CCTV DVR with HDMI
Negotiable
/ Piece
5 Pieces(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | IQview | Place of Origin | China | |
| Model Number | DVR9216HV |
Product Description
H.264 video compression
ADPCM audio compression format
HEXAPLEX operation – Record, Live view, Playback, Backup, Network Control & Mobile Phone Monitoring
Real-time monitoring for all channels @ D1
D1, HD1, CIF video recording resolution adjustable
HDMI output optional
Email notifications
Remote access via IE&Client software&CMS
Mobile Phone view based on Symbian S60 3rd, Symbian S60 5th, Windows Mobile, iPhone, Blackberry & Android
| Video Compression | H.264 | |
| Video System | NTSC / PAL | |
| Operation System | Linux | |
| Input / Output | Video | BNC: 16-ch input / BNC: 2-ch output |
| Audio | BNC :16-ch input / BNC: 2-ch output | |
| Display | Resolution | NTSC: 704 x 480 / PAL: 704 x 576 (D1) |
| Frame Rate | NTSC: 480fps / PAL: 400fps (shared by 8 cameras) | |
| Record | Resolution | NTSC: CIF(352x240) / HD1(704x240) / D1(704x480) |
| PAL: CIF(352x288) / HD1(704x288) / D1(704x576) | ||
| Frame Rate | NTSC: 120fps-D1 / 240fps-HD1 / 480fps-CIF (shared by 16 cameras) | |
| PAL: 100fps-D1 / 200fps-HD1 / 400fps-CIF (shared by 16 cameras) | ||
| Feature | Display | Single / Quad / Nine channels / Sixteen channels / PIP / S.E.Q. |
| Recording | Best / Good / Normal | |
| Record Modes | Schedule / Motion Detection / Sensor Triggered / Remote Recording | |
| HDD | Interface | 2*SATA Fixed HDD |
| capability | SATA up to 2TB each | |
| Playback Search | Time & Date / Event List | |
| USB Interface | USB 2.0 for Mouse and File Backup / Upgrade | |
| PTZ Control | Built-in RS-485 / support PELCO-P & PELCO-D | |
| Sensor & Alarm | 16-ch sensor input / 1-ch alarm output | |
| Network Interface | RJ45, 10M/100M | |
| Network Protocol | Support TCP/IP, UDP, DHCP, DNNS, PPPoE | |
| Network Function | Support to live view with IE (Internet Explorer) & with Mobile phone | |
| Backup | AVI file via USB flash / Removable HDD USB disk / USB CD/DVD-RW & Network | |
| HDMI Interface | HDMI Output:1920*1080 optional | |
| Playback Mode | Normal Play / Fast Forward / Fast Rewind / Frame by Frame | |
| Recording Pack Time | 15/30/45/60mins Selectable | |
| IR Remote Control | Included | |
| Mouse | Included | |
| Power Supply | DC12V / 5A | |
| VGA | Included | |
| CD/DVD-RW | Optional | |
| Dimension | 431×395×73mm | |
