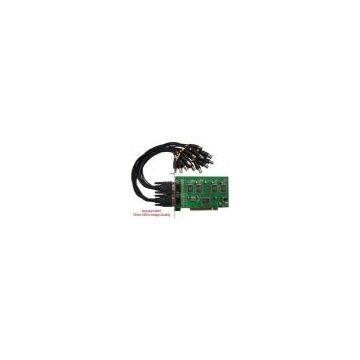

DVR-10416 16Channel DVR card

Features
High speed network transmission
High Image quality
Easy to installation and use GUI (Graphical User Interface)
Free Software upgradeable
Specifications

Input	16 CH
Image compression	H.264 optimized (high recording definition, especially when  there is intense movement)
Video total frame rate	100fps in PAL, 120 fps in NTSC, and each channel is allotted evenly  among the total resources.
Display resolution	640 X 480, 352 X 288, 320 X 240
Recording resolution	640 X 480, 352 X 288, 320 X 240
Compression ratio	30-150M/C/H
Network protocol	TCP/IP
Operating System	Windows2000/XP/Vista

Key functions
1) 4ch real time or 5-16ch non real time monitoring
2) Each channel Image color can be adjusted independently by software
3) Support insert 2 cards in the same PC at most, form 16-32 channel monitoring, and can also support mix inserting Ether10104 & ETHER10416, to form 20 channel monitoring
4) Multi screen monitoring, 1,4,9,16,25, 32 split Screen available, support rotate display
5) Support multi-hard disks cycle recording
6) Recording both flow trends yard and fix yard are available
7) Intelligent searching for historical DVR files, up to 16 screen playback
8) Multi-user's authority management setup, support to set up user's operating authority
9) Support motion detection touch off the video recording, sending E-mail (monitoring pictures in the enclosure), sending alarm by phone, and by sound.
10) Setting up motion detection area discretionarily, the sensitivity is adjustable
11) Through IE realize such perfect network management functions as remote spot monitoring, remote historical playback, remote spot video recording, remote historical video recording, etc
12) Support Intranet IP to remote monitoring
13) Support one IE remote monitors several DVR of different IP.
14) Support one IE remote monitors several different DVR within the sameIP.
15) Support the watermark of the characters and time, the particular format of video files prevent being edited, the security is high.
16)   The video file supports electron enlarge, taking pictures and instant printand exe format back up.
17) Support local and remote PTZ control
