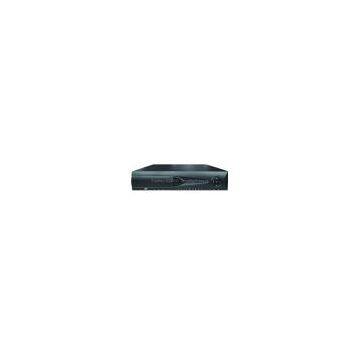

16Channel Full D1 DVR with 3G

FOB Price

Negotiable / Piece

5 Pieces(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	IQview		Place of Origin	China
Model Number	DVR5016H

Product Description

H.264 main profile compression
400fps(PAL) recording for D1
1~16 channel real time playback in D1

Support:English,French,Portugueses,Russian,Italian,S-Chinese,T-Chinese,Spanish,Thai,Greek,Japanese,German,Polish,Finnish,Hungarian and Turkish.
Support smart mobile and network real time remotely monitoring,such as iPhone,Blackberry,Google,Nokia and windows mobile.
Support DVD-RW installed inside the DVR

System	Model	DVR5016H
	Main Processor	High performance embedded microprocessor
	Operating System	Embedded LINUX
	System Resources	Pentaplex function:live,recording,playback,backup & remote access
	User Interface	GUI,on-screen menu tips,1/4/8/9/16
	Control Device	Front panel,USB mouse,IR remote control
Video	Video Standards	PAL625 line,50 f/s;NTSC525 line,60 f/s
	Video Compression	H.264 main profile
	Video Recording	D1:PAL(704x576) 1f/s-25f/s; NTSC(704x480) 1f/s-30f/s(real time)
	Playback	D1:PAL(704x576) 1f/s-25f/s; NTSC(704x480) 1f/s-30f/s(real time)
	Record capacity	400/480fps (D1)
	Motion Detection	Zones:396(22*18)detection zones,Sensitivity:1-6(6 is highest)Trigger recording,PTZ movement,tour,alarm,e-mail,snapshot & FTP
	TV Output Audjustment	Adjust TV output color & display zone
Audio	Audio Conpression	G711A
Audio	Bidrectional Talk	Support
Record &Playback	Recording Mode	Manual>Alarm>Video Detection>Continuous
	Playback	1/8/16 channel playback simultaneously,Pause,stop,rewind,fast play, slow play,next file,previous file,repeat,shuffle,backup selection
	Search Mode	Time/Date,Alarm,Motion Detection & exact search(accourate to second)
Storage &Backup	Space Occupation	Audio28.8MB/H Video25-450MB/H
	HDD Management	Hard disk hibernation technology,HDD faoulty alarm & Raid(Redundancy)
	Backup Mode	Network download/Flash stick/DVD-RW/movable HDD
Interface	Video Input	16 channel,BNC,1.0Vp-p,75Ω
	Video Output	2 channel TV output BNC,1.0Vp-p,75Ω,1 VGA output
	Loop output	16 channel
	Audio Input	16 channel ,RCA 200-2800mV,30KΩ
	Audio Output	1 channel ,RCA, 200-3000mV,5KΩ
	Alarm Input	16 channel
	Relay Output	4 channel
	Net Interface	RJ-45 (10M/100M/1000M)
	PTZ Control	1 RS485,1 RS232
	USB Interface	USB 2.0 x 2
	Hard Disk	4 SATA ports(max 4x 2048G) ; 8 SATA ports is optional
Environmental	Power Supply	12V / 7A,standard ATX power
	Power Consumption	< 20W(not include Hard disk)
	Working Temperature	0-55
	Working Humidity	10%-90%
	Atmosphere Pressure	86kpa-106kpa
	Dimension	44040094mm
