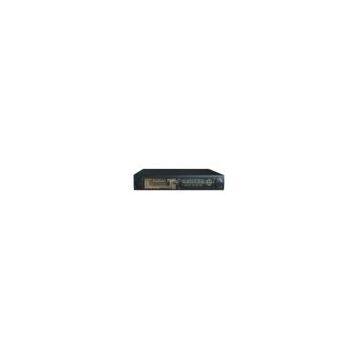

1080P HDMI 16CH 960H CCTV DVR
Negotiable
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | IQVIEW | Place of Origin | China | |
| Model Number | DVR9116H |
Product Description
Features
Support 960H display/recording resolution 960*576,better than D1 resolution
Support realtime 4Ch D1 +12Ch CIF
Support CVBS,VGA and HDMI output,support high definition 1080P realtime display
Mobile Phone view based on Symbian, Windows Mobile, iPhone, Blackberry & Android
HEXAPLEX operation – Record, Live view, Playback, Backup, Network Control & Mobile Phone Monitoring
Support digital zoom,support playback control bar and to playback the recorded video of any time
Support network remote monitoring,remote settings and management,remote updating
Specifications
| Model NO. | DVR9116H | |
| Video Compression | H.264 | |
| Video System | NTSC/PAL | |
| Operation System | Linux(embedded) | |
| Video-input /output | 16CH input /1CH output(BNC) | |
| Audio input /output | 4CH input /1CH output(RCA) | |
| Display | Resolution |
PAL:960×576@25fps(each ch,Frame) NTSC:960×480@30fps(each ch,Frame) |
| Feature | single/ Quad/Nine/Sixteen/S.E.Q. | |
|
Record (only record) |
Resolution |
PAL:D1 mode 360×288(CIF),720x288(HD1),720x576(D1) 960H mode 480×288(WCIF),960×288(WHD1),960×576(WD1) NTSC:D1 mode 360×240(CIF),720x240(HD1),720x480(D1) 960H mode 480×240(WCIF),960×240(WHD1),960×480(WD1) |
| Speed |
PAL:CIF /WCIF :25fps ,HD1/D1:12fps ,WHD1/WD1:9fps NTSC:CIF /WCIF:30fps ,HD1/D1:15fps, WHD1/WD1:11fps |
|
| Recording Mode | Continuous/Manual/Motion detect /Sensor/Alarm recording | |
| Playback Channel | 1/4/9/16ch | |
| Sensor & Alarm I/O | 8ch sensor input,1 channel alarm out | |
| Network | Lan, DHCP, Dynamic IP and DDNS | |
| HDD interface | 2 SATA HDDs, up to 4TB | |
| Multiplex Operation | live display, record, playback, backup and network | |
| USB | 2xUSB(for mouse and backup/upgrade) | |
| PTZ Control | Built in RS485, support Pelco-P & Pelco-D | |
| Mobile Surveillance |
Support Mobile Phones based on Windows mobile, Symbian, iPhone, Blackberry and Android operation system |
|
| VGA | 800*600,1024*768,1280*1024,1440*900,1920*1080 | |
| HDMI | 1080P | |
| Power Supply | DC 12V 5A | |
| Dimension(wxDxH) | 431X394X93.8mm |
