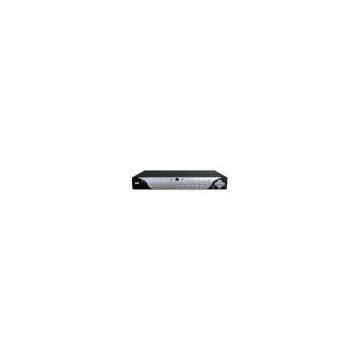

4Channel H.264 CCTV DVR with 3G DVR9004BV
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | IQview | Place of Origin | China | |
| Model Number | DVR9004BV |
Product Description
Features:
H.264 video compression
Embedded Linux
HEXAPLEX operation – Record, Live view, Playback, Backup, Network Control & Mobile Phone Monitoring
4 channels video inputs
Realtime Full D1 display for all channels
D1, HD1, CIF recording resolution adjustable
Support Quad, Single channel & Auto Sequence display for live view
Frame rate adjustable for each channel
4 channels audio inputs & 2 channels audio outputs
Support motion detection
Email notifications
Mobile Phone view based on Symbian S60 3rd, Symbian S60 5th, Windows Mobile, iPhone, Blackberry & Android
Graphics & Windows OSD interface
Support CMS monitoring
USB backup
VGA included
System self-recovery with recording & settings memory after power restores
Digital zoom
HDD can be overwritten by days between 1 and 60 days
Specifications
| Model NO. | DVR9004BV |
| Video Compression | H.264 |
| Video System | NTSC / PAL |
| Operation System | Linux |
| Video Input / Output | BNC 4-ch inputs / 2-ch outputs,1-ch VGA |
| Audio Compression | 8kHz*16bit ADPCM |
| Audio Input / Output | RCA 4-ch input / 2-ch output |
| Display Frame Rate | PAL: 100fps / NTSC: 120fps |
| Playback Resolution |
PAL: CIF(352x288), HD1(704x288), D1(704x576) NTSC: CIF(352x240), HD1(704x240), D1(704x480) |
| Total Recording Frame Rate |
PAL: 25fps@D1, 50fps@HD1, 100fps@CIF NTSC: 30fps@D1, 60fps@HD1, 120fps@CIF |
| Recording Mode | Always / schedule(motion triggered) |
| Recording Pack Time | 15/30/45/60mins selectable |
| HDD Interface | 1 fixed SATA HDD rack, support up to 2TB HDD |
| Network Interface | RJ45, 10M/100M |
| Network Protocol | Support TCP/IP, UDP, DHCP, DNNS, PPPoE |
| Network Function | Support to live view with IE (Internet Explorer) & with Mobile phones |
| USB2.0 | USB mouse, USB disk (backup, upgrade) |
| Playback |
Local: playback 4 channels simultaneously Network: playback 1 channel simultaneously |
| Playback Mode | Normal play, fast forward, fast rewind, frame by frame |
| PTZ | Built-in RS-485 port, support PELCO-P & PELCO-D |
| Backup Methods | USB flash disk, USB disk, USB CD/DVD-RW & Network |
| Alarm Mode | Motion Detection, Sensor triggered, video loss, HDD error, HDD full |
| Senor & Alarm I/O | N/A |
| Power Supply | DC 12V/3A (power adaptor included) |
| Power Consumption | 10~15W |
| Working Temperature | -10°C to +40°C |
| Working Humidity | 10% to 90% |
| Dimension | 300 x 220 x 47mm (W x D x H) |
