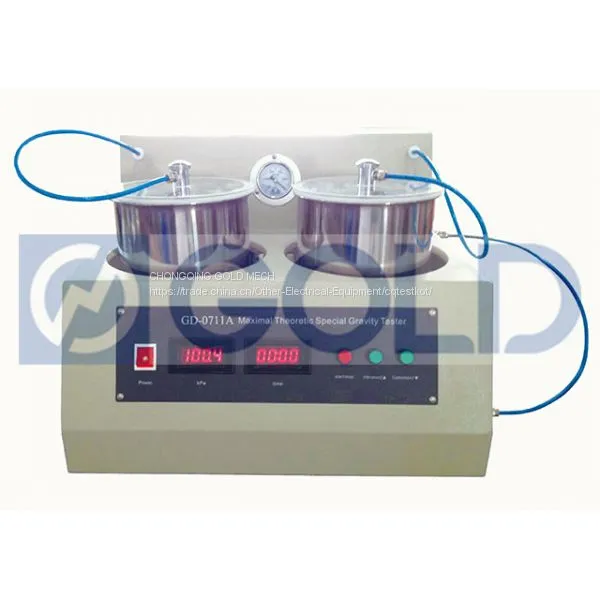

GD-0711A Bituminous Mixtures Theoretical Maximum Specific Gravity Tester

Chongqing Gold Mech
GD-0711A Bituminous Mixtures Theoretical Maximum Specific Gravity Tester thumbnail-1
GD-0711A Bituminous Mixtures Theoretical Maximum Specific Gravity Tester photo-1
US$ 1 - 1 MOQ: 1 Bag
Key Specifications
Get Latest Price
Brand Name:
GOLD
Place of Origin:
China
Model Number:
GD-0711A
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name GOLD
Place of Origin China
Model Number GD-0711A

Introduction:

 This instrument is designed and made as per T 0711-2011 Standard Test Method for Theoretical Maximum Specific Gravity of Bituminous Mixtures (Vacuum pr℃ess) in JTG E20-2011 Standard Test Methods for Bitumen and Bituminous Mixtures for Highway Engineering. It is suitable to determine the theoretical maximum specific gravity of bituminous mixtures by vacuum pr℃ess. It is used to design the ratio of bituminous mixtures, survey the road condition or calculate the void ratio and compactness of road construction. It is not available to determine the lacunose bituminous mixtures which water absorption over 3%.


I. Main technical features:

1. It adopts single chip machine technology to vacuumize, shake, fill air and relieve pressure automatically.

2. Equipped with a high-accuracy absolute pressure sensor, the negative pressure can reach 3.7 kPa±0.3 kPa.

3. The working status of the vacuum pump can be reflected by a vacuum meter.

4.It equips a water buffer device to prevent the water in the negative pressure container from flowing into can determine two samples at the same time. Test efficiency is high. The structure is reasonably designed. It is easy to use.


II. Main technical specifications:

 Power supply AC (220±10%) V, 50Hz.
 Volume of vessel 4000ml×2
 Power of vacuum pump160W
Negative pressure 3.7 kPa（27.75mmHg）.
Allowable bias is ±0.3 kPa.
Power of shaking machine30W
Dimension 510mm×520mm×380mm

Product Tags: Maximum relative density meter , Relative density meter , Asphalt Testing Equipment
